APPENDIX 2 FUNCTION FOR OPERATING

THE PMC-UM WITH RAM

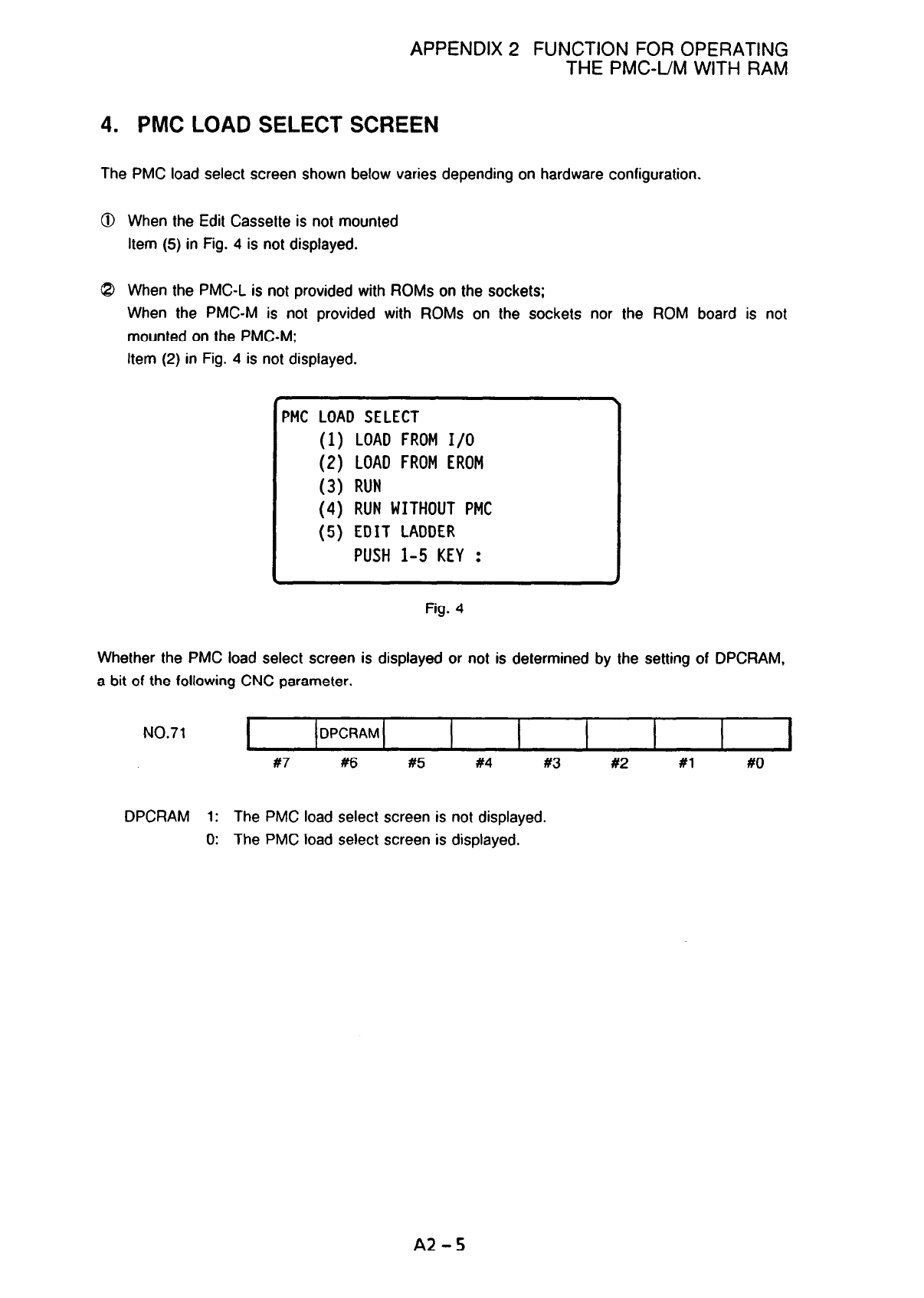

4. PMC LOAD SELECT SCREEN

The PMC load select screen shown below varies depending on hardware configuration.

When the Edit Cassette is not mounted

Item (5) in Fig. 4 is not displayed.

When the PMC-L is not provided with ROMs on the sockets;

When the PMC-M is not provided with ROMs on the sockets nor the ROM board is not

mounted on the PMC-M;

Item (2) in Fig. 4 is not displayed.

PMC LOAD SELECT

( 1) LOAD FROM I/O

(2) LOAD FROM EROM

(3) RUN

(4) RUN WITHOUT PMC

(5) EDIT LADDER

PUSH l-5 KEY :

Fig. 4

Whether the PMC load select screen is displayed or not is determined by the setting of DPCRAM,

a bit of the following CNC parameter.

NO.71

DPCRAM

#6 #5

#3 #2

DPCRAM 1: The PMC load select screen is not displayed.

0: The PMC load select screen is displayed.

A2-5
