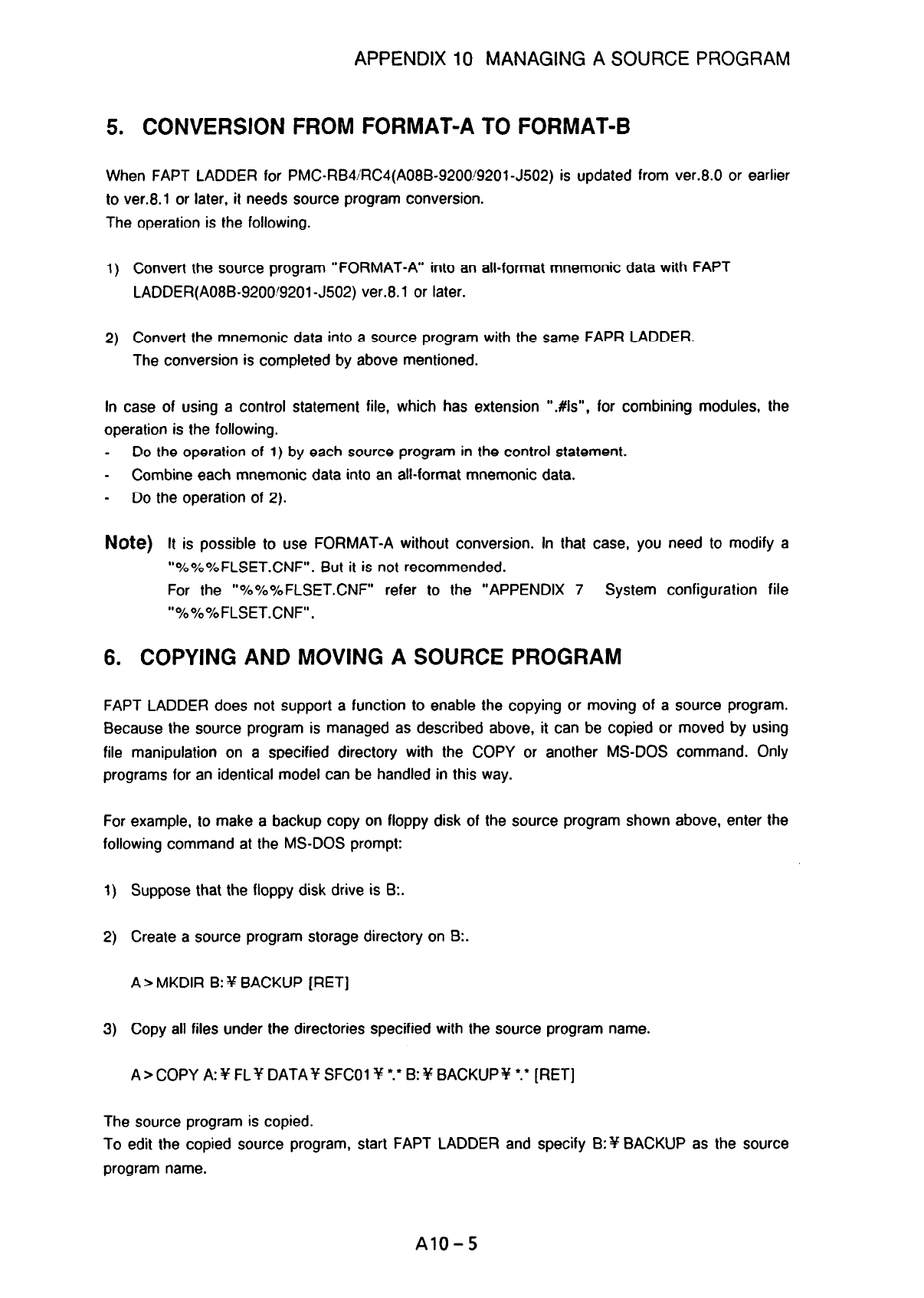

APPENDIX 10 MANAGING A SOURCE PROGRAM

5. CONVERSION FROM FORMAT-A TO FORMAT-B

When FAPT LADDER for PMC-RB4iRC4(A08B-9200!9201-J502) is updated from ver.8.0 or earlier

to ver.8.1 or later, it needs source program conversion.

The operation is the following.

1) Convert the source program “FORMAT-A” into an all-format mnemonic data with FAPT

LADDER(A08B-9200!9201-J502) ver.8.1 or later.

2) Convert the mnemonic data into a source program with the same FAPR LADDER.

The conversion is completed by above mentioned.

In case of using a control statement file, which has extension

“.#I.$‘, for combining modules, the

operation is the following.

- Do the operation of 1) by each source program in the control statement.

- Combine each mnemonic data into an all-format mnemonic data.

- Do the operation of 2).

Note) It is possible to use FORMAT-A without conversion. In that case, you need to modify a

“%%%FLSET.CNF”. But it is not recommended.

For the

“%%%FLSET.CNF” refer to the “APPENDIX 7 System configuration file

“%%%FLSET.CNF”.

6. COPYING AND MOVING A SOURCE PROGRAM

FAPT LADDER does not support a function to enable the copying or moving of a source program.

Because the source program is managed as described above, it can be copied or moved by using

file manipulation on a specified directory with the COPY or another MS-DOS command. Only

programs for an identical model can be handled in this way.

For example, to make a backup copy on floppy disk of the source program shown above, enter the

following command at the MS-DOS prompt:

1) Suppose that the floppy disk drive is B:.

2) Create a source program storage directory on B:.

A > MKDIR B: +r BACKUP [RET]

3) Copy all files under the directories specified with the source program name.

The source program is copied.

To edit the copied source program, start FAPT LADDER and specify B:Y BACKUP as the source

program name.

A10-5
