FAPT Ladder for PC Operators manual Page 271

Operators manual

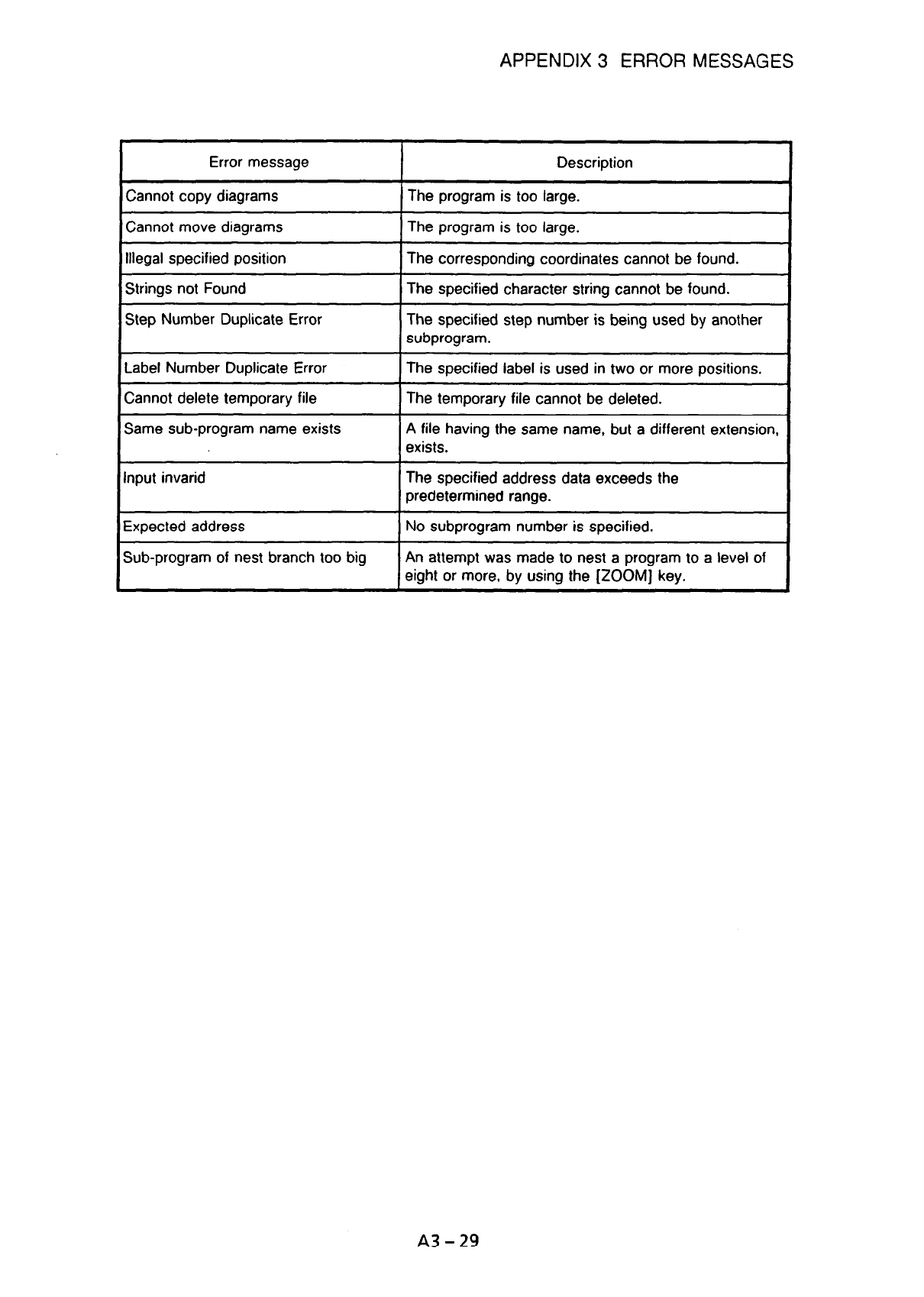

APPENDIX 3 ERROR MESSAGES
Error message
Description
Cannot copy diagrams
The program is too large.
Cannot move diagrams
Illegal specified position
The program is too large.
The corresponding coordinates cannot be found.
Strings not Found
Step Number Duplicate Error
The specified character string cannot be found.
The specified step number is being used by another
subprogram.
Label Number Duplicate Error
Cannot delete temporary file
Same sub-program name exists
The specified label is used in two or more positions.
The temporary file cannot be deleted.
A file having the same name, but a different extension,
exists.
I
Input invarid
The specified address data exceeds the
predetermined range.
Expected address
Sub-program of nest branch too big
No subprogram number is specified.
An attempt was made to nest a program to a level of
eight or more, by using the [ZOOM] key.
A3-29
