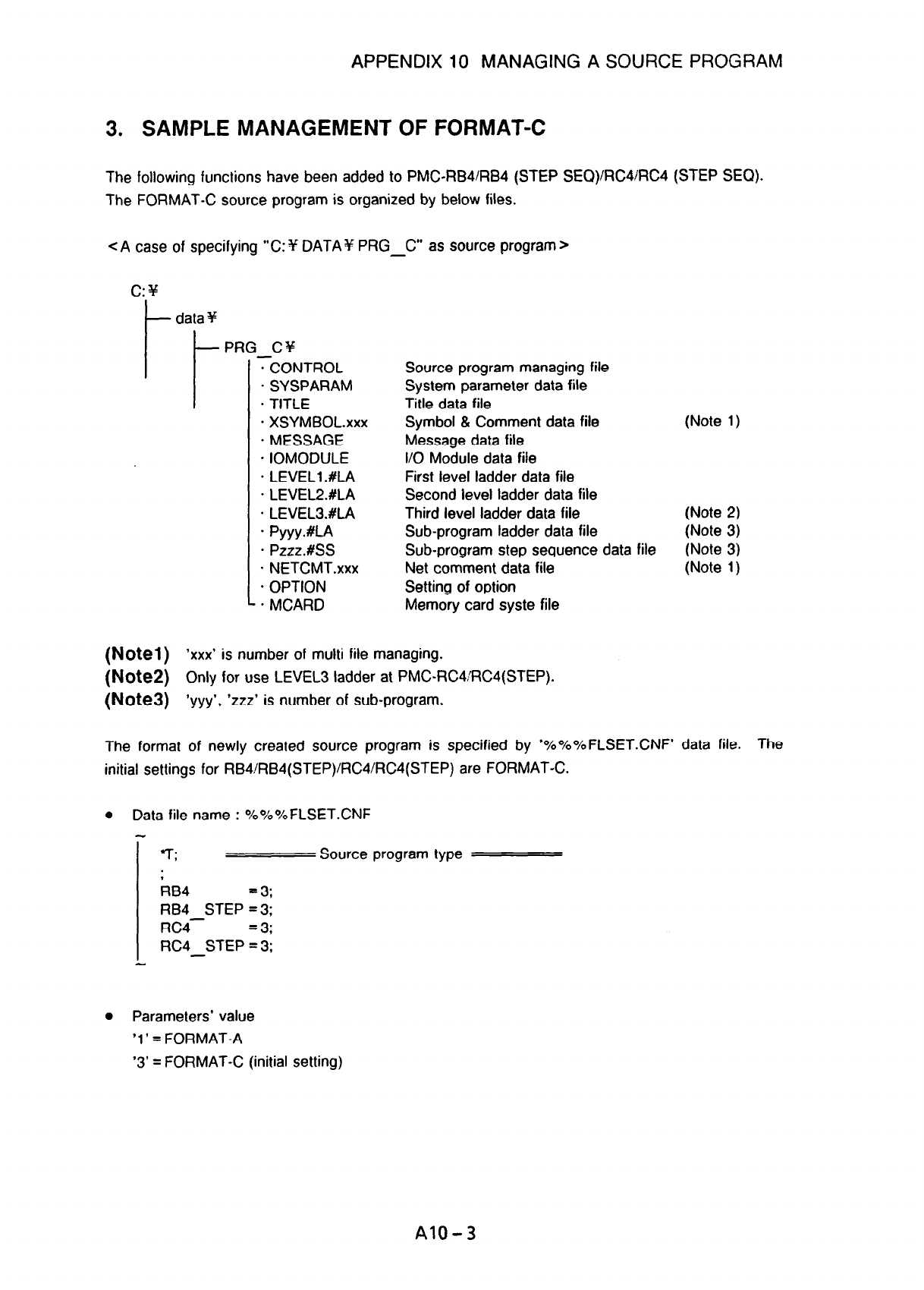

APPENDIX 10 MANAGING A SOURCE PROGRAM

3. SAMPLE MANAGEMENT OF FORMAT-C

The following functions have been added to PMCRB4RB4 (STEP SEQRCWRC4 (STEP SEQ.

The FORMAT-C source program is organized by below files.

C:Y

data Y

PRG CY

-CONTROL

- SYSPARAM

* TITLE

- XSYMBOL.xxx

- MESSAGE

- IOMODULE

* LEVEL1 #LA

* LEVEL2.#LA

* LEVELWLA

* Pyyy.#LA

- Pzzz.#SS

. NETCMT.xxx

* OPTION

- * MCARD

Source program managing file

System parameter data file

Title data file

Symbol & Comment data file

Message data file

I/O Module data file

First level ladder data file

Second level ladder data file

Third level ladder data file

Sub-program ladder data file

Sub-program step sequence data file

Net comment data file

Setting of option

Memory card syste file

(Note 1)

(Note 2)

(Note 3)

(Note 1)

(Notel)

(Note2)

(Note3)

‘xxx’ is number of multi file managing.

Only for use LEVEL3 ladder at PMCRC4IRC4(STEP).

‘yyy’, ‘zzz’ is number of sub-program.

The format

of newly created source program is specified by ‘%%%FLSET.CNF data file. The

initial settings for RB4!RB4(STEP)/RC4/RC4(STEP) are FORMAT-C.

l Data file name : %%%FLSET.CNF

Source program type

kB4

RB4 STEP :3;

RC4- =3;

RC4_STEP = 3;

l Parameters’ value

‘1’ = FORMAT-A

‘3’ = FORMAT-C (initial setting)

A10-3
