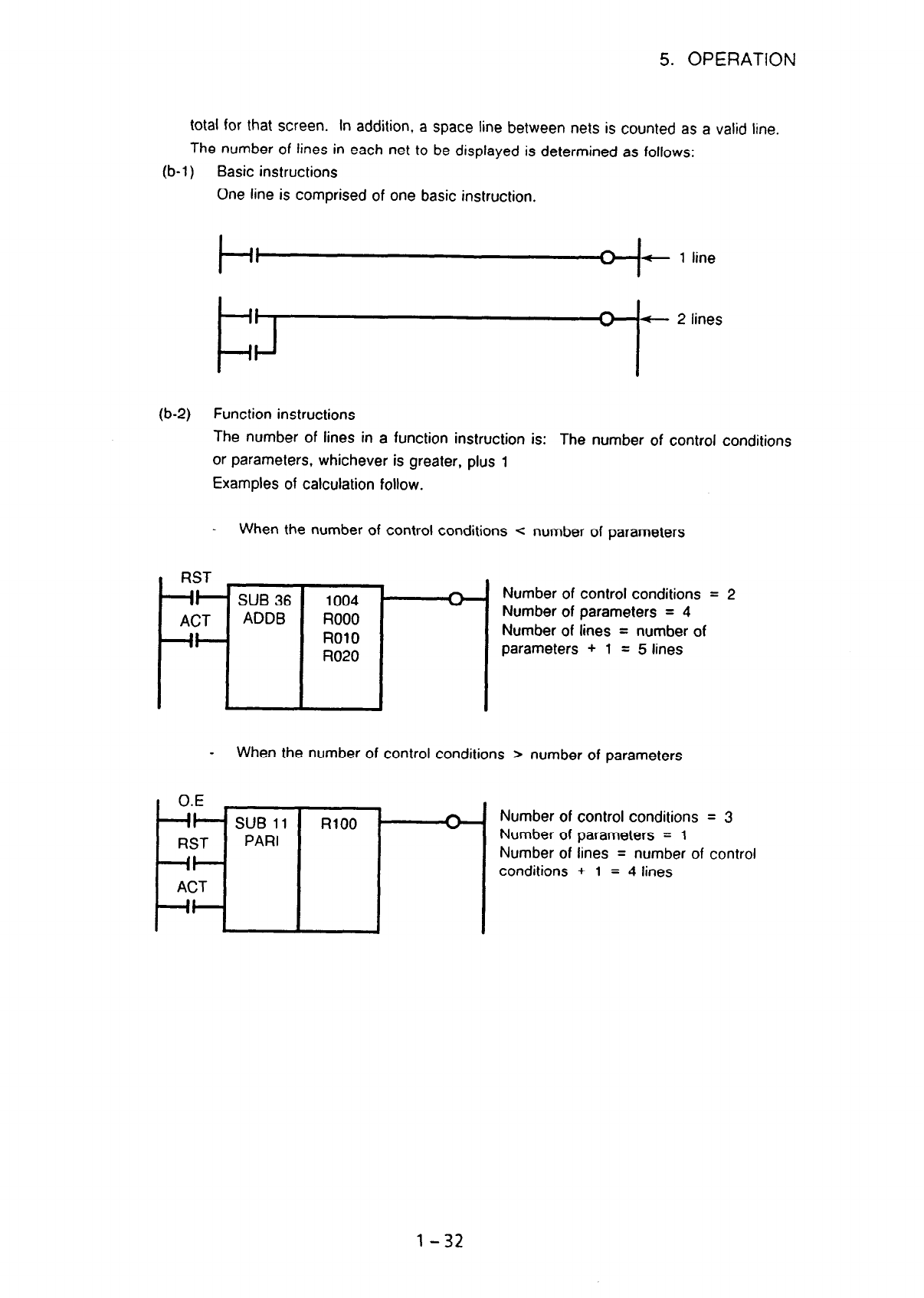

5. OPERATION

total for that screen. In addition, a space line between nets is counted as a valid line.

The number of lines in each net to be displayed is determined as follows:

(b-l) Basic instructions

One line is comprised of one basic instruction.

b-1- 1 line

L-I *lines

(b-2) Function instructions

The number of lines in a function instruction is: The number of control conditions

or parameters, whichever is greater, plus 1

Examples of calculation follow.

- When the number of control conditions < number of parameters

RST

Number of control conditions = 2

Number of parameters = 4

Number of lines = number of

parameters + 1 = 5 lines

- When the number of control conditions > number of parameters

RlOO

Number of control conditions = 3

Number of parameters = 1

Number of lines

= number of control

conditions + 1 = 4 lines

1-32
