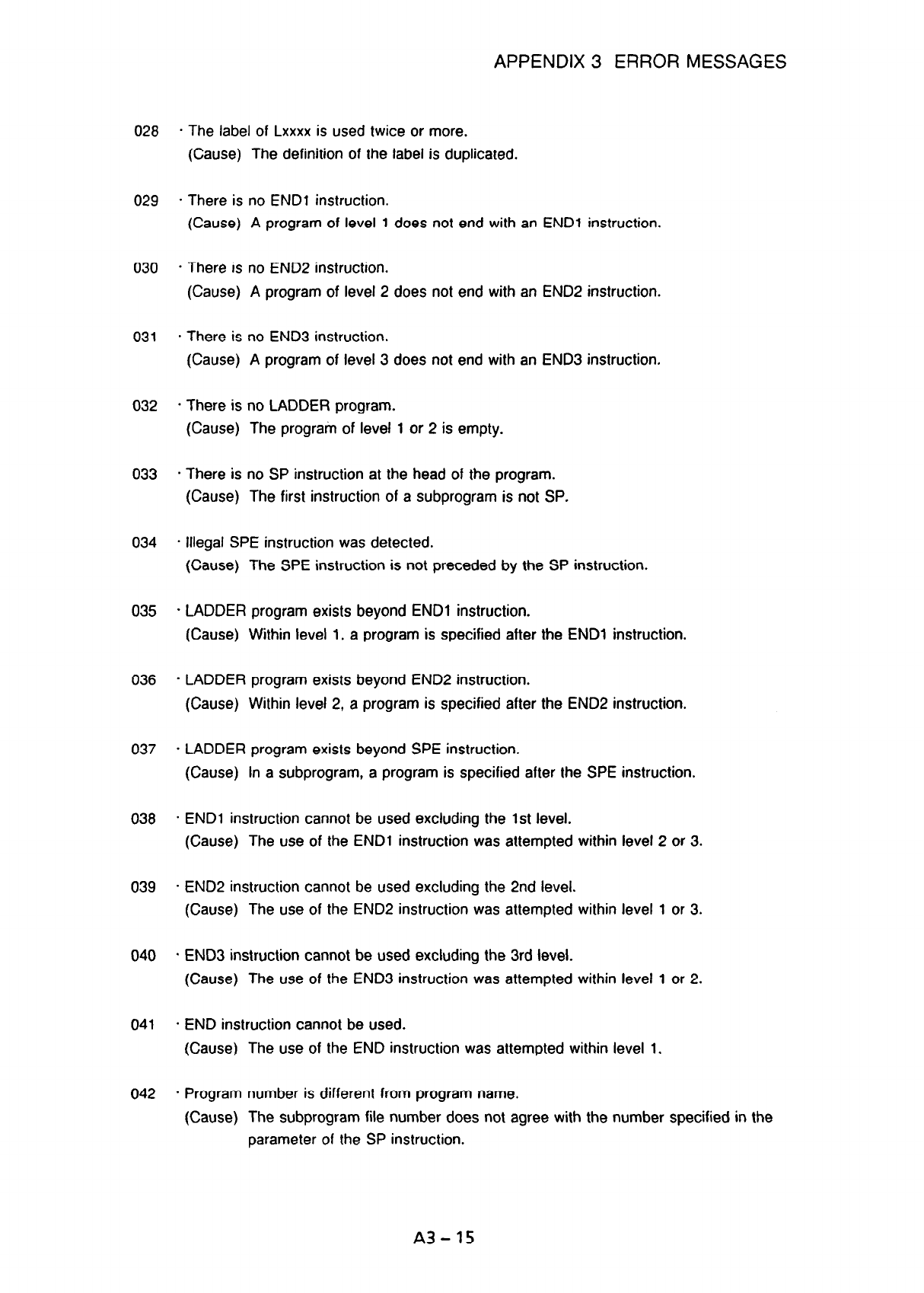

APPENDIX 3 ERROR MESSAGES

028

029

030

031

032

033

034

035

036

037

038

039

040

041

042

- The label of Lxxxx is used twice or more.

(Cause) The definition of the label is duplicated.

* There is no END1 instruction.

(Cause) A program of level 1 does not end with an END1 instruction.

* There is no END2 instruction.

(Cause) A program of level 2 does not end with an END2 instruction.

- There is no END3 instruction.

(Cause) A program of level 3 does not end with an END3 instruction.

* There is no LADDER program.

(Cause) The program of level 1 or 2 is empty.

* There is no SP instruction at the head of the program.

(Cause) The first instruction of a subprogram is not SP.

. Illegal SPE instruction was detected.

(Cause) The SPE instruction is not preceded by the SP instruction.

- LADDER program exists beyond END1 instruction.

(Cause) Within level 1, a program is specified after the END1 instruction.

- LADDER program exists beyond END2 instruction.

(Cause) Within level 2, a program is specified after the END2 instruction.

* LADDER program exists beyond SPE instruction.

(Cause) In a subprogram, a program is specified after the SPE instruction.

* END1 instruction cannot be used excluding the 1st level.

(Cause) The use of the END1 instruction was attempted within level 2 or 3.

. END2 instruction cannot be used excluding the 2nd level.

(Cause) The use of the END2 instruction was attempted within level 1 or 3.

* END3 instruction cannot be used excluding the 3rd level.

(Cause) The use of the END3 instruction was attempted within level 1 or 2.

* END instruction cannot be used.

(Cause) The use of the END instruction was attempted within level 1.

* Program number is different from program name.

(Cause) The subprogram file number does not agree with the number specified in the

parameter of the SP instruction.

A3-15
