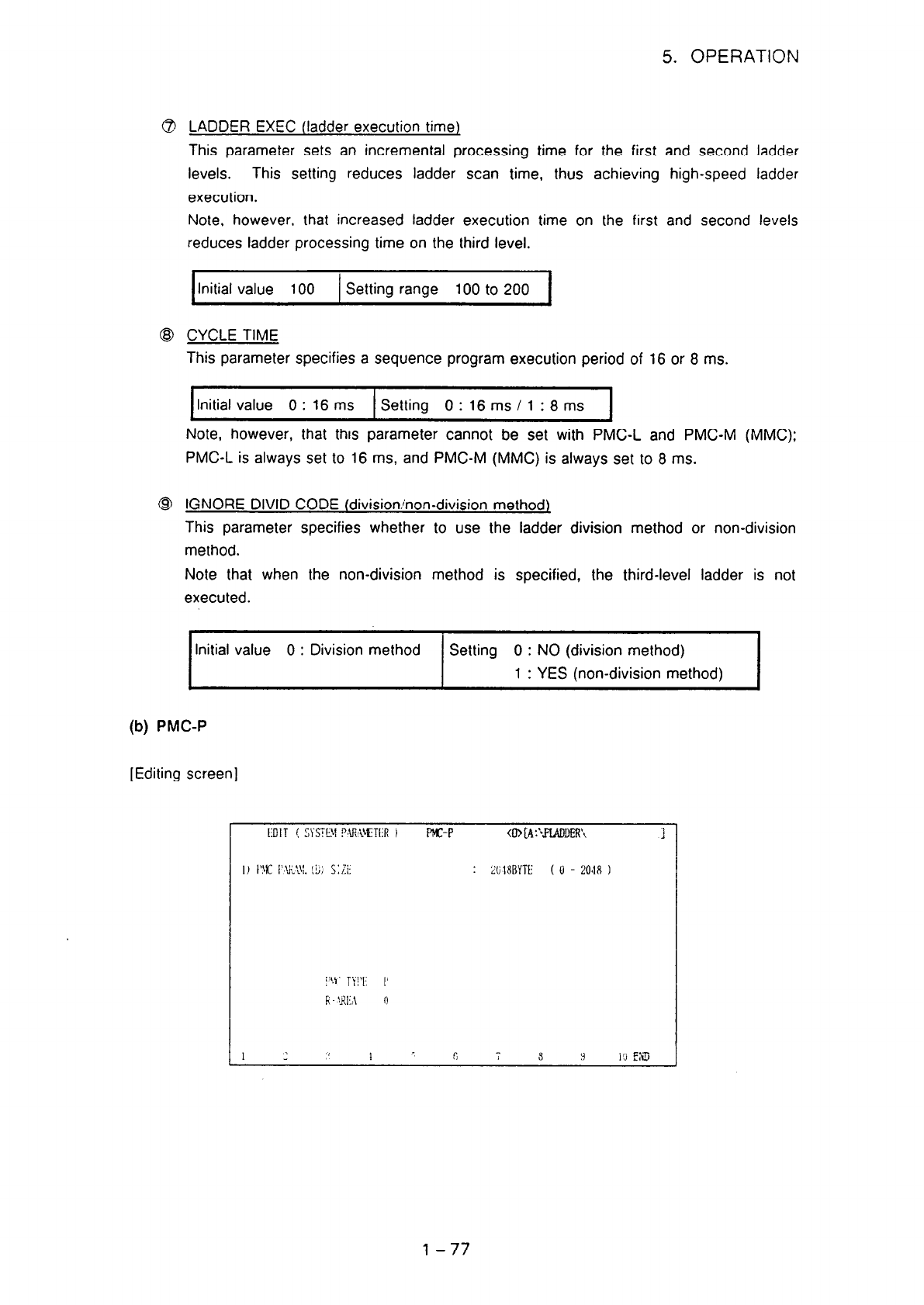

5. OPERATION

LADDER EXEC (ladder execution time)

This parameter sets an incremental processing time for the first and second ladder

levels.

This setting reduces ladder scan time, thus achieving high-speed ladder

execution.

Note, however, that increased ladder execution time on the first and second levels

reduces ladder processing time on the third level.

Initial value 100

Setting range 100 to 200

CYCLE TIME

This parameter specifies a sequence program execution period of 16 or 8 ms.

Initial value 0 : 16 ms

Setting 0: 16ms/l :8ms

Note, however, that this parameter cannot be set with PMC-L and PMC-M (MMC);

PMC-L is always set to 16 ms, and PMC-M (MMC) is always set to 8 ms.

IGNORE DIVID CODE (division/non-division method)

This parameter specifies whether to use the ladder division method or non-division

method.

Note that when the non-division method is specified, the third-level ladder is not

executed.

Initial value 0 : Division method

(b) PMC-P

[Editing screen]

Setting 0 : NO (division method)

1 : YES (non-division method)

l-77
