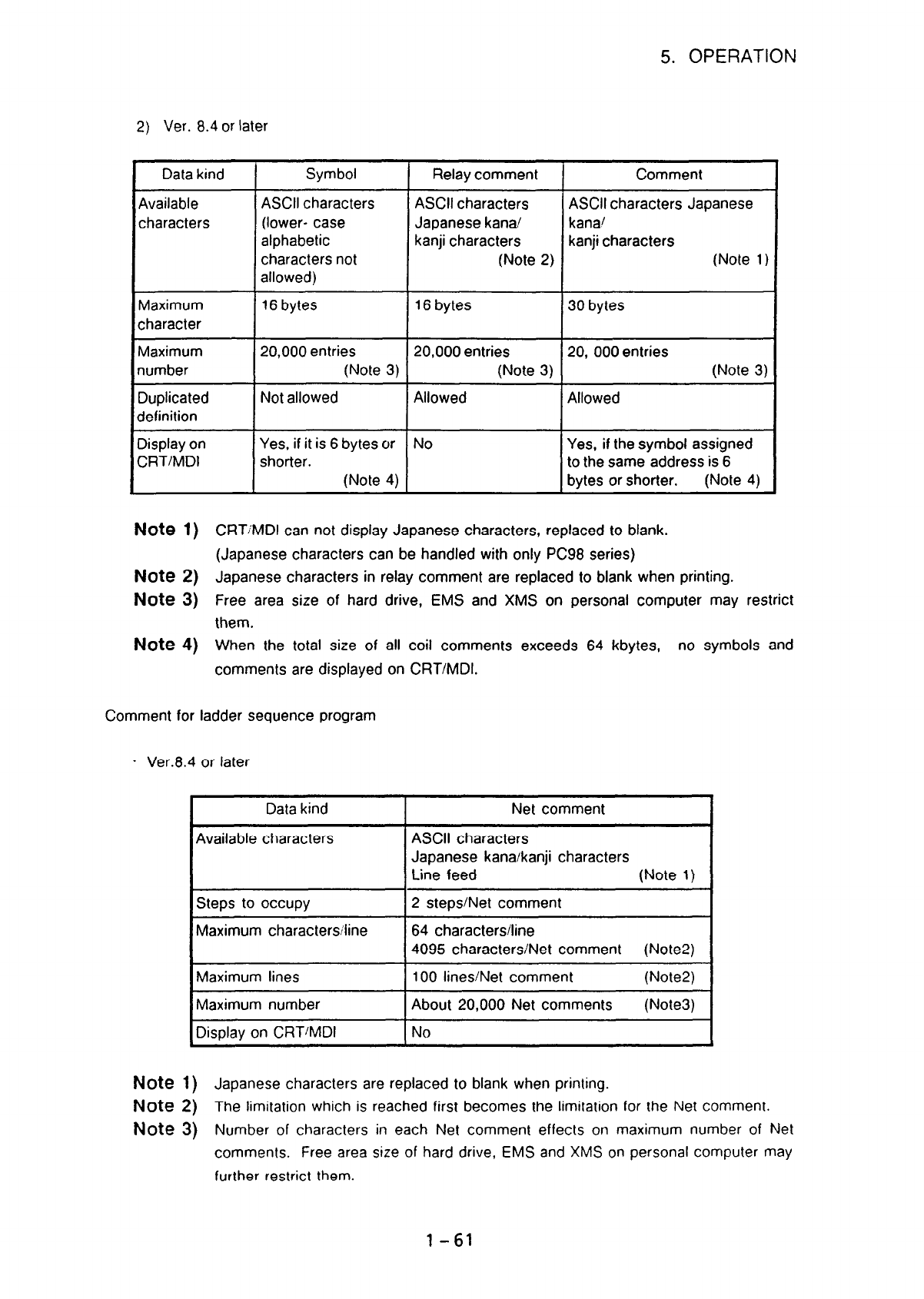

FAPT Ladder for PC Operators manual Page 68

Operators manual
5. OPERATION
2) Ver. 8.4 or later
Data kind
Available
characters
Maximum
character
Symbol
ASCII characters
(lower- case
alphabetic
characters not
allowed)
16 bytes
Relay comment
Comment
ASCII characters ASCII characters Japanese
Japanese kanal
kana/
kanji characters
kanji characters
(Note 2)
(Note 1)
16 bytes
30 bytes
Maximum
number
Duplicated
definition
20,000 entries
20,000 entries 20, 000 entries
(Note 3)
(Note 3)
(Note 3)
Not allowed Allowed
Allowed
Display on
CRT/MD1
Yes, if it is 6 bytes or No
Yes, if the symbol assigned
shorter.
to the same address is 6
(Note 4) bytes or shorter.
(Note 4)
Note 1) CRTiMDl can not display Japanese characters, replaced to blank.
(Japanese characters can be handled with only PC98 series)
Note 2) Japanese characters in relay comment are replaced to blank when printing.
Note 3) Free area size of hard drive, EMS and XMS on personal computer may restrict
them.
Note 4) When the total size of all coil comments exceeds 64 kbytes, no symbols and
comments are displayed on CRTIMDI.
Comment for ladder sequence program
* Ver.8.4 or later
I
Data kind Net comment
Available characters
ASCII characters
Japanese kana/kanji characters
Line feed
(Note 1)
Steps to occupy
I
2 steps/Net comment
Maximum charactersiline
Maximum lines
Maximum number
64 charactersiline
4095 characters/Net comment
(Note2)
100 lines/Net comment (Note2)
About 20,000 Net comments
(Note3)
Display on CRT/MD1
No
Note 1) Japanese characters are replaced to blank when printing.
Note 2) The limitation which is reached first becomes the limitation for the Net comment.
Note 3) Number of characters in each Net comment effects on maximum number of Net
comments. Free area size of hard drive, EMS and XMS on personal computer may
further restrict them.
