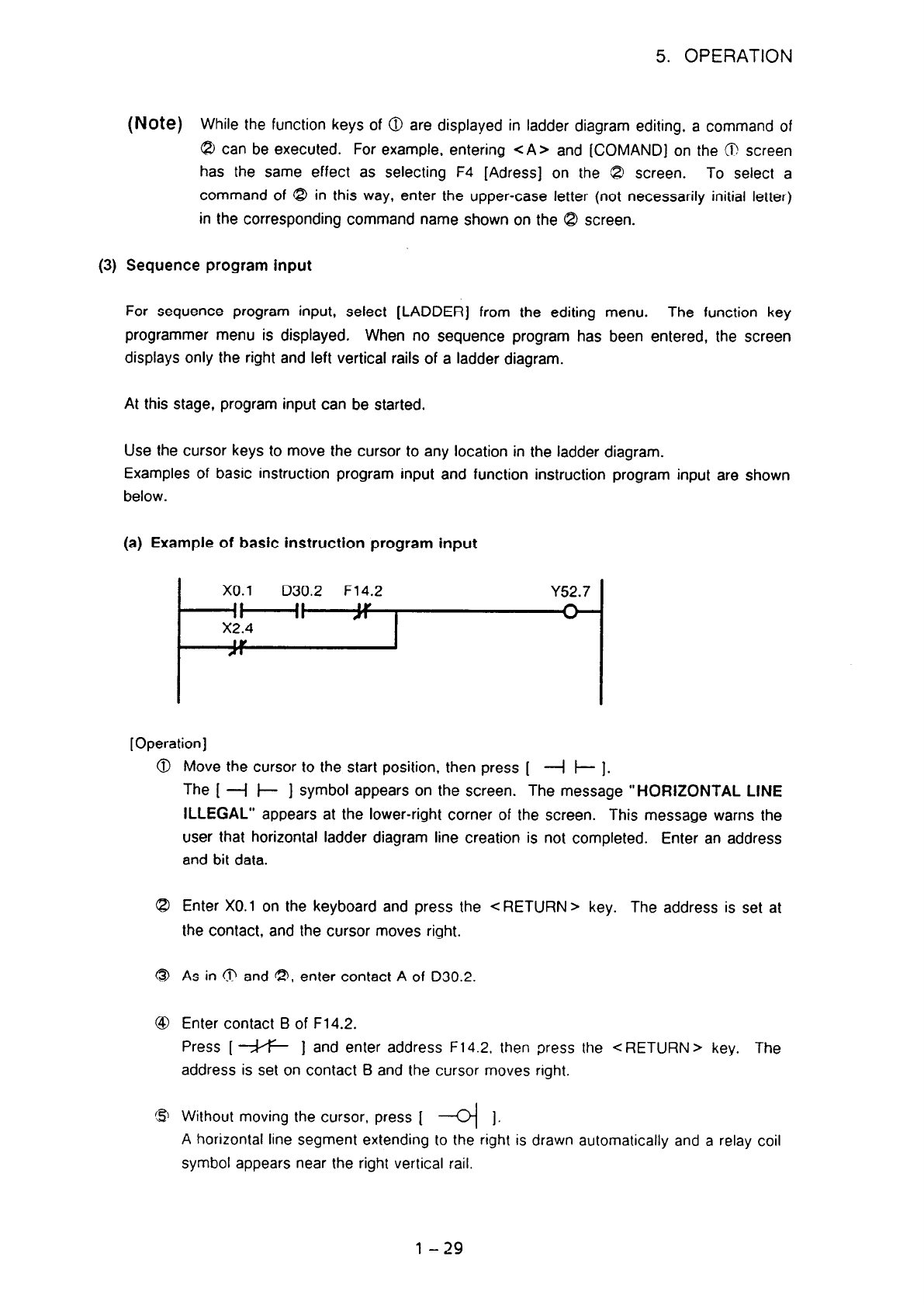

FAPT Ladder for PC Operators manual Page 36

Operators manual
5. OPERATION
(3)
(Note)
While the function keys of @ are displayed in ladder diagram editing, a command of
Q can be executed. For example, entering <A > and [COMAND] on the @ screen
has the same effect as selecting F4 [Adress] on the .a screen. To select a
command of 8 in this way, enter the upper-case letter (not necessarily initial letter)
in the corresponding command name shown on the 8 screen.
Sequence program input
For sequence program input, select [LADDER] from the editing menu. The function key
programmer menu is displayed. When no sequence program has been entered, the screen
displays only the right and left vertical rails of a ladder diagram.
At this stage, program input can be started.
Use the cursor keys to move the cursor to any location in the ladder diagram.
Examples of basic instruction program input and function instruction program input are shown
below.
(a) Example of basic instruction program input
I
x0.1
D30.2 F14.2 Y52.7
3
[Operation ]
Move the cursor to the start position, then press [ -I I- 1.
The [ -I I- ] symbol appears on the screen. The message “HORIZONTAL LINE
ILLEGAL” appears at the lower-right corner of the screen. This message warns the
user that horizontal ladder diagram line creation is not completed. Enter an address
and bit data.
Enter X0.1 on the keyboard and press the < RETURN > key. The address is set at
the contact, and the cursor moves right.
As in @ and 8, enter contact A of 030.2.
Enter contact B of F14.2.
Press [ e ] and enter address F14.2. then press the <RETURN> key. The
address is set on contact B and the cursor moves right.
Without moving the cursor, press [ 4 1.
A horizontal line segment extending to the right is drawn automatically and a relay coil
symbol appears near the right vertical rail.
l-29
