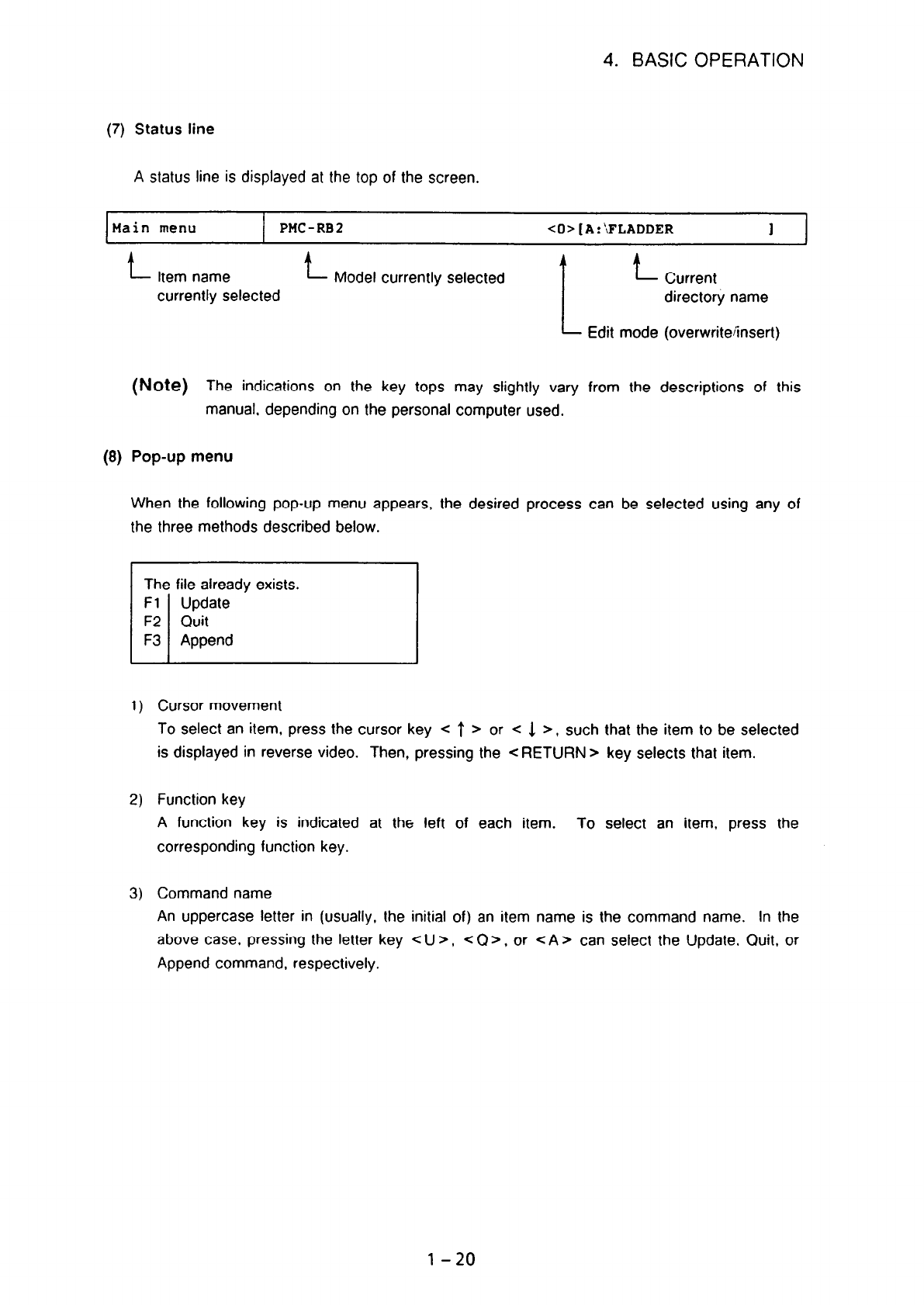

4. BASIC OPERATION

(7) Status line

A status line is displayed at the top of the screen.

Main menu

PMC-RB2

<O>[A::FLADDER

(8)

Item name

Model currently selected

currently selected

Current

directory name

Edit mode (overwritefinsert)

(Note) The indications on the key tops may slightly vary from the descriptions of this

manual. depending on the personal computer used.

Pop-up menu

When the following pop-up menu appears, the desired process

the three methods described below.

can be selected using any of

The file already exists.

Fl Update

F2 Quit

F3 Append

Cursor movement

To select an item, press the cursor key < ? > or c 1 >, such that the item to be selected

is displayed in reverse video. Then, pressing the <RETURN> key selects that item.

Function key

A function key is indicated at the left of each item. To select an item, press the

corresponding function key.

Command name

An uppercase letter in (usually, the initial of) an item name is the command name. In the

above case, pressing the letter key -z U >, <Cl>, or <A> can select the Update. Quit, or

Append command, respectively.

l-20
