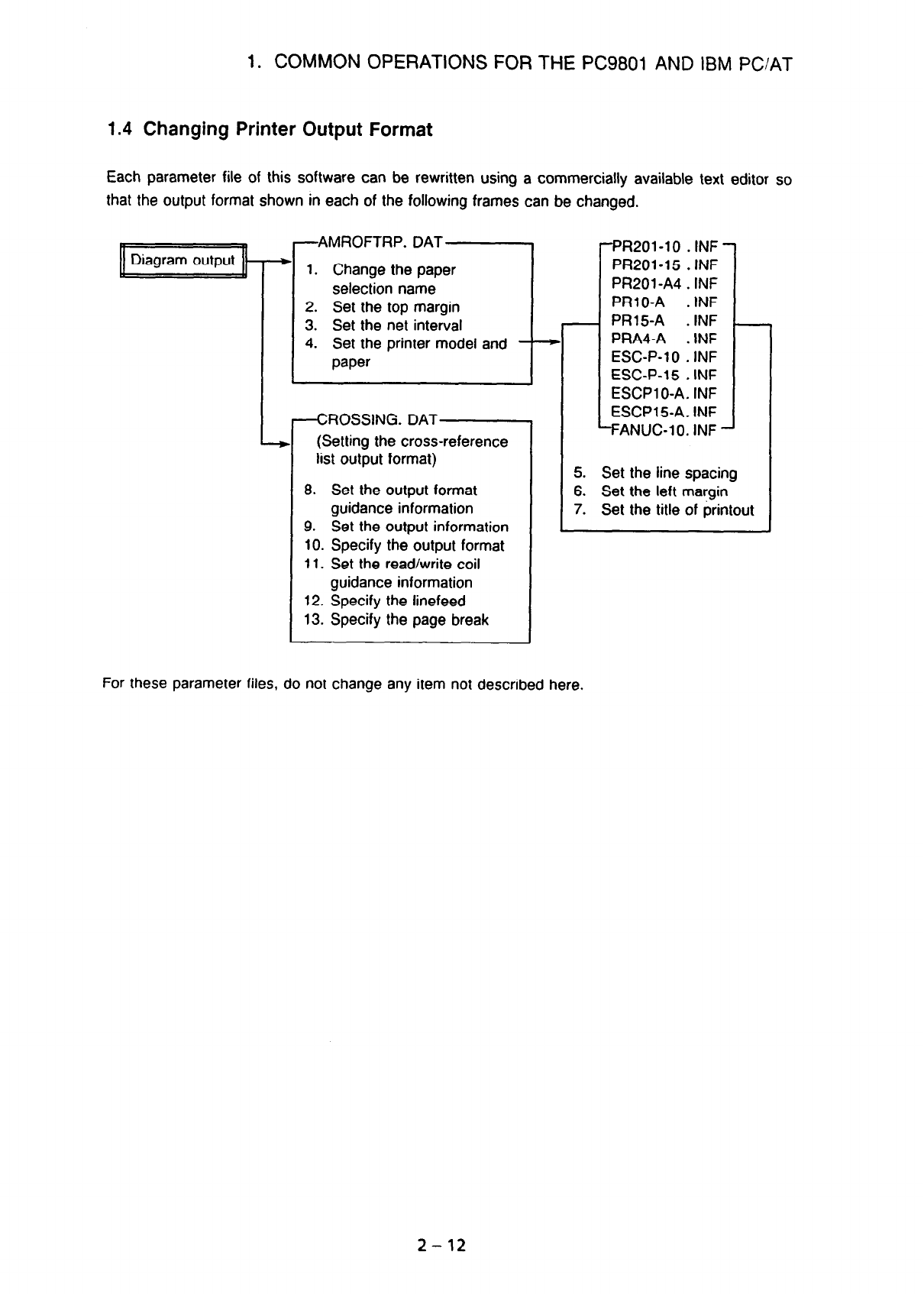

1. COMMON OPERATIONS FOR THE PC9801 AND IBM PC/AT

1.4 Changing Printer Output Format

Each parameter file of this software can be rewritten using a commercially available text editor so

that the output format shown in each of the following frames can be changed.

1 Diagram output %

-AMROFTRP. DAT

1. Change the paper

selection name

2. Set the top margin

3. Set the net interval

4. Set the printer model and

paw

-CROSSING. DAT

(Setting the cross-reference

list output format)

8. Set the output format

guidance information

9. Set the output information

10. Specify the output format

11. Set the read/write coil

guidance information

12. Specify the linefeed

13. Specify the page break

-PR201-10 . INF -

PR201-15 . INF

PR201-A4 . INF

PRlO-A . INF

PRlS-A . INF

PRA4-A . INF

ESC-P-10 . INF

ESC-P-15 . INF

ESCPl O-A. INF

ESCPl5-A. INF

-FANUC-10. INF -

5. Set the line spacing

6. Set the left margin

7. Set the title of printout

For these parameter files, do not change any item not described here.
