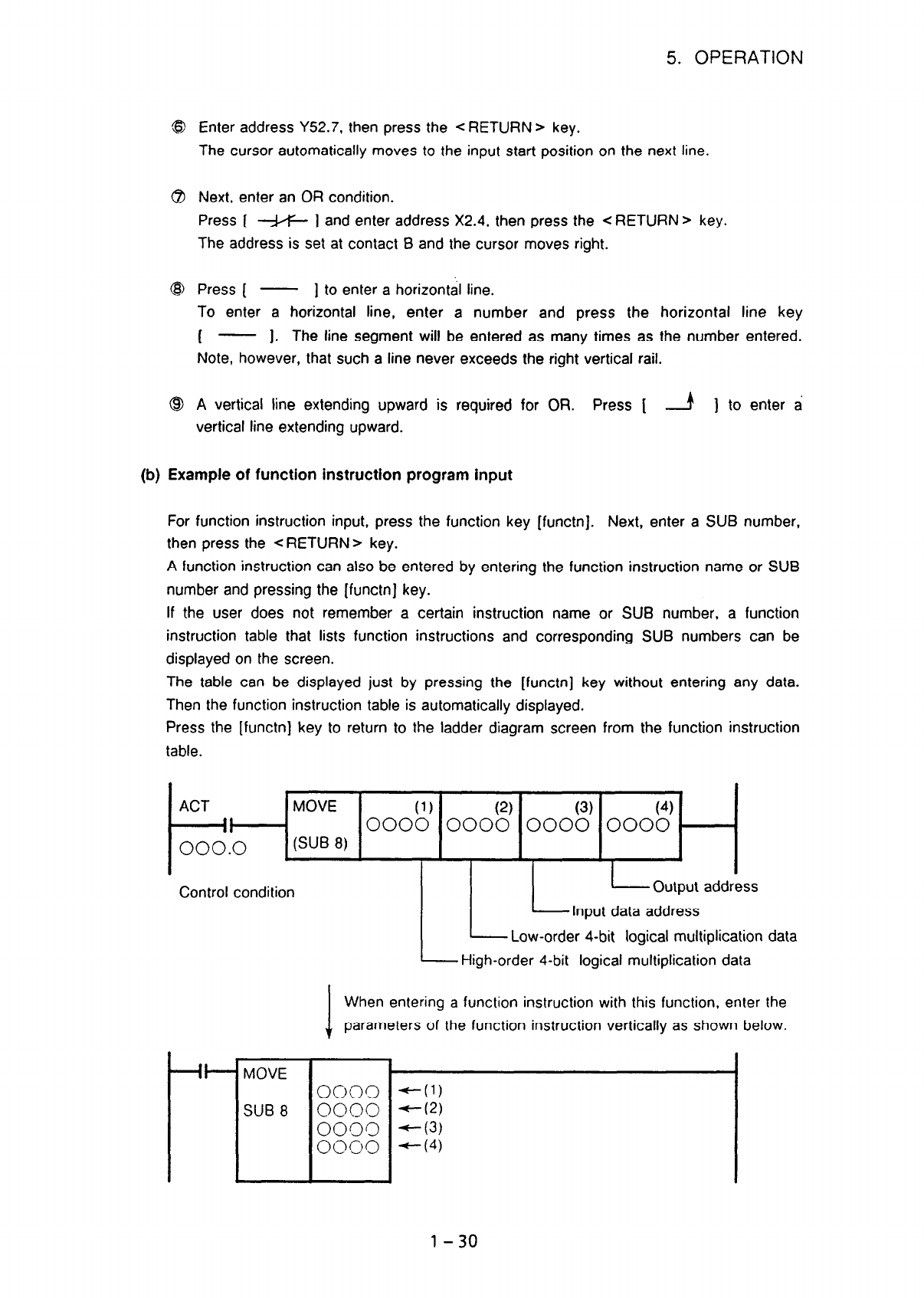

5. OPERATION

(b)

Example of function instruction program input

Enter address Y52.7. then press the <RETURN > key.

The cursor automatically moves to the input start position on the next line.

Next, enter an OR condition.

Press [ + ] and enter address X2.4, then press the <RETURN > key.

The address is set at contact 6 and the cursor moves right.

Press [ - ] to enter a horizontal line.

To enter a horizontal line, enter a number and press the horizontal line key

[

- 1. The line segment will be entered as many times as the number entered.

Note, however, that such a line never exceeds the right vertical rail.

A vertical line extending upward is required for OR. Press [ d ] to enter a

vertical line extending upward.

For function instruction input, press the function key [functnj. Next, enter a SUB number,

then press the <RETURN> key.

A function instruction can also be entered by entering the function instruction name or SUB

number and pressing the [functn] key.

If the user does not remember a certain instruction name or SUB number, a function

instruction table that lists function instructions and corresponding SUB numbers can be

displayed on the screen.

The table can be displayed just by pressing the [functn] key without entering any data.

Then the function instruction table is automatically displayed.

Press the [functn] key to return to the ladder diagram screen from the function instruction

table.

ACT

1 MOVE

Control condition

-It-- MOVE

SUB 8

. I

(1)

(2)

(3) (4)

0000 0000 0000 0000

- Output address

Input data address

Low-order 4-bit logical multiplication data

High-order 4-bit logical multiplication data

When entering a function instruction with this function, enter the

parameters of the function instruction vertically as shown below.

0000 -c-(l)

0000 --(,a

0000 -(3)

0000 -(4)

l-30
