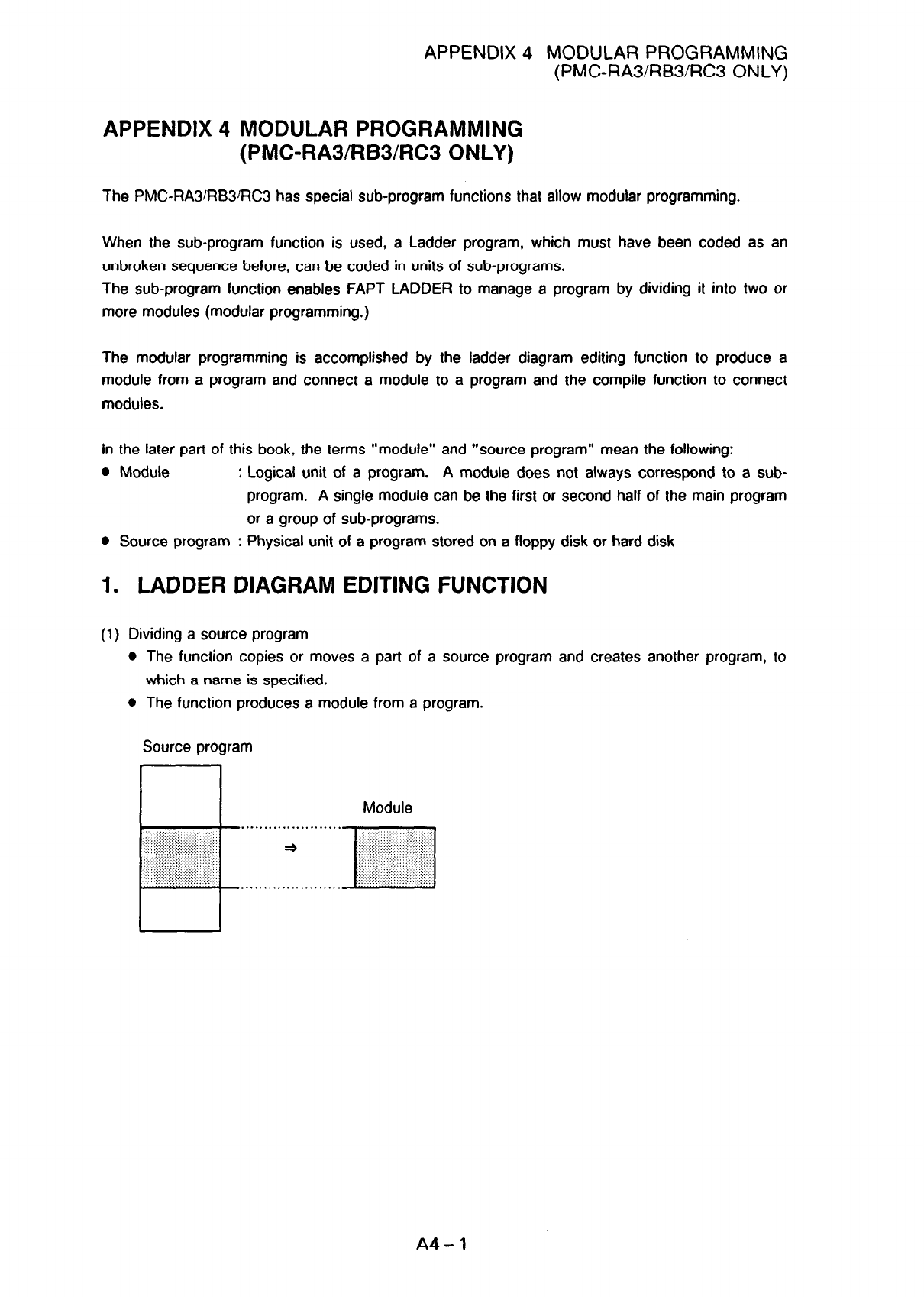

APPENDIX 4

APPENDIX 4 MODULAR PROGRAMMING

(PMC=RA3/RB3/RC3 ONLY)

MODULAR PROGRAMMING

(PMC-RA3/RB3/RC3 ONLY)

The PMCRA3/RB3’RC3 has special sub-program functions that allow modular programming.

When the sub-program function is used, a Ladder program, which must have been coded as an

unbroken sequence before, can be coded in units of sub-programs.

The sub-program function enables FAPT LADDER to manage a program by dividing it into two or

more modules (modular programming.)

The modular programming is accomplished by the

module from a program and connect a module to a

modules.

ladder diagram editing function to produce a

program and the compile function to connect

In the later part of this book, the terms “module” and “source program” mean the following:

0 Module

: Logical unit of a program. A module does not always correspond to a sub-

program. A single module can be the first or

or a group of sub-programs.

l Source program

: Physical unit of a program stored on a floppy

second half of the main program

disk or hard disk

1. LADDER DIAGRAM EDITING FUNCTION

(1) Dividing a source program

l The function copies or moves a part of a source program and creates another program, to

which a name is specified.

0 The function produces a module from a program.

Source program

Module

A4-1
