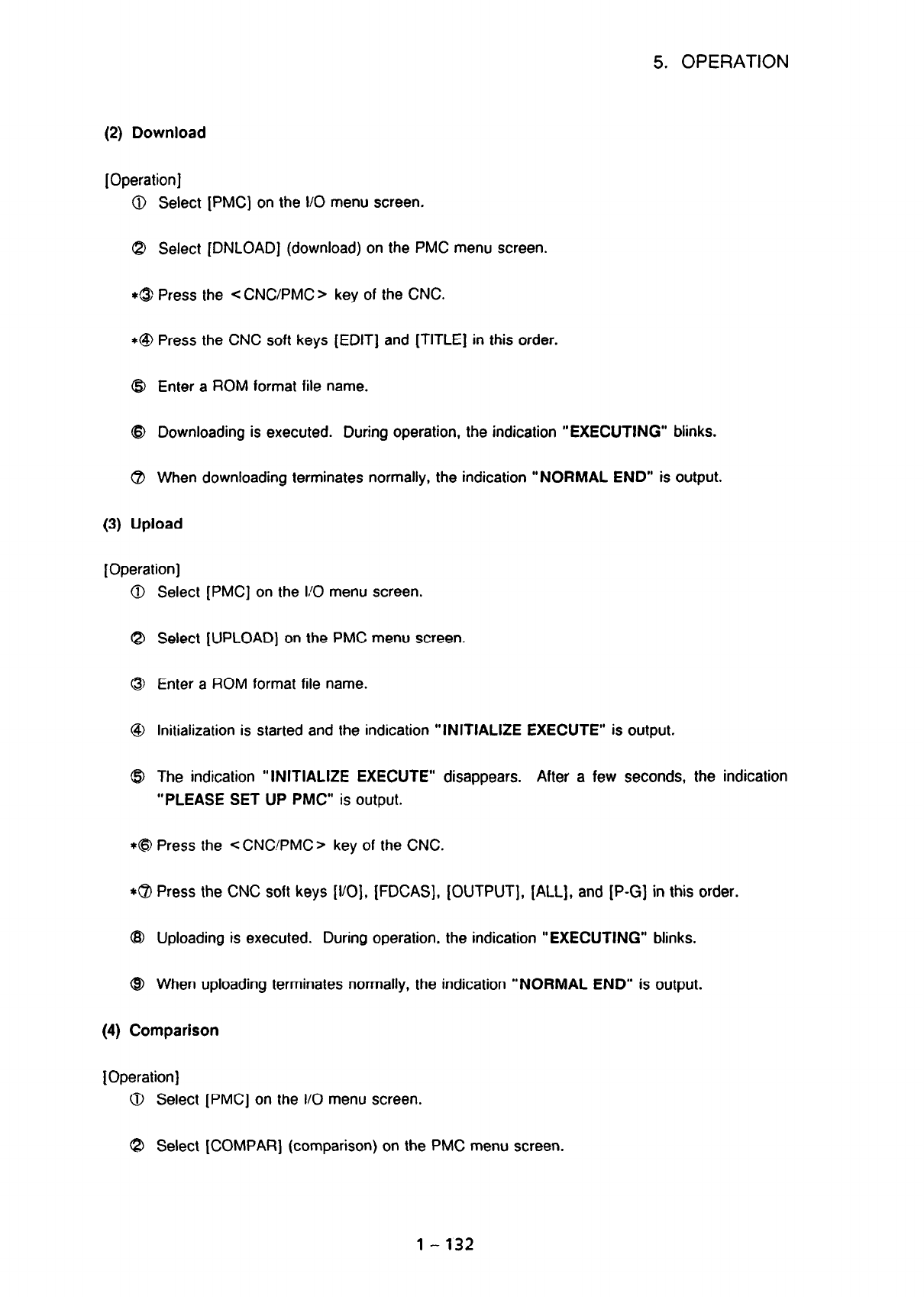

5. OPERATION

(2) Download

[Operation]

@ Select [PMC] on the l/O menu screen.

8 Select [DNLOAD] (download) on the PMC menu screen.

*$! Press the <CNC/PMC> key of the CNC.

*@I Press the CNC soft keys [EDIT] and [TITLE] in this order.

61 Enter a ROM format file name.

@ Downloading is executed. During operation, the indication “EXECUTING” blinks.

B When downloading terminates normally, the indication “NORMAL END” is output.

(3) Upload

[Operation]

0 Select [PMC] on the I/O menu screen.

8 Select [UPLOAD] on the PMC menu screen.

@ Enter a ROM format file name.

@I Initialization is started and the indication “INITIALIZE EXECUTE” is output.

61 The indication “INITIALIZE EXECUTE” disappears.

After a few seconds, the indication

“PLEASE SET UP PMC” is output.

*@ Press the <CNC!PMC> key of the CNC.

*8 Press the CNC soft keys [l/O], [FDCAS), [OUTPUT], [ALL], and [P-G] in this order.

@I Uploading is executed. During operation, the indication “EXECUTING” blinks.

@I When uploading terminates normally, the indication “NORMAL END” is output.

(4) Comparison

IOperation]

0 Select [PMC] on the I/O menu screen.

8 Select [COMPAR] (comparison) on the PMC menu screen.

1-132
