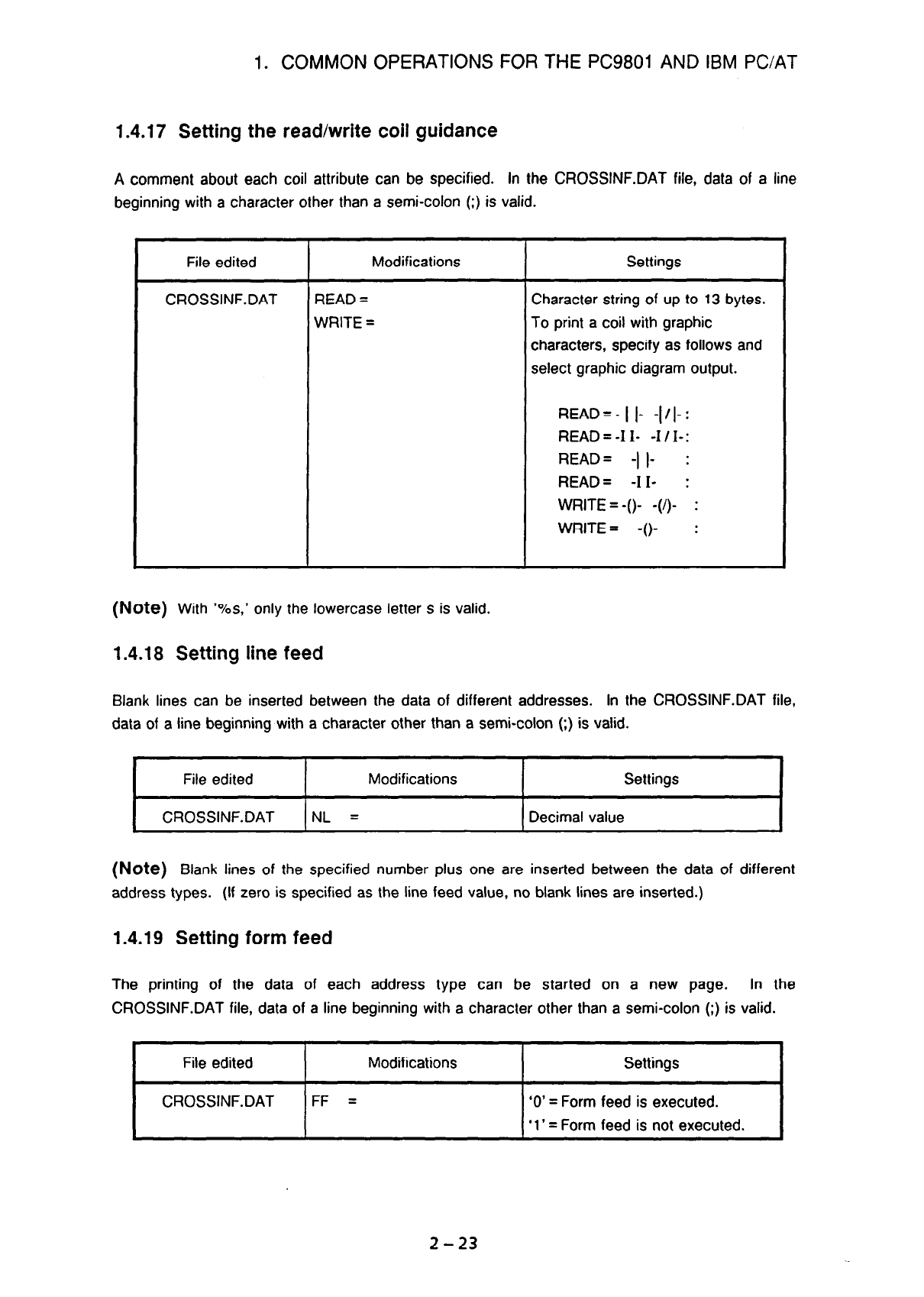

1. COMMON OPERATIONS FOR THE PC9801 AND IBM PC/AT

1.4.17 Setting the read/write coil guidance

A comment about each coil attribute can be specified. In the CROSSINF.DAT file, data of a line

beginning with a character other than a semi-colon (;) is valid.

File edited

CROSSINF.DAT

Modifications

READ =

WRITE =

Settings

Character string of up to 13 bytes.

To print a coil with graphic

characters, specify as follows and

select graphic diagram output.

READ=- 1 I- -I/j-:

READ=-II- -I/I-:

READ= -1 I- :

READ= -I I- :

WRITE = -()- -(I)- :

WRITE = -()- :

(Note) With ‘%s,’ only the lowercase letter s is valid.

1.4.18 Setting line feed

Blank lines can be inserted between the data of different addresses. In the CROSSINF.DAT file,

data of a line beginning with a character other than a semi-colon (;) is valid.

-1

File edited

Modifications Settings

CROSSINF.DAT NL =

Decimal value

(Note) Blank lines of the specified number plus one are inserted between the data of different

address types. (If zero is specified as the line feed value, no blank lines are inserted.)

1.4.19 Setting form feed

File edited

Modifications Settings

CROSSINF.DAT FF =

‘0’ = Form feed is executed.

‘1’ = Form feed is not executed.

The printing of the data of each address type can be started on a new page.

In the

CROSSINF.DAT file, data of a line beginning with a character other than a semi-colon (;) is valid.

2-23
