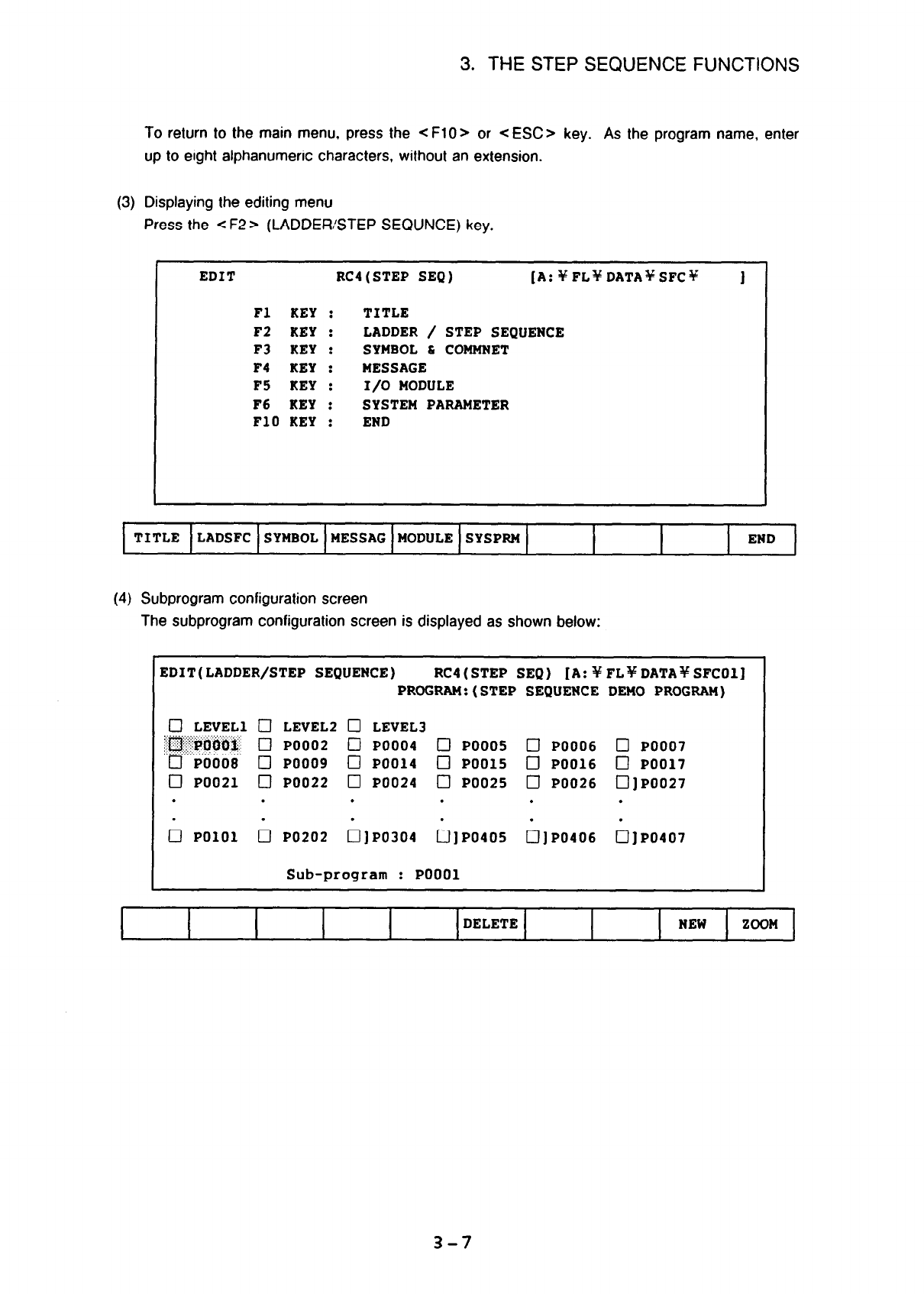

3. THE STEP SEQUENCE FUNCTIONS
To return to the main menu, press the < FlO> or < ESC> key. As the program name, enter
up to eight alphanumeric characters, without an extension.
Displaying the editing menu
Press the < F2 > (LADDER/STEP SEQUNCE) key.
EDIT
RCI(STEP SEQ) [A: YFL~DATAYsFcY 1
Fl KEY : TITLE
F2 KEY :
LADDER / STEP SEQUENCE
F3 KEY : SYMBOL h COMMNET
F4 KEY :
MESSAGE
F5 KEY : I/O MODULE
F6 KEY :
SYSTEM PARAMETER
FlO KEY : END
1 TITLE ILADSFC ISYMBOL IMESSAG IMODULEISYSPRM 1
I
I
I I
I
I I
I
I
I END I
I
I
(4) Subprogram configuration screen
The subprogram configuration screen is displayed as shown below:
EDIT(LADDER/STEP SEQUENCE)
RC4(STEP SEQ) [A:YFLyDATAYSFCOl]
PROGRAM:(STEP SEQUENCE DEMO PROGRAM)
0 LEVEL1 0 LEVEL2 0 LEVEL3
. . . .
. . . . . . . . . . . .
‘m;i’J)@ti$., 0 PO002 0 PO004 0 PO005 0 PO006 0 PO007
0 PO008 0 PO009 0 PO014 0 PO015 0 PO016 0 PO017
0 PO021 0 PO022 0 PO024 0 PO025 0 PO026 q JPOO27
.
. . .
.
.
. . . .
.
.
0 PO101 0 PO202 q ]PO304 q ]PO405 q ]PO406 q ]PO407
Sub-program : PO001
I
I
I I
DELETE
I
NEW ZOOM
3-7
Previous page
Next page
