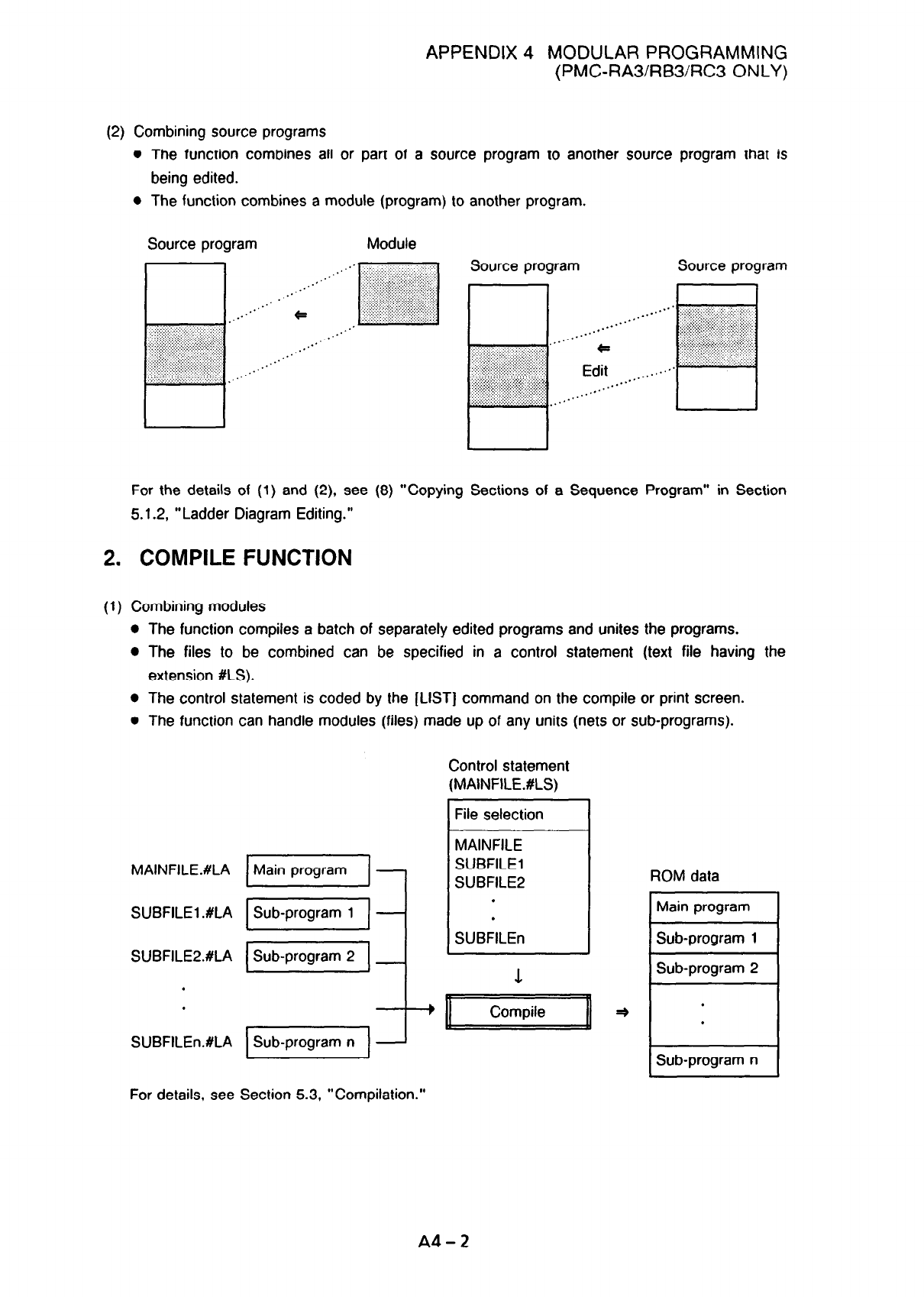

APPENDIX 4 MODULAR PROGRAMMING

(PMC-RA3/RB3/RC3 ONLY)

(2) Combining source programs

l The function combines all or part of a source program to another source program that is

being edited.

l The function combines a module (program) to another program.

Source program

Module

For the details of (1) and (2), see (8) “Copying

5.1.2, “Ladder Diagram Editing.”

Source program

*..*

. . . . . .

_....

. . . . . .

Edit .

<.....

. ...’

. ...*.

. .

Sections of a Sequence

Source program

Program” in Section

2. COMPILE FUNCTION

(1) Combining modules

l The function compiles a batch of separately edited programs and unites the programs.

0 The files to be combined can be specified in a control statement (text file having the

extension #LS).

0 The control statement is coded by the [LIST] command on the compile or print screen.

0 The function can handle modules (files) made up of any units (nets or sub-programs).

Control statement

(MAINFILE.#LS)

MAINFILE.#LA 1 Main program 1

1 I

SUBFILEl.#LA 1 Sub-program 1 1

SUBFILE2.#LA I Sub-program 2 I

File selection

MAINFILE

SUBFILEI

SUBFILE

SUBFlLEn

SUBFILEn.#LA

ROM data

Main program

Sub-program 1 1

Sub-program 2 1

Sub-program n 1

For details, see Section 5.3, “Compilation.”

A4-2
