3.CREATING AND EDITING SEQUENCE PROGRAMS B-63484EN/05

- 104 -

3.3.27.3 Ladder diagram without the net number is output to the text

file

The setting to output the ladder diagram without the net number in the

text file has been added. Since the net numbers are not output, you can

compare the ladder diagrams before and after the modifications using

the function of a text editor.

Setting

1 Click [Option...] in [Tool] menu.

2 Click [Ladder] tab on [Option] window.

3 Check Output the text file without the net number.

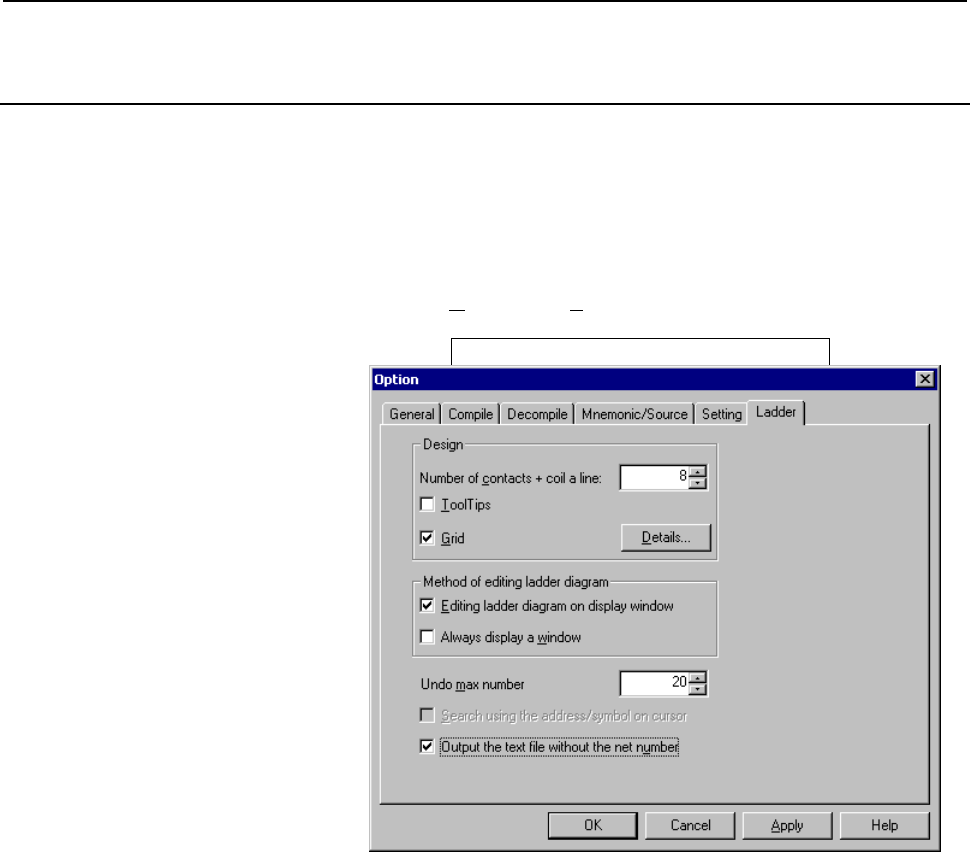

Fig. 3.3.27.3

Operation

1 The Ladder program to output is displayed

2 [Output a text format file...] is selected from the [Tool] menu.

3 Input the output file name. Push the <Save> button and the file is

outputted.
