Open CNC (Ladder Editing Package, Windows) Operators manual Page 192

Operators manual
3.CREATING AND EDITING SEQUENCE PROGRAMS B-63484EN/05
- 164 -
2 Select External Symbol File from the list, push the <Next>
button.
3 Enter the file name to export.

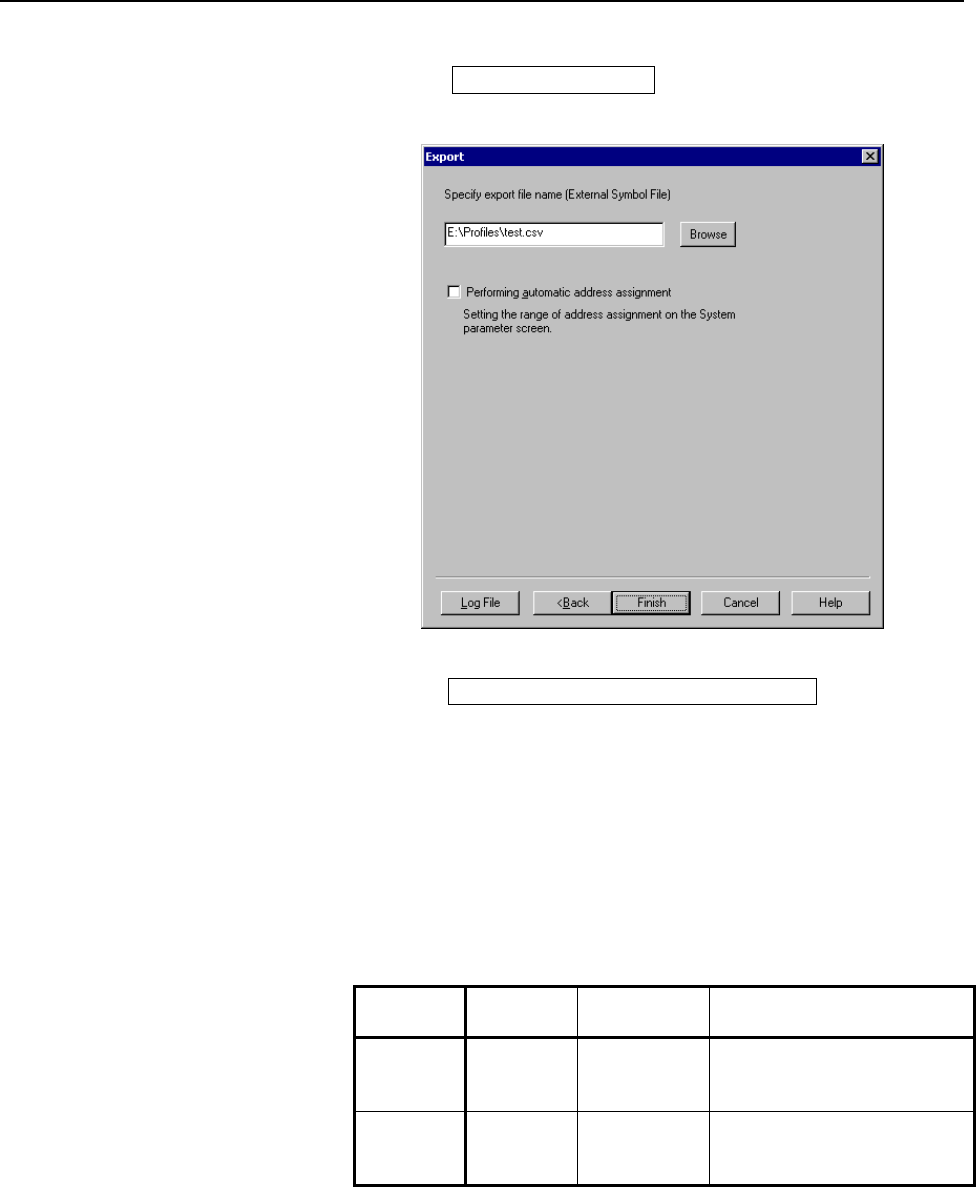

Fig. 3.11.2 (b)
4 Check Performing automatic address assignment if needed.
This item appears when the PMC model is the extended function.
Check this item if you use the external symbol file at the
non-extended function.
Check : The address of the symbol is assigned
automatically and outputted in the external
symbol file. Beforehand, you need to
specify the assignment address range on
the system parameter screen.
No check (Default) : The address is not assigned automatically
and outputted with the address character
only.
Address
of symbol
External
symbol file
Remarks
Check
R0.3
*R1.0
R
R0.3
R1.3
R1.4
The address is assigned
automatically and outputs the
external symbol file.
No check
R0.3
*R1.0
R
R0.3
R
R
The address assigned
automatically is outputted in
the address character only.
5 Click the <Finish> button.
