Open CNC (Ladder Editing Package, Windows) Operators manual Page 313

Operators manual
B-63484EN/05 9.DIAGNOSIS
- 285 -
Mnemonic monitor screen
This section describes the procedure for displaying a mnemonic
monitor screen.
Procedure
1 Select [View] - [Program List]. The [Program List] screen
appears. (Usually, this screen appears automatically when a LAD
file is created or opened.)
2 Check the current programmer mode (offline or online). If the
programmer mode is offline, select [Ladder] - [Programmer
Mode] - [Online] or click <Online/Offline change> button to
change the programmer mode to online.
3 Check the current ladder mode (monitor or editor). If the ladder
mode is editor, select [Ladder] - [Ladder Mode] - [Monitor] or
click <Ladder Monitor> button to change the ladder mode to
monitor.
4 On the [Program List] screen, double-click the ladder program
you want to monitor. Alternatively, select the ladder program and
press the [Enter] or [F10] key.

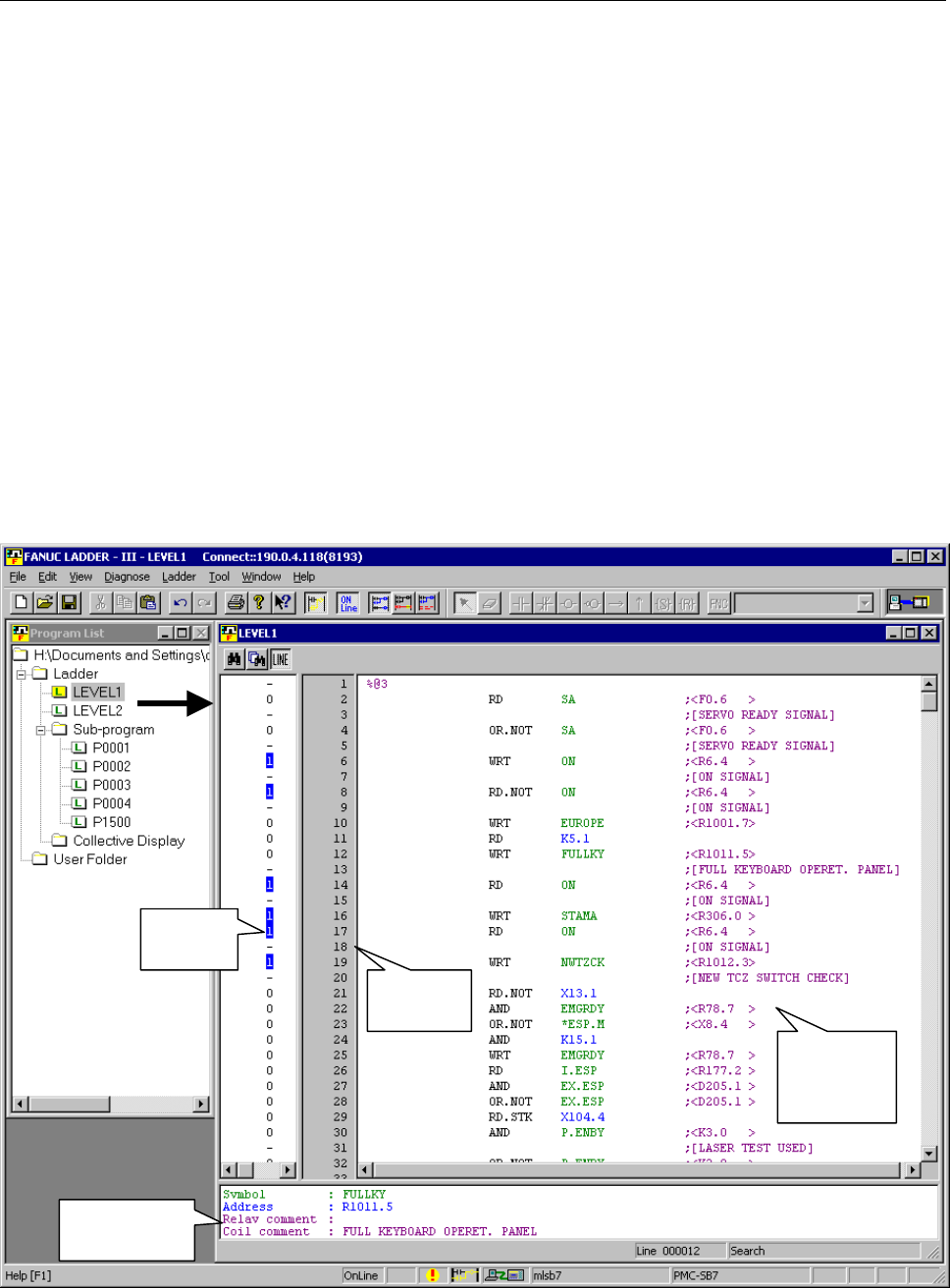

Fig. 9.1.5 (a) Mnemonic monitor screen
Mnemonic
language
program
Line
numbe
r
Cursor
information
Signal
status
Previous page
Next page
