3.CREATING AND EDITING SEQUENCE PROGRAMS B-63484EN/05
- 28 -
Selection of Multi-path PMC
[Selection of device] dialog box appeares by the following operation.
• Starting the communication to PMC when no program is opened.
• Starting the communication to PMC when PMC type of the
opened program does not support Multi-path PMC.
• Selecting [Device select…] in TOOL menu.
In the [Selection of device] dialog, specify the PMC path you want to
connect. When you change the destination, perform communication
with the PMC again.
Procedure
1 The [Selection of device] dialog appears. (Only the PMC paths to
which you can connect are displayed.)

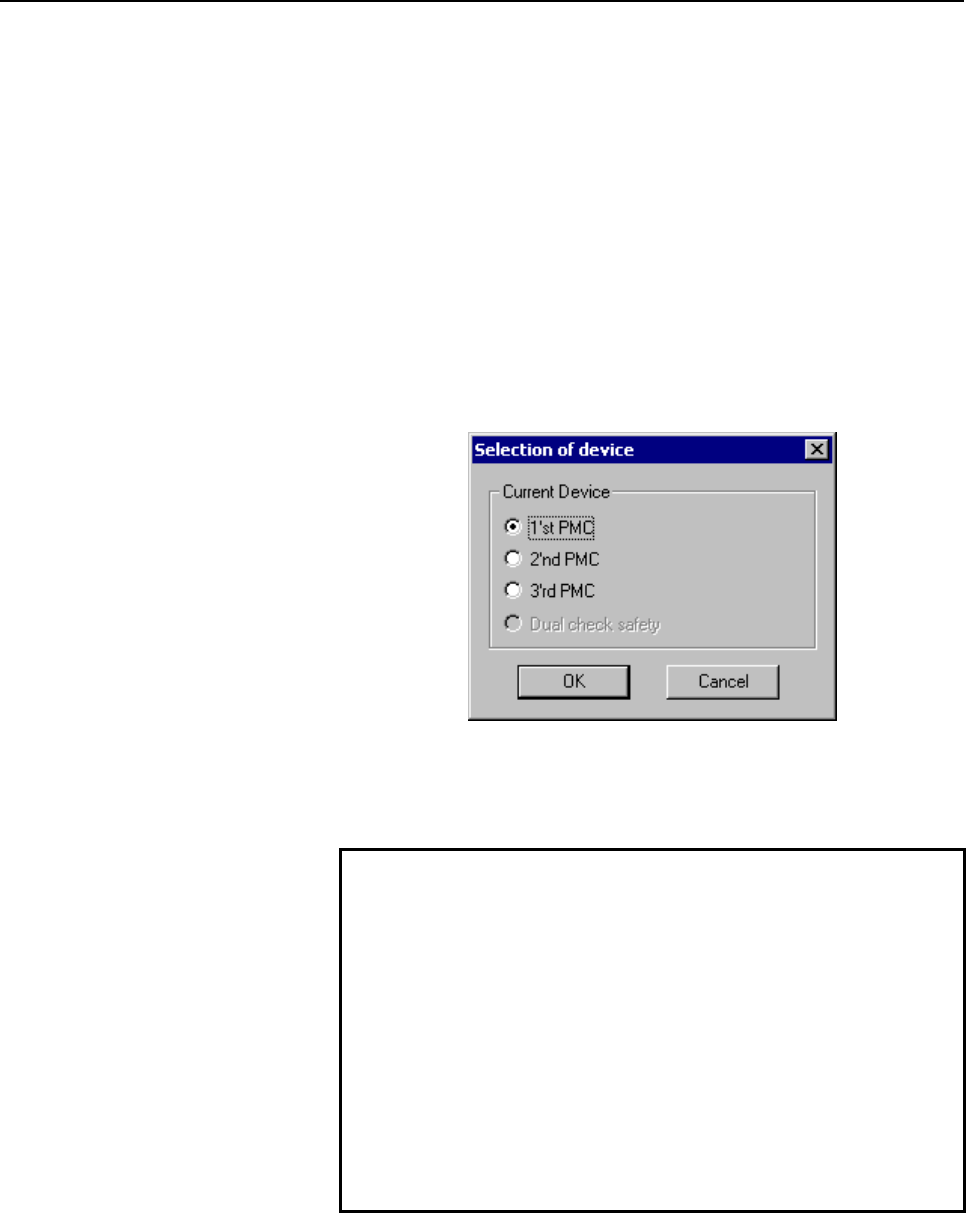

Fig. 3.1.5 (b)
2 Select the path you want to connect using the [↑] and [↓] keys.
3 Click the <OK> button.
NOTE
1 It is not possible to connect with two or more PMC
paths at the same time.
2 When PMC type of the opened program support
Multi-path PMC and the connection to PMC is
started, LADDER EDITING PACKAGE (Windows)
is automatically connected with the PMC path of
the opened program.
3 [Selection of device] dialog is not displayed when
there is only one PMC path which can be
connected. (When selecting [Device select…] in
TOOL menu, [Selection of device] dialog is
displayed.)
