5.COMPILATION AND DECOMPILATION B-63484EN/05

- 210 -

Details of the options are listed below.

Table 5.2 (b)

Option Explanation

Symbol/Comment is

dec

ompiled

If not checked, no symbol/comment data is

decompiled. The definition of the source is directly

used.

Merging the Symbol/

Comment has given

priority to the S

ource data

The symbols of the source program and object

code are merged only for a symbol and comment.

If the same symbol and comment exist, the

definition of the source program is used.

Merging the Symbol/

Comment has given

priority to the M

emory

card data

The symbols of the source program and object

code are merged only for a symbol and comment.

If the same symbol and comment exist, the

definition of the object code is used.

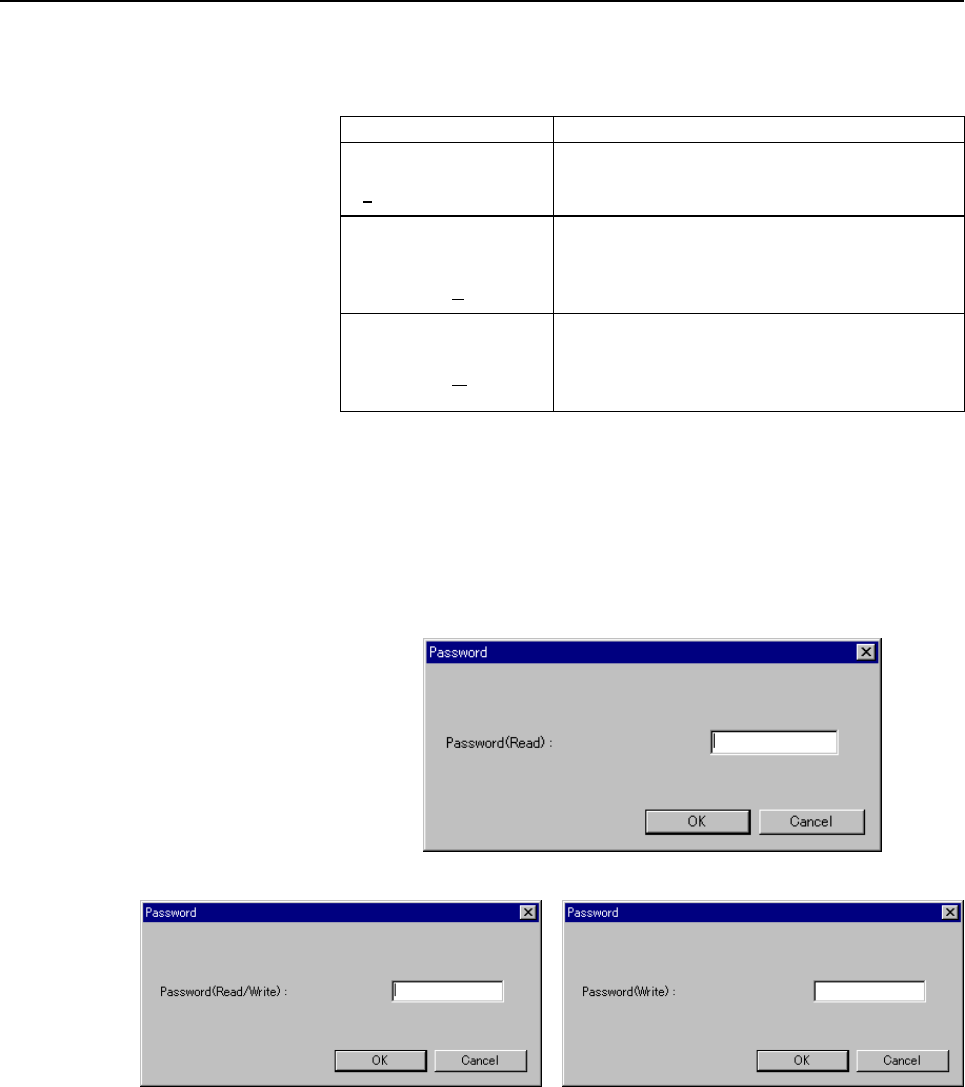

3 To start decompilation, click the <Exec> button. When object

code with a password is to be decompiled, the

[Password(Decompile)] dialog appears. Enter a password to

permit display or to permit display and editing, and then click the

<OK> button.

(For details on passwords, see "Protecting Ladder Programs by

Passwords.")

Fig. 5.2 (e)

Fig. 5.2 (f) Fig. 5.2 (g)
