Open CNC (Ladder Editing Package, Windows) Operators manual Page 295

Operators manual

Page of 571

/ 571

B-63484EN/05 7.INPUT/OUTPUT

- 267 -

7.5 STORING SEQUENCE PROGRAMS IN THE PMC (DURING

CONNECTION WITH THE PMC)

7.5.1 Procedure

1 Select [Tool] - [Store to PMC]

The [Program transfer wizard Selection of program] screen

appears.

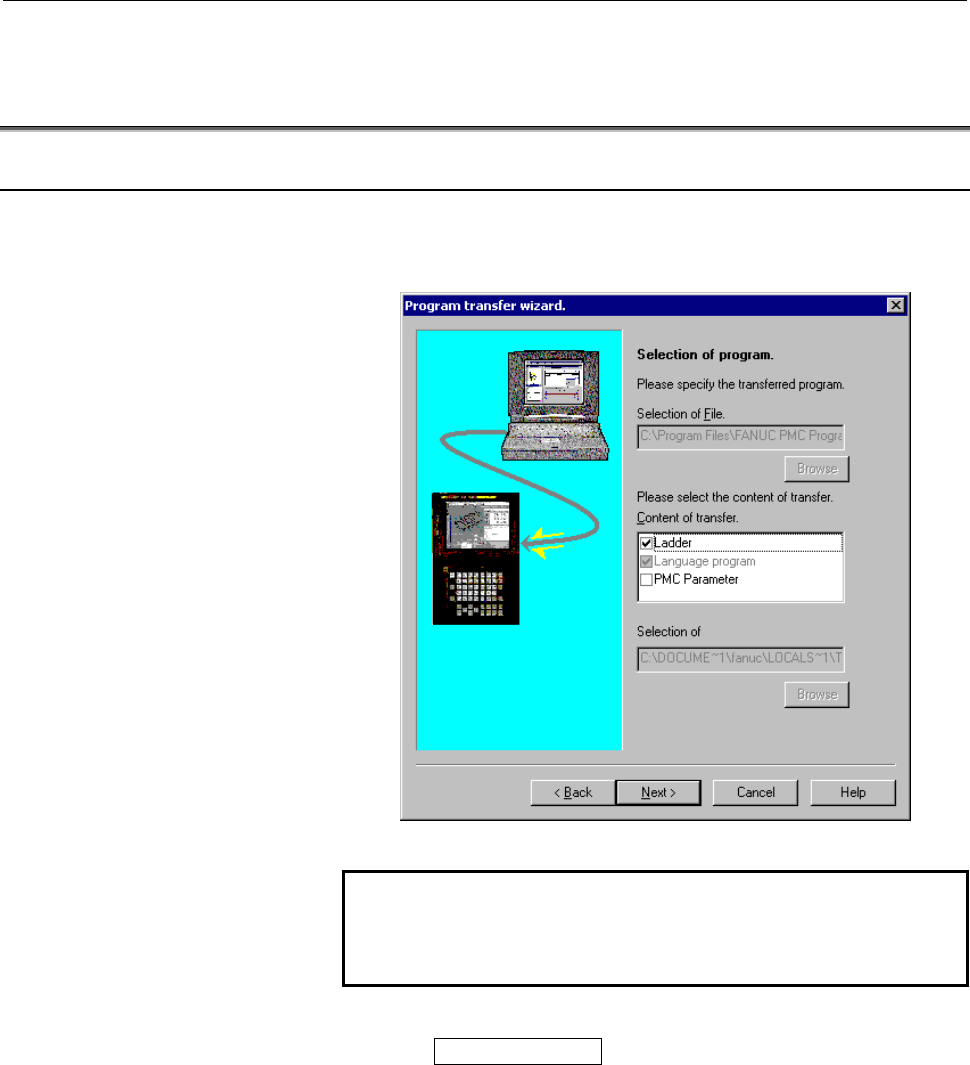

Fig. 7.5.1 (a)

NOTE

When connection is not established, the

[Communication] screen appears. Then establish

connection.

1-1 Set data.

Content of transfer

As transfer information, a selection can be made from

Ladders, Language program, and PMC Parameter.

When transferring PMC parameters, enter a transfer

source file name in [Selection of]. The initial setting

specifies that PMC_PRM.PRM in a user file folder is

transferred.

For a user file folder, see Subsection 3.1.3, "Work

Folders and Online Program Files."

An existing PMC parameter file can be stored in a user

file folder by using the import function.

For the import function, see Section 3.10,

"IMPORTING PROGRAMS."
