3.CREATING AND EDITING SEQUENCE PROGRAMS B-63484EN/05

- 116 -

Jump

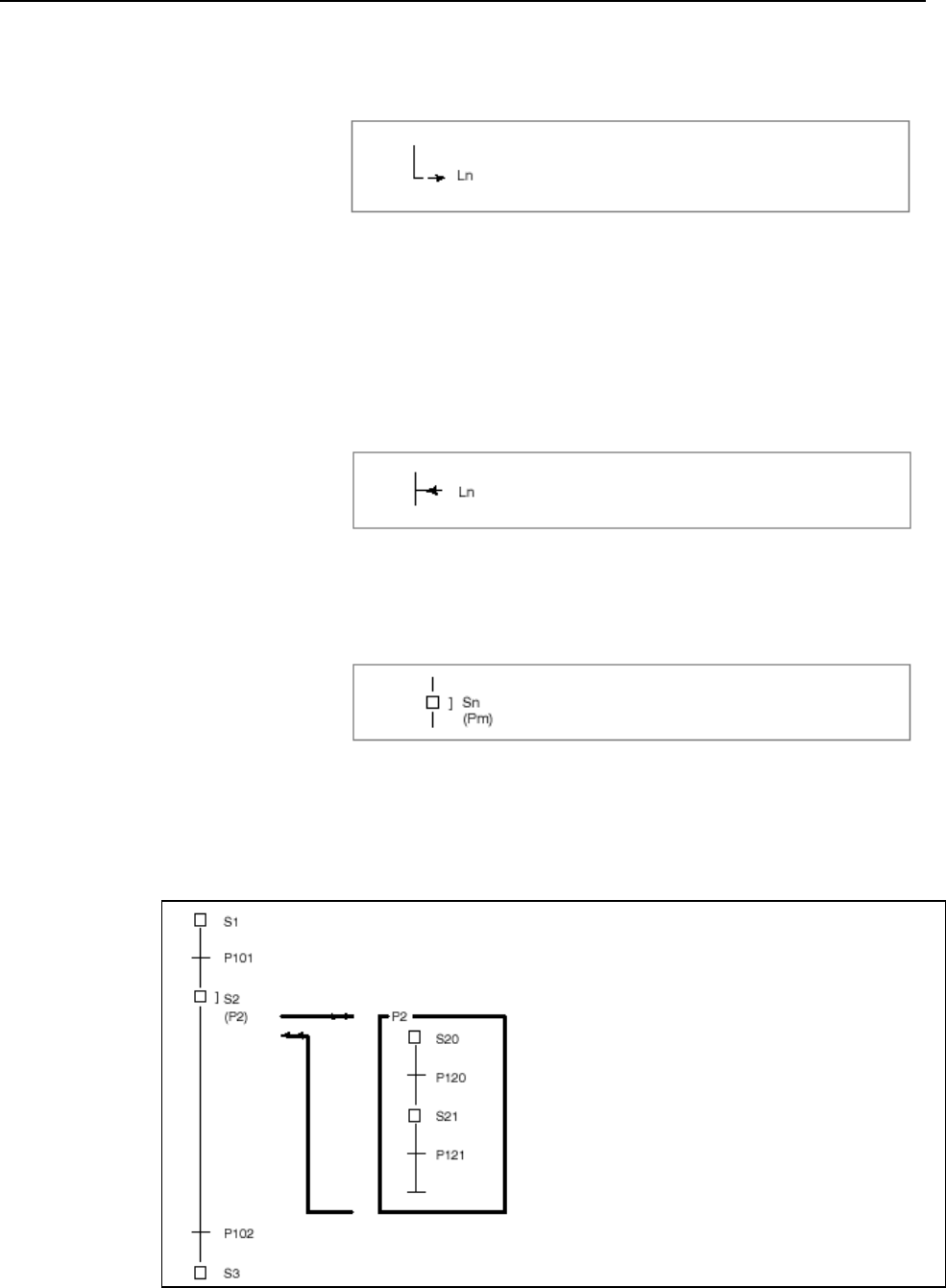

A jump is processed in conjunction with a transition to control the

execution of steps.

• A jump-to label [Ln] is specified.

• The step at a jump destination becomes active.

• The jump destination must be within the same program.

• It is impossible to jump from outside to inside a parallel branch

and vice versa.

• It is impossible to jump from one parallel branch flow to another.

Label

A label represents a jump destination.

• A jump-to label [Ln] is defined.

Block step

The block step is a step for representing a subprogram described with

step sequences.

• A step number [Sn] necessary to control execution and a

subprogram [Pm] that describes actual processing are defined for

a block step.

• A step number must be assigned to a step.

• Duplicate step numbers cannot be used in a program.

• There must always be a transition below a block step.

Transition P102 cannot be omitted. A subprogram for

P102 must be a dummy transition that is always

satisfied.

Write a condition for terminating step S21 in transition

P121.

If transition P102 is exchanged with P121, processing

at step S21 does not work normally.
