11.CONVERTING SEQUENCE PROGRAMS B-63484EN/05
- 378 -
11.1 CONVERTING FROM DOS-VERSION FANUC LADDER-II
This section describes how to convert DOS-version sequence
programs to the Windows version.
11.1.1 Procedure
1 Select [Tool] – [Data Conversion.]
2 On the pull-down menu, select [Data File → LAD File].
The [Conversion into LAD Format File] screen appears.

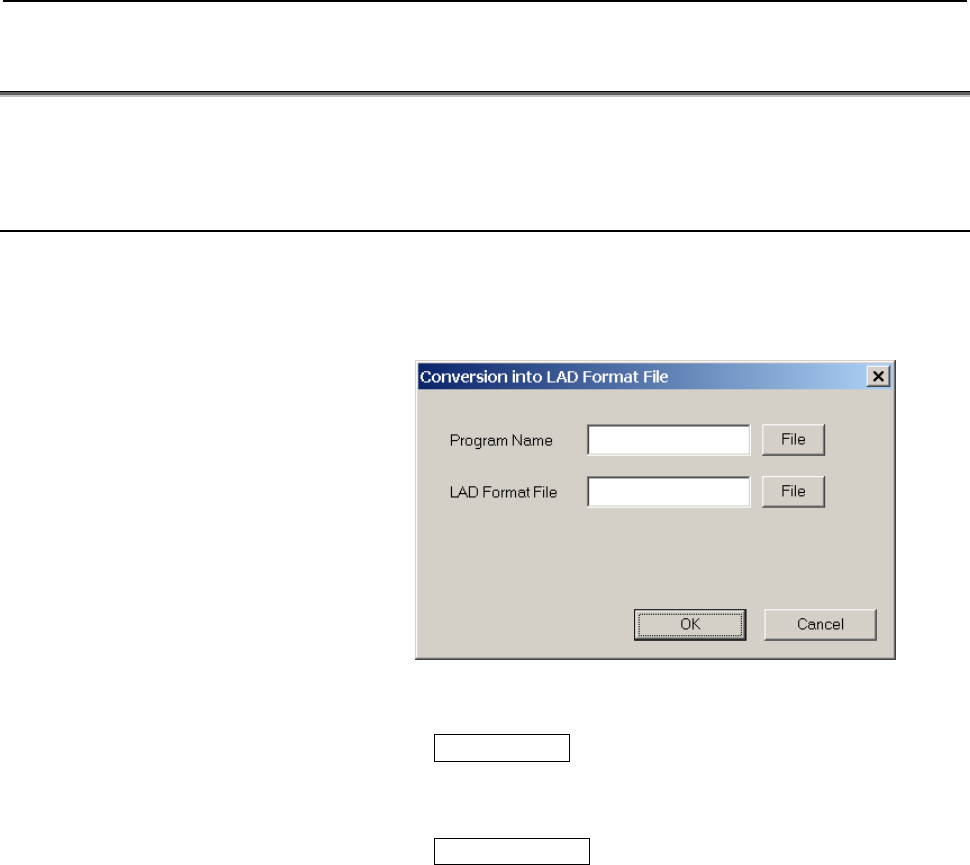

Fig. 11.1.1 (a)
2-1 Input the required data.
Program Name
Enter the name (folder name) of the DOS-version
sequence program you want to convert.
LAD Format File
Enter the name of the Windows-version sequence
program you want to create by the conversion. Use the
extension .LAD. You can omit the extension, however.
3 To convert, click the <OK> button.
To abandon the conversion, click the <Cancel> button.
