Open CNC (Ladder Editing Package, Windows) Operators manual Page 374

Operators manual
10.EXTENDED SYMBOL/COMMENT FUNCTION B-63484EN/05
- 346 -

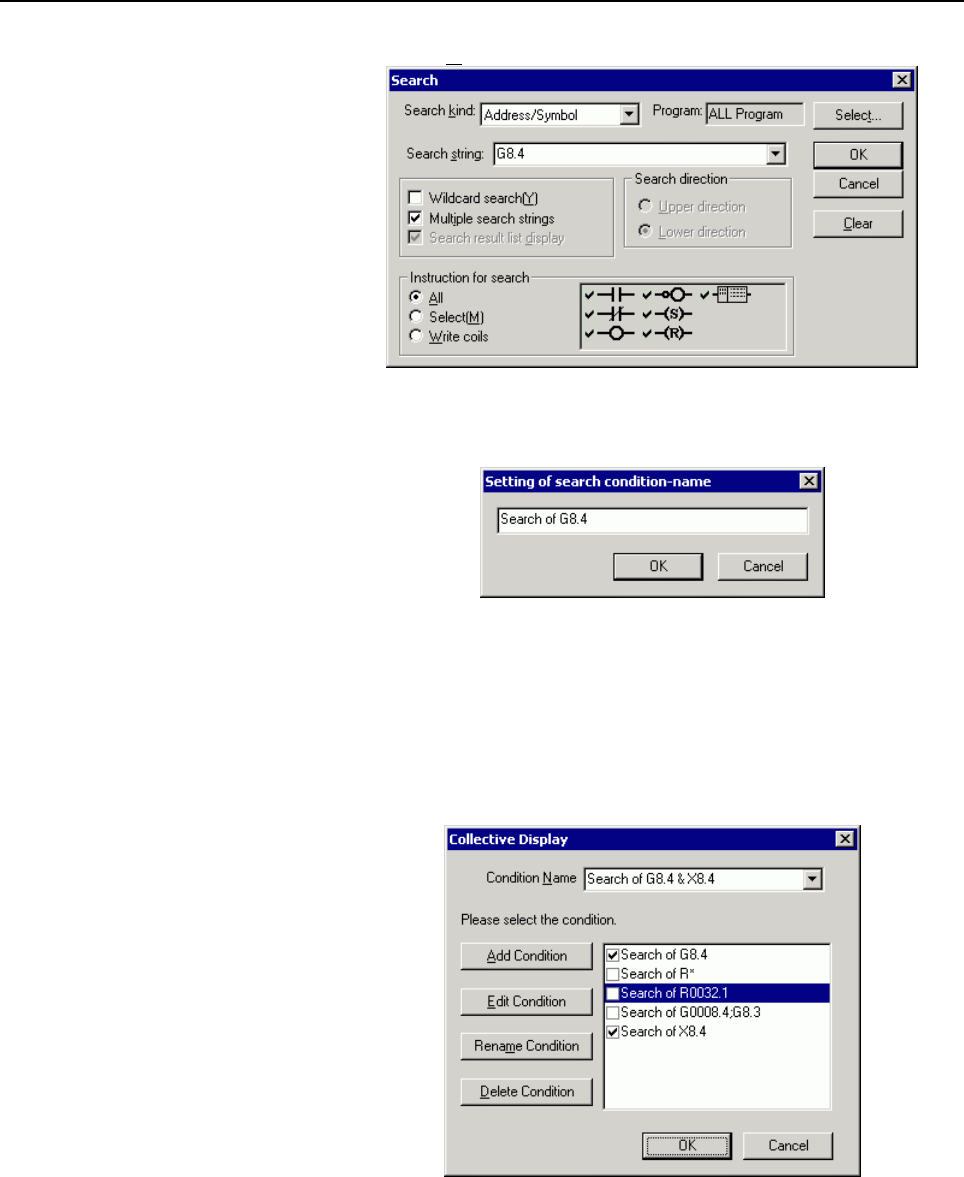

2 Click [Add Condition] button to reach Search screen.
Fig. 10.3.6.2 (b)
Set the condition of search, and then click [OK] button.
3 [Setting of search condition-name] screen appears.
Fig. 10.3.6.2 (c)
This string will be the name of the search condition and will be
listed in [Collective Display] screen.
4 The list in [Collective Display] is updated to contain the new
condition.
5 Repeat 2 to 4 if necessary.
6 Check the conditions that you want to enable, and name the
search condition at [Condition Name].
Fig. 10.3.6.2 (d)
Click [OK] button.
The nets that meet the search condition are collected and displayed at
a time.
You can use this function in on-line mode also.
