10.EXTENDED SYMBOL/COMMENT FUNCTION B-63484EN/05

- 368 -

10.11 SIGNAL STATUS

Procedure

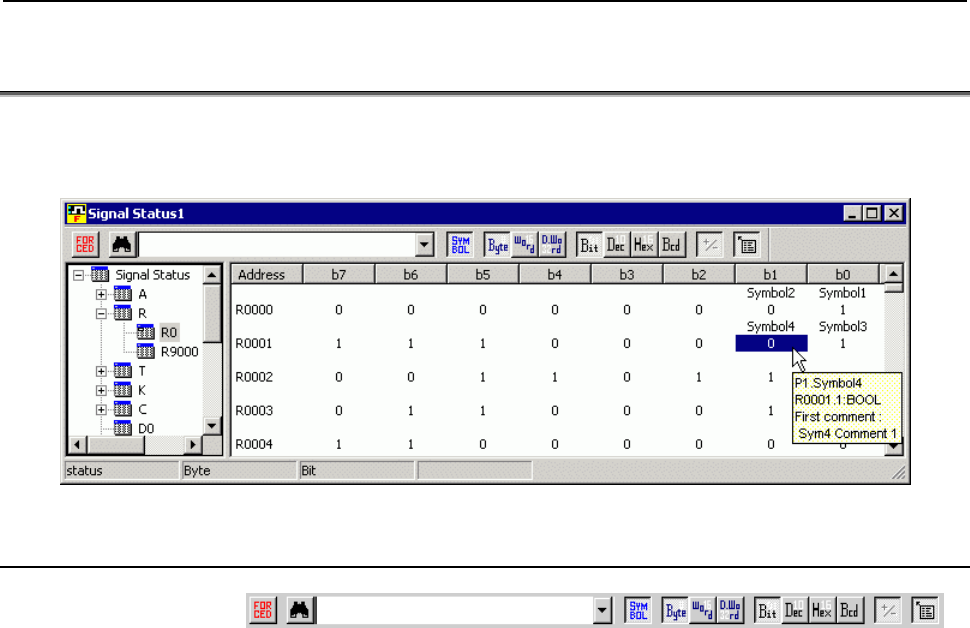

1 Select [Diagnose] – [Signal Status]. The [Signal Status] screen

appears.

Fig. 10.11

10.11.1 Toolbar

(1) (2) (3) (4) (5) (6) (7) (8) (9)(10(11)(12)(13)

Fig. 10.11.1

(1) Switches between the status screen and forced I/O screen.

(2) Search button

(3) Combo box for inputting the character string for which a search

is to be made.

To search a local symbol “ABC” in P1, Input ”P1.ABC”.

(4) Symbol indication (off ⇔ on)

(5) Display format: Byte

(6) Display format: Word

(7) Display format: Double word

(8) Display type: Binary

(9) Display type: Decimal

(10) Display type: Hexadecimal

(11) Display type: BCD

(12) Sign indication (off ⇔ on)

(Valid only when decimal notation is set as the display type.)

(13) ToolTips indication (off ⇔ on)

When the cursor is on an address, detailed information of the

address is shown if ToolTips indication is turned on.
