10.EXTENDED SYMBOL/COMMENT FUNCTION B-63484EN/05

- 370 -

10.14 K ADDRESS (KEEP RELAY)

10.14.1 Toolbar

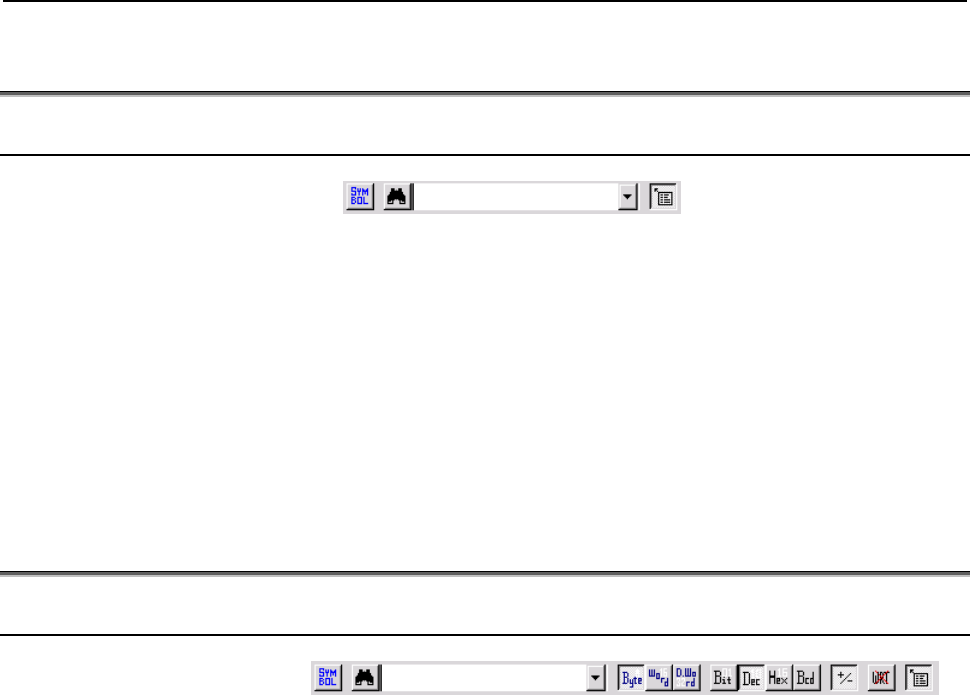

(1) (2) (3) (4)

Fig. 10.14.1

(1) Symbol indication (off ⇔ on)

(2) Search

(3) Combo box for inputting the character string for which a search

is to be made.

To search a local symbol “ABC” in P1, Input ”P1.ABC”.

(4) ToolTips indication (off ⇔ on)

When the cursor is on an address, detailed information of the

address is shown if ToolTips indication is turned on.

10.15 D ADDRESS (DATA TABLE)

10.15.1 Toolbar

(1) (2) (3) (4)(5) (6) (7) (8) (9)(10)(11)(12)(13)

Fig. 10.15.1

(1) Symbol indication (off ⇔ on)

(2) Search

(3) Combo box for inputting the character string for which a search

is to be made.

To search a local symbol “ABC” in P1, Input ”P1.ABC”.

(4) Display format: Byte

(5) Display format: Word

(6) Display format: Double word

(7) Display type: Binary

(8) Display type: Decimal

(9) Display type: Hexadecimal

(10) Display type: BCD

(11) Sign indication (off ⇔ on)

(Valid only when decimal notation is set as the display type.)

(12) Write protection

(13) ToolTips indication (off ⇔ on)

When the cursor is on an address, detailed information of the

address is shown if ToolTips indication is turned on.
