10.EXTENDED SYMBOL/COMMENT FUNCTION B-63484EN/05
- 344 -

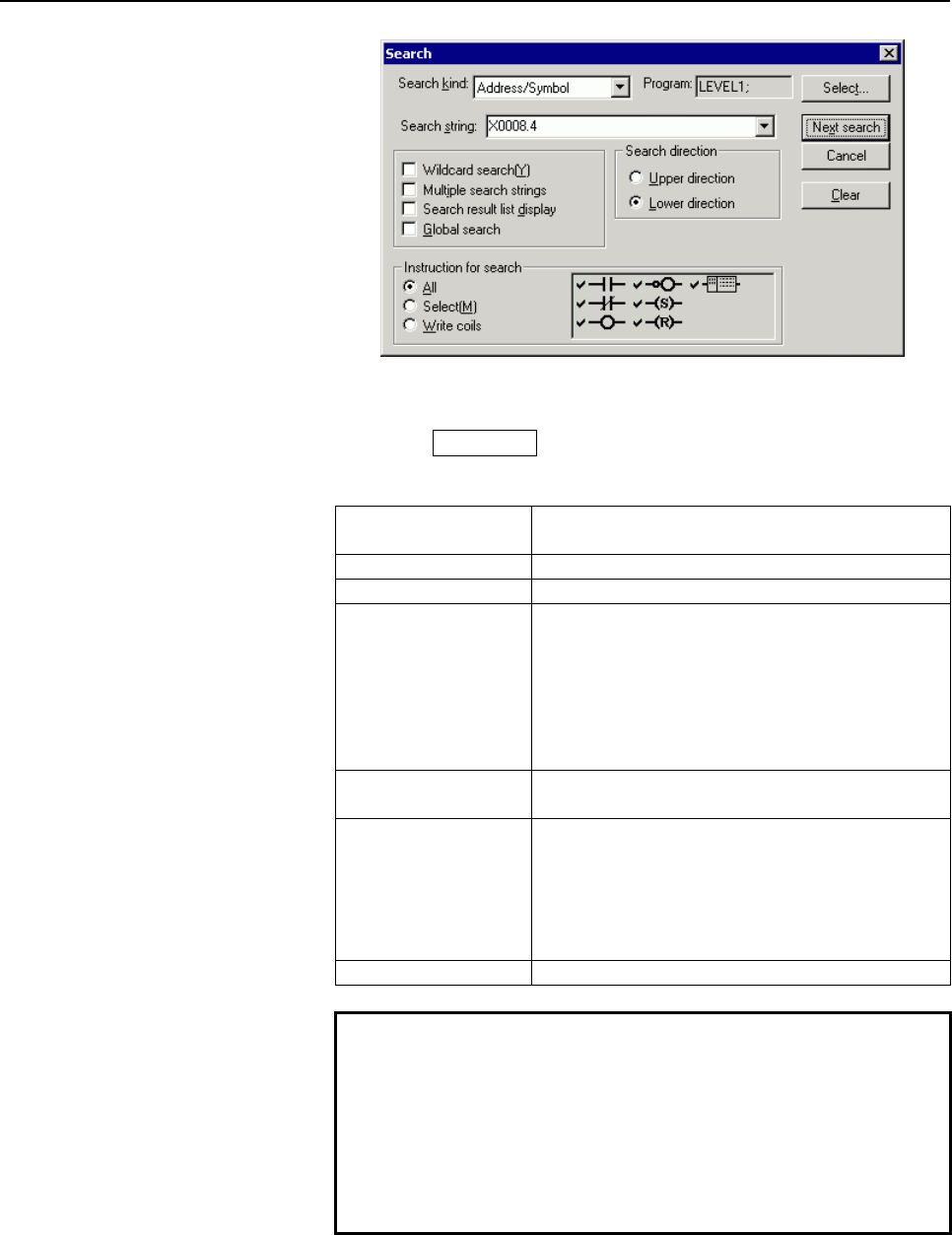

Fig. 10.3.6.1
4 Enter the address or symbol that you want to find.
5 Click Next search button to search it.
Table 10.3.6.1
Search kind Select one of Address/Symbol and Functional
Instruction.
Program Choose the programs to be searched
Search string Enter the string to search for.
Wildcard search(Y) This option is available to search for an address.
With this option, you can use wildcard characters
‘*’ and ‘?’ in the search string.
Search string of “R10.*” will hit any of R10.0 -
R10.7
You can not use wildcard search at searching for a
symbol.
Multiple search strings You can specify multiple addresses separated by
comma “,” or semicolon “;”, such as “Y0.0;X0.0”.
Search result list
display
The result of the search summarizes the results in
[Search result list] screen.
[Search result list] screen shows the program
number, net number, ladder diagram, and coil
comment of each appearance of what you
searched.
Global search Search the whole ladder program.
NOTE
1 The wildcard letter can match with any single or
multiple letters.
2 Question mark “?” matches with any single letter.
More than one “?” can be placed for any letters to
match with.
3 Asterisk mark “*” matches with 0 or more any
letters.
