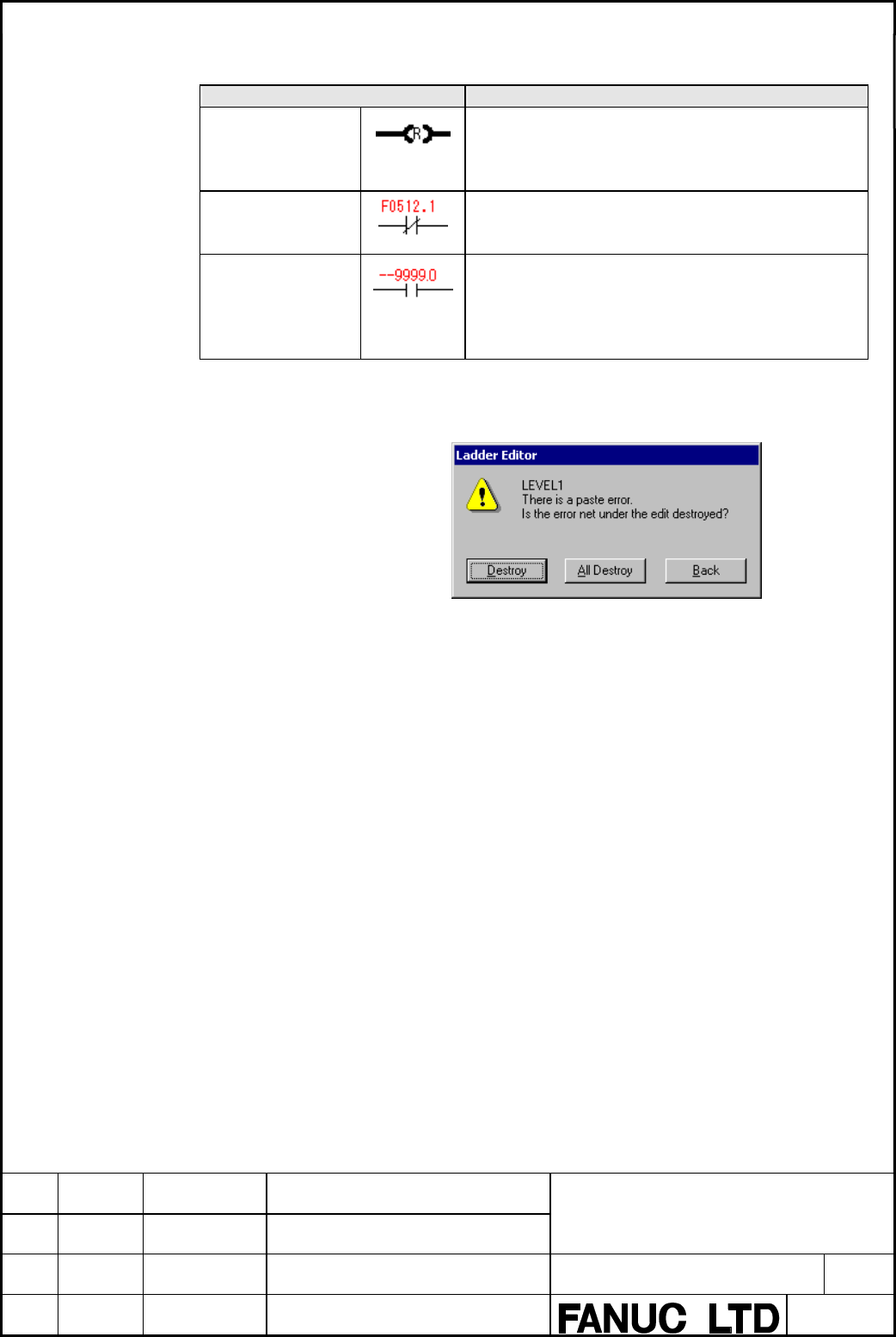

Table 3.3.24.7(a)

Errors by the pasted ladder Description

Instruction which

cannot be used

When the unusable instruction (basic instruction or

function instruction) in the editing PMC type is pasted,

unusable instruction is displayed with bold line. Please

modify the ladder with usable instruction.

Address which cannot

be used

When the unusable address in the editing PMC type is

pasted, the address is displayed with red color. Please

change to the address which can be used.

Temporary address

When an illegal address is pasted, the address is displayed

as follows.

Byte address："--9999" (red color)

Bit address ："--9999.0" (red color)

Please change it to the address which can be used.

If errors in the pasted ladder are existing when the program is saved, the

following dialog is displayed. Please correct the errors in the pasted ladder.

Fig. 3.3.24.7(f)

Destroy : Delete the net including errors in the pasted ladder.

All Destroy : Delete the net including errors in the pasted ladder in all

subprograms.

Back : Cancel the save operation
