Open CNC (Ladder Editing Package, Windows) Operators manual Page 239

Operators manual
B-63484EN/05 5.COMPILATION AND DECOMPILATION
- 211 -
4 Once decompilation is complete, the number of errors and
warnings appears.

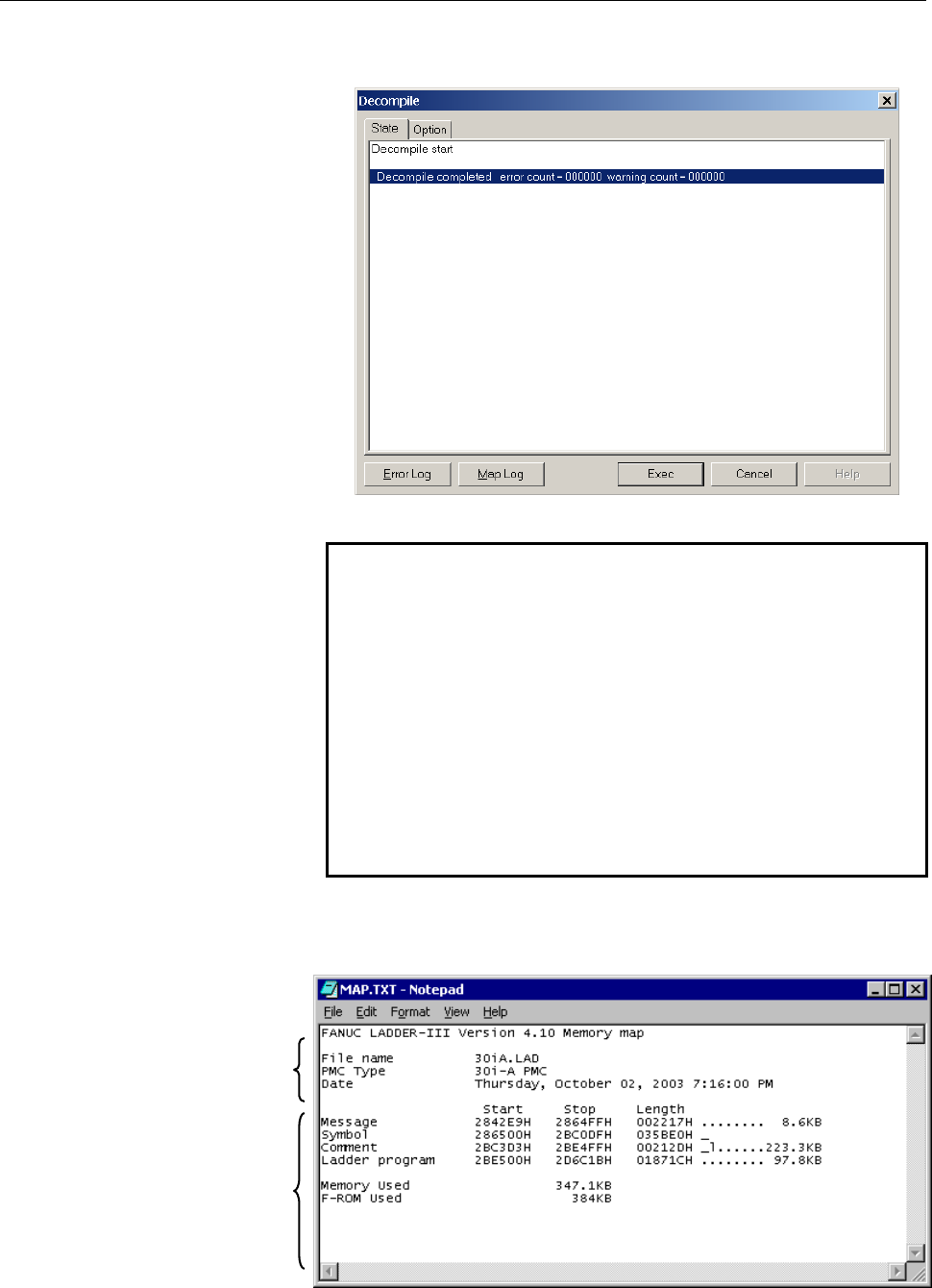

Fig. 5.2 (h)
NOTE
Password
The password to be entered differs depending on
the type of the password added to an object code.
• Only Password(Read)
→ Enter Password(Read) to permit display
• Only Password(Read/Write) or Password(Write)
→ Enter Password(Read/Write) or
Password(Write) to permit display and editing
• Both
→ Enter Password(Read/Write) or
Password(Write) to permit display and editing
5 <Map Log> button
Each data size of the object code is displayed by pushing the
<Map Log> button after processing of decompilation.
Fig. 5.2 (i)
Header information
Size information
Previous page
Next page
