Open CNC (Ladder Editing Package, Windows) Operators manual Page 547

Operators manual
FANUC OPEN CNC LADDER EDITING
PACKAGE (Windows) SUPPLEMENTARY
OPERATOR’S MANUAL
01 05/01/14 First issue B-63484EN/05-1
EDIT
DATE
DESIG.
DESCRIPTION
48/60
TITLE
DRAW.NO.
SHEET
CUST.
6. Transferring multi-language PMC message data to PMC
• Multi-language PMC message data can be loaded from PMC, and stored into PMC.
• Stored multi-language PMC message data can be written in F-ROM.
6.1. Loading multi-language PMC message from PMC
7.4 Loading multi-language PMC message from PMC
Load multi-language PMC message and write into a specified file. (PMC ->
Ladder Editing Package(Windows))
Supported PMC models
Supported
Series 30i/31i/32i-A PMC
Procedure
1. Connect to PMC (refer to 7.1 SETTING UP COMMUNICATION)
2.
Select [Tool] - [Load from PMC].

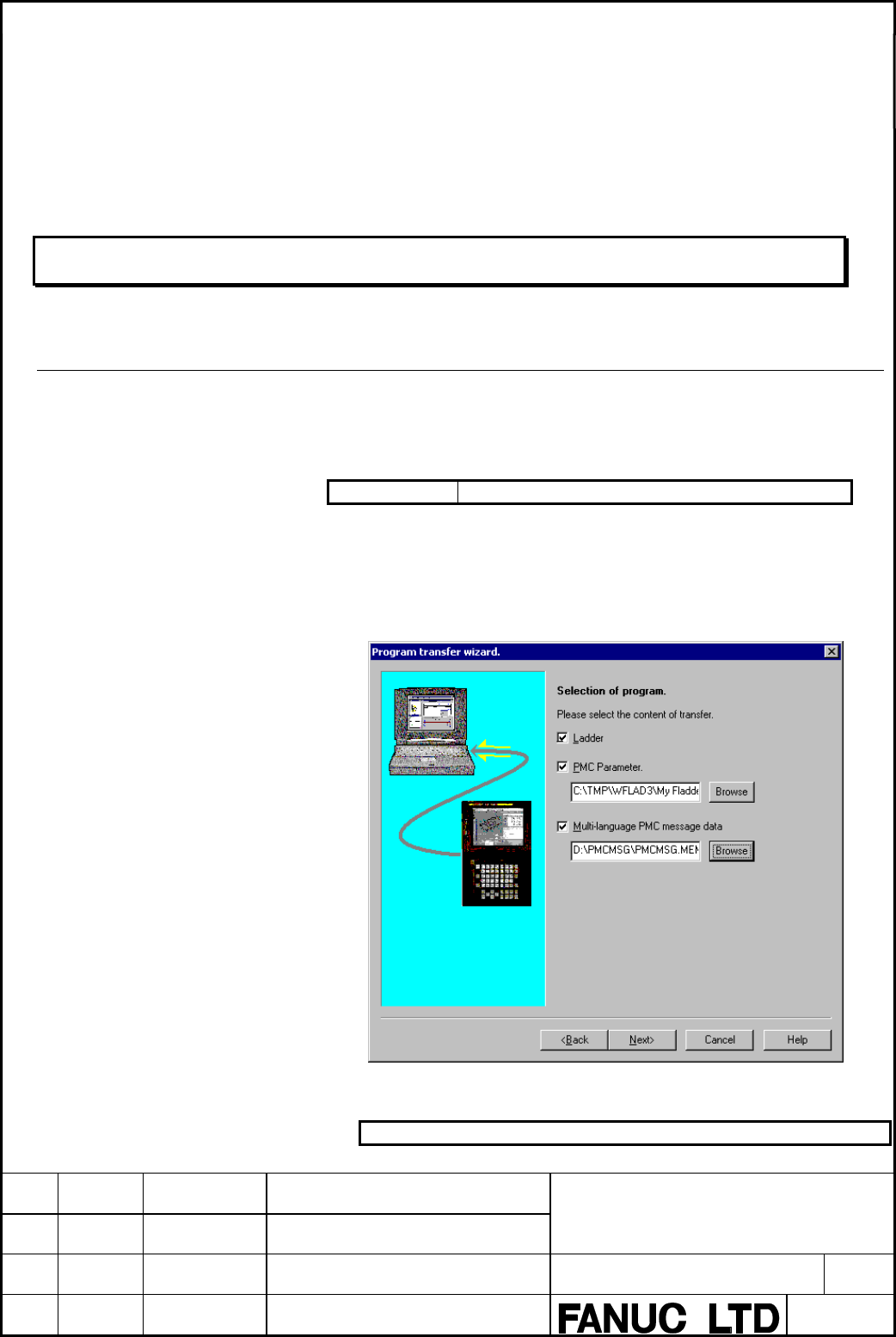

The [Program transfer wizard Selection of program] screen appears.
Fig.7.4(a)
Note
Insert after 7.3 LOADING SEQUENCE PROGRAMS FROM THE PMC
