B-63484EN/05 9.DIAGNOSIS

- 323 -

<3> Frame

The current setting of the number of sampling frames is

indicated.

<4> Trigger address

The current setting of the sampling stop trigger address is

indicated.

<5> Sampling trigger address

The current setting of the sampling trigger address is indicated.

9.10.4 Setting Trace Parameters

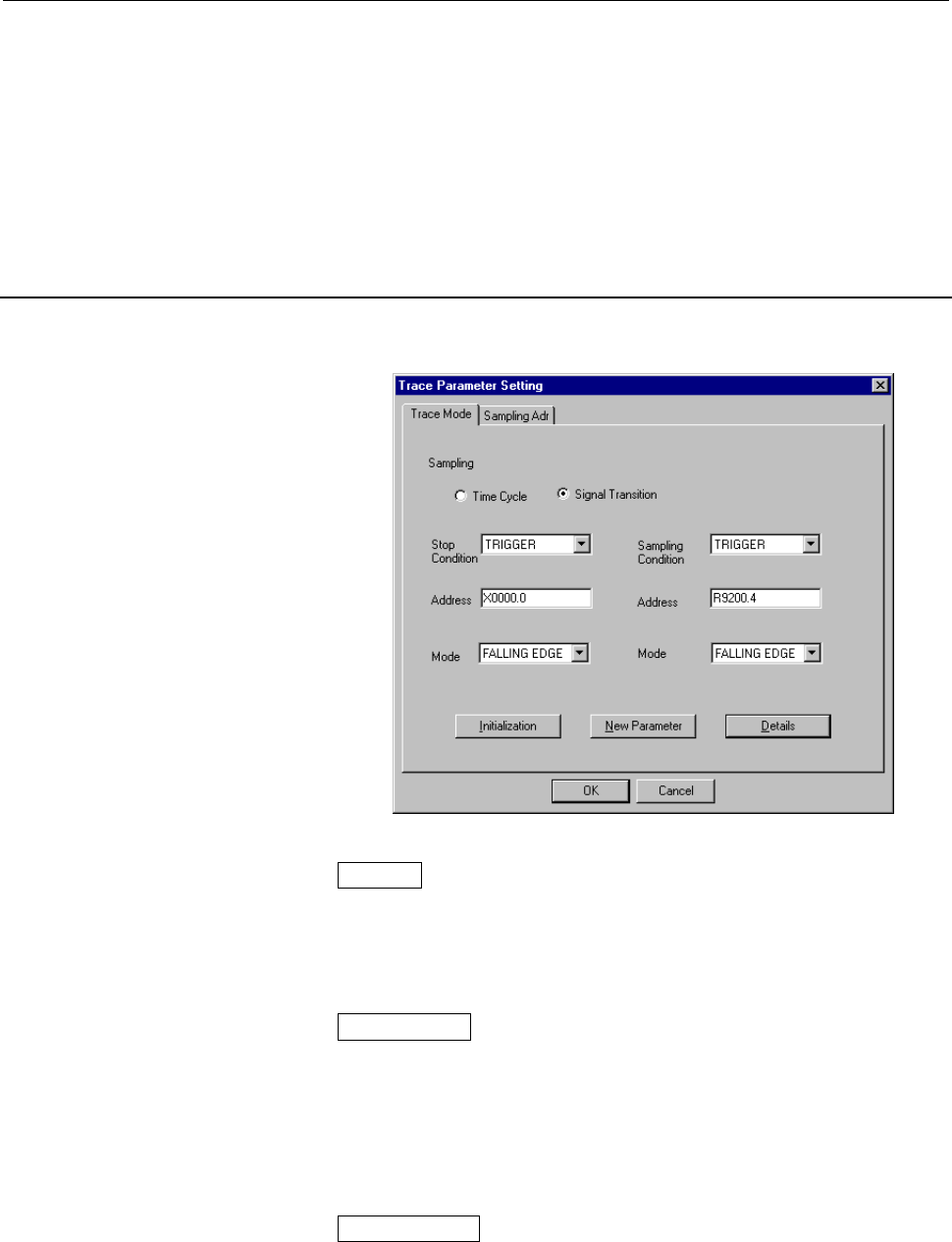

Clicking the <Parameter> button displays the [Trace Parameter

Setting] dialog box.

Fig. 9.10.4

Sampling

Set the sampling mode by clicking the corresponding radio

button.

Time Cycle : Samples data in cycles.

Signal Transition : Samples signal transition.

Stop Condition

Set a tracing stop condition by selecting it from the list in the

combo box.

None : Does not stop automatically.

BUFFER FULL : Automatically stops when the sampling buffer

becomes full.

TRIGGER : Automatically stops at a trigger.

Trigger Address

This item can be set when the tracing stop condition is

[TRIGGER]. Set the trigger address at which tracing stops.
