Example6) Converting single subprogram

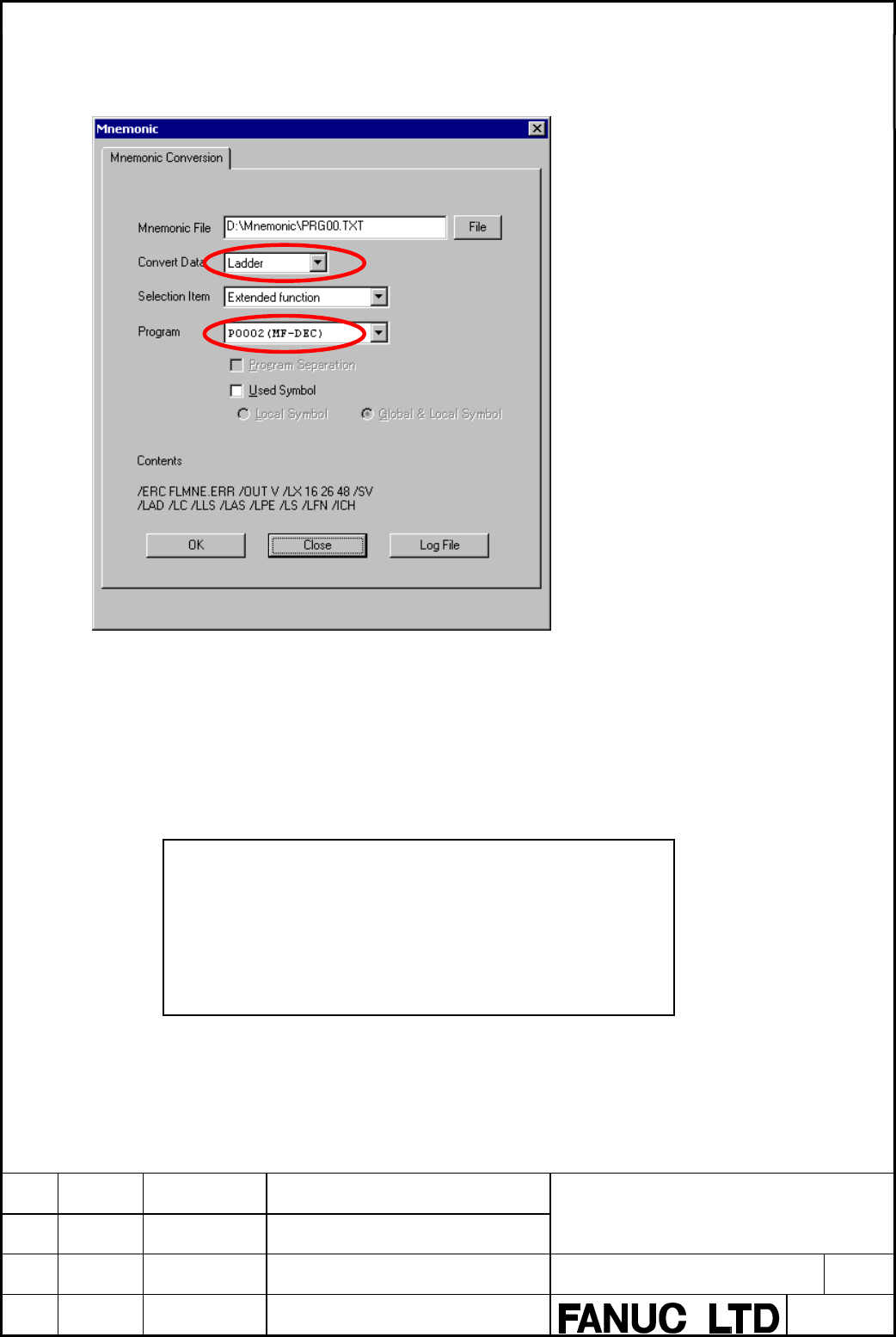

Fig 6.1(j)

Procedure

(1) Select “Ladder” from Convert Data.

(2) Select a subprogram to output in the "Program" combo box.

The selected subprogram is output to PRG00Pn.TXT.

%@3-D

SUBPR1 SP ;<P2 > "SUB PROG NO.02"

RD XADRS1 ;<X0.0 > "JUMPB LABEL L001"

JMPB LABEL1 ;<L1 > "LABEL L00001"

RD XADRS2 ;<X0.1 > "JMPC LABEL L001"

JMPC LABEL1 ;<L1 > "LABEL L00001"

LABEL1 LBL ;<L1 > "LABEL L00001"

SPE
