Open CNC (Ladder Editing Package, Windows) Operators manual Page 510

Operators manual
FANUC OPEN CNC LADDER EDITING
PACKAGE (Windows) SUPPLEMENTARY
OPERATOR’S MANUAL
01 05/01/14 First issue B-63484EN/05-1
EDIT
DATE
DESIG.
DESCRIPTION
11/60
TITLE
DRAW.NO.
SHEET
CUST.
3.3.12 Copying a ladder subprogram
The method of copying the ladder subprogram is described herein.
The ladder can be copied between program list windows by starting two or
more Ladder Editing Package(Windows).
As a result, the efficiency of the edit operation will improves because the
subprogram of a different PMC type can be easily used.
Supported PMC models
Supported
All
Procedure

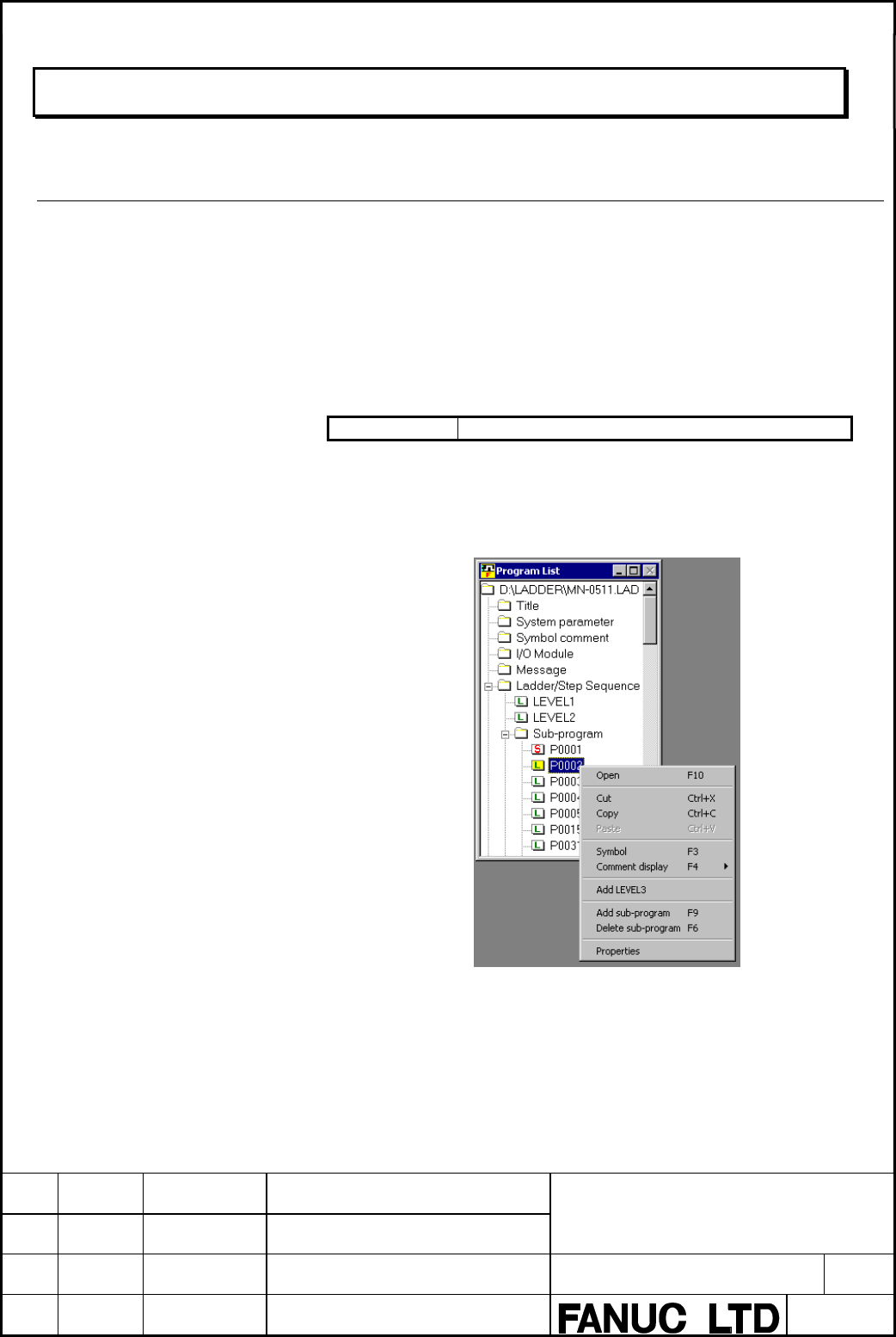

1. Move the mouse pointer on the subprogram which should be copied in
the program list screen, click the right button, and click [copy Ctrl+C].
Fig. 3.3.12(a)
Insert after “3.3.11 .Deleting ladder subprograms “
Previous page
Next page
