Stop Trigger Position
This item is displayed when the tracing stop condition is
[TRIGGER]. Specify where the time at which the stop trigger
condition is satisfied is placed during the entire sampling time (or
count) with the ratio of the time to the sampling time (or count).
Set the ratio according to the purpose. For example, to check the
signal changes before the trigger condition is satisfied, set a large
value; to check the signal changes after the trigger condition is
satisfied, set a small value.
Example
Graph display range when the sampling time is 10 sec and the
sampling position is 10%:
Trigger position
<-1 sec-> <---- 9 sec ---->
| | |
-1 0 9 (SEC)
OK
Stores the settings and closes the dialog box.
Cancel
Closes the dialog box without storing the settings.
9.10.6 Setting Trace Parameters (Sampling Addresses)
In the [Trace Parameter Setting] dialog box, clicking the [Sampling
Adr] tab displays the Sampling address setting screen.

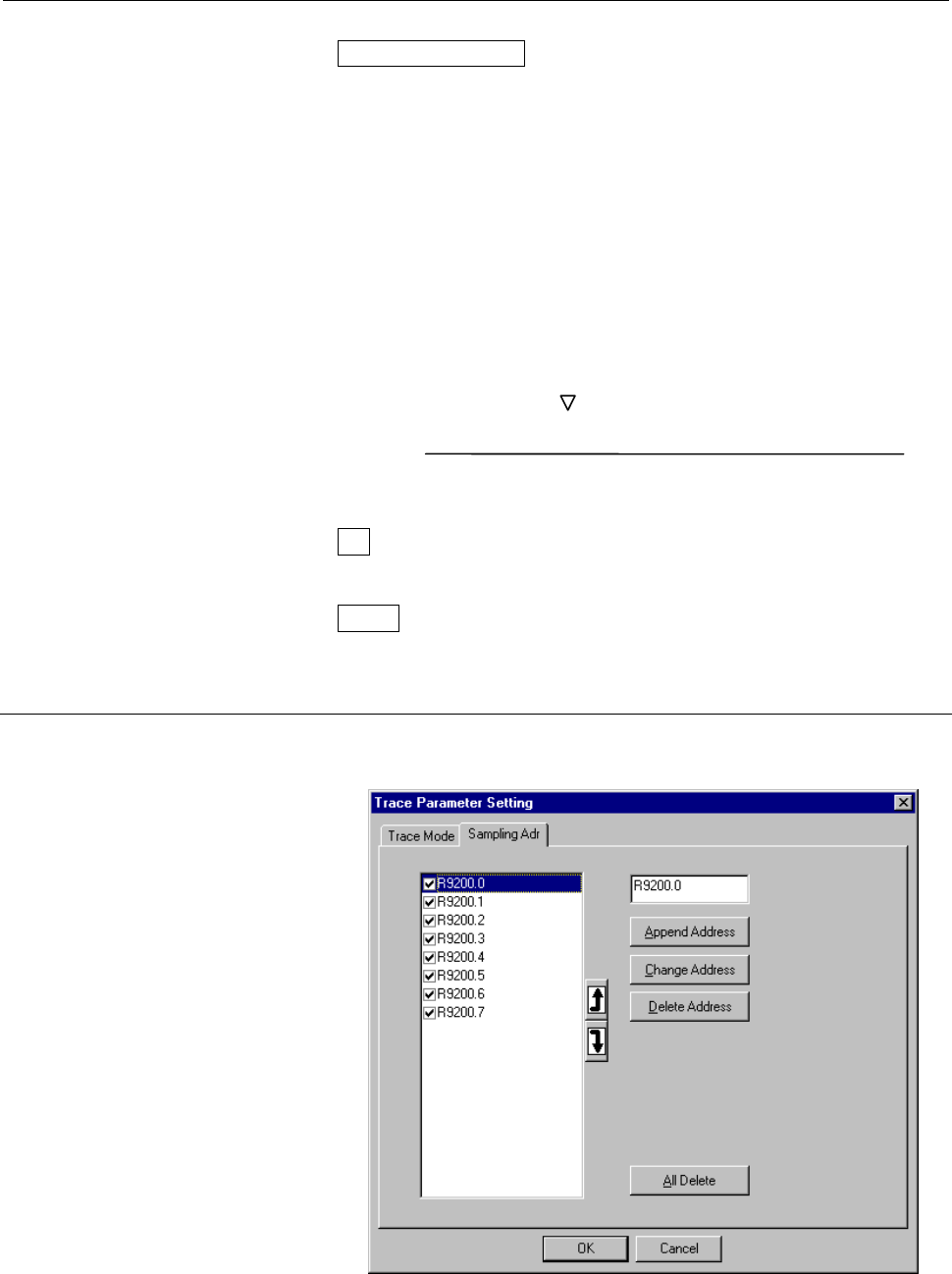

Fig. 9.10.6
