Open CNC (Ladder Editing Package, Windows) Operators manual Page 525

Operators manual
FANUC OPEN CNC LADDER EDITING
PACKAGE (Windows) SUPPLEMENTARY
OPERATOR’S MANUAL
01 05/01/14 First issue B-63484EN/05-1
EDIT
DATE
DESIG.
DESCRIPTION
26/60
TITLE
DRAW.NO.
SHEET
CUST.

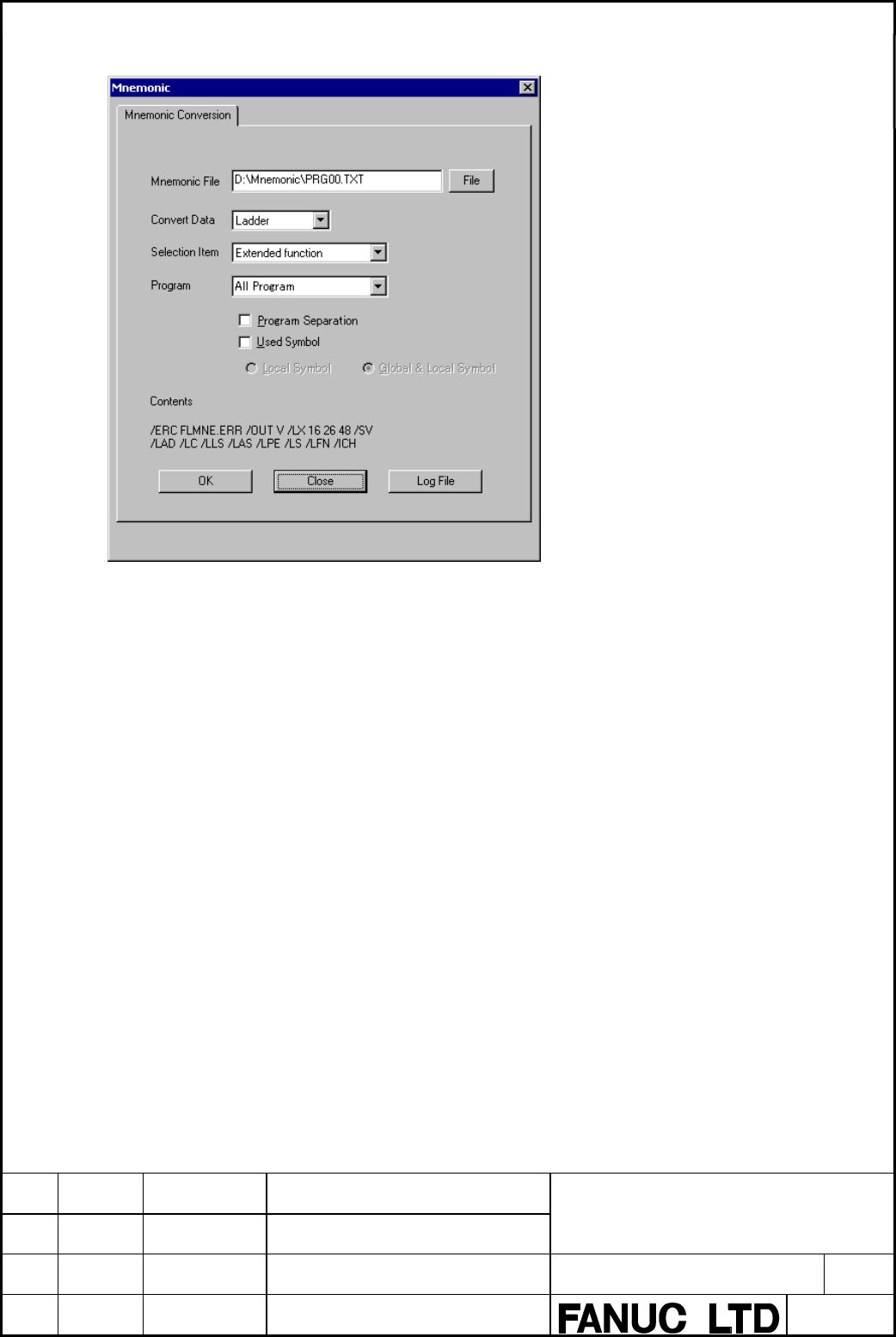

Fig 6.1(d) (Program separation)
9. [Used symbol]
This item is effective when program separation is checked.
When it is checked, symbols used in the selected program are converted together with ladder
program.
“Local symbol”, or “Global & Local symbol” can be selected in extended function.
10. To convert the source program to mnemonic file(s), click the <OK> button.
Once the conversion is completed, the conversion results appear.
(To see the last converted results, click the <Log file> button.)
