Open CNC (Ladder Editing Package, Windows) Operators manual Page 362

Operators manual
10.EXTENDED SYMBOL/COMMENT FUNCTION B-63484EN/05
- 334 -
10.2 EDITING SYMBOL AND COMMENT
• It is possible to display and edit Symbol and comment.
• It is possible to display the list of the registered symbol.
• It is possible to add, delete, change and search symbol.
• It is possible to create NULL symbol (only comment is defined
to address without symbol)
Procedure
1 Double-click the <Symbol comment> item on the [Program List]
screen.

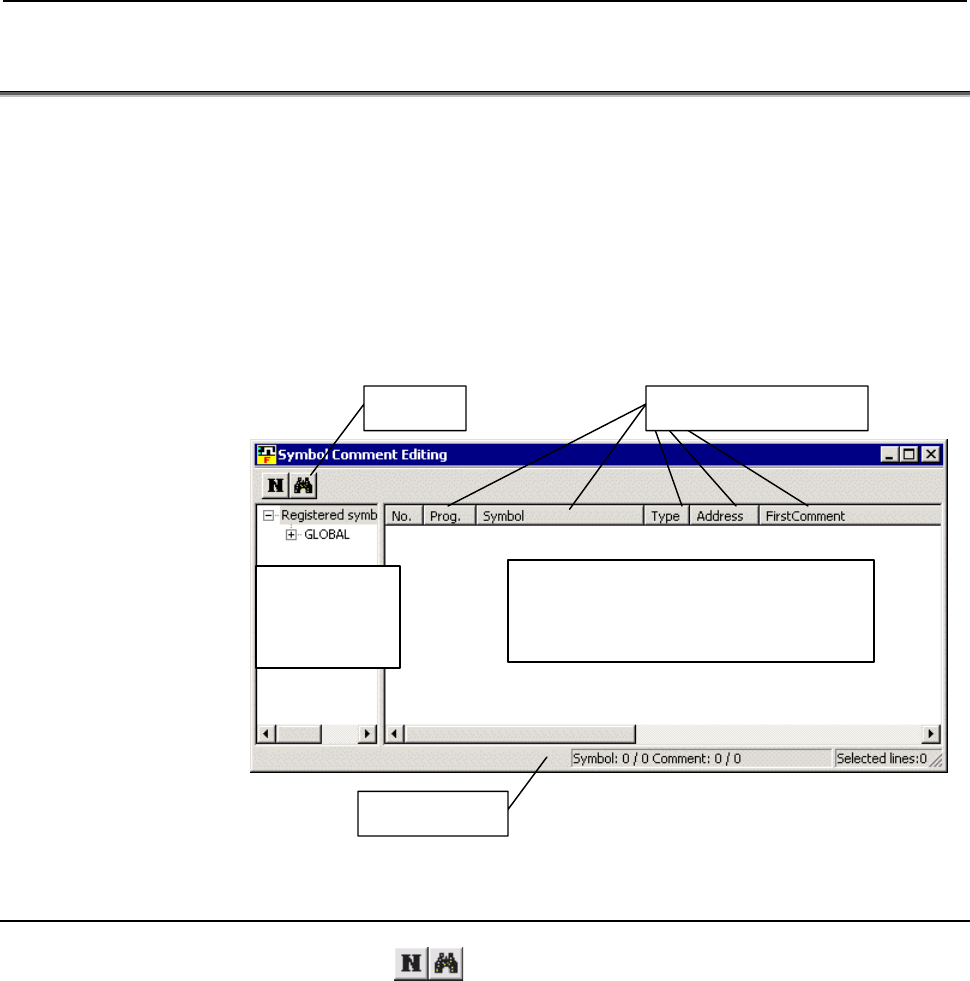

The [SYMBOL/COMMENT] screen appears.
Status bar
Symbol comment display window
Display
selection
window
Tool bar It rearranges by click.
Fig. 10.2
10.2.1 Toolbar
(1) (2)
Fig. 10.2.1
(1) <Add New Data> button
The [New Data] screen appears.
(2) <Search> button
The [Search] screen appears.
