4.PRINTING SEQUENCE PROGRAMS B-63484EN/05

- 192 -

4.10 SETTING UP COMMON OPTIONS

This section describes how to set up options common to all print

items.

4.10.1 Procedure

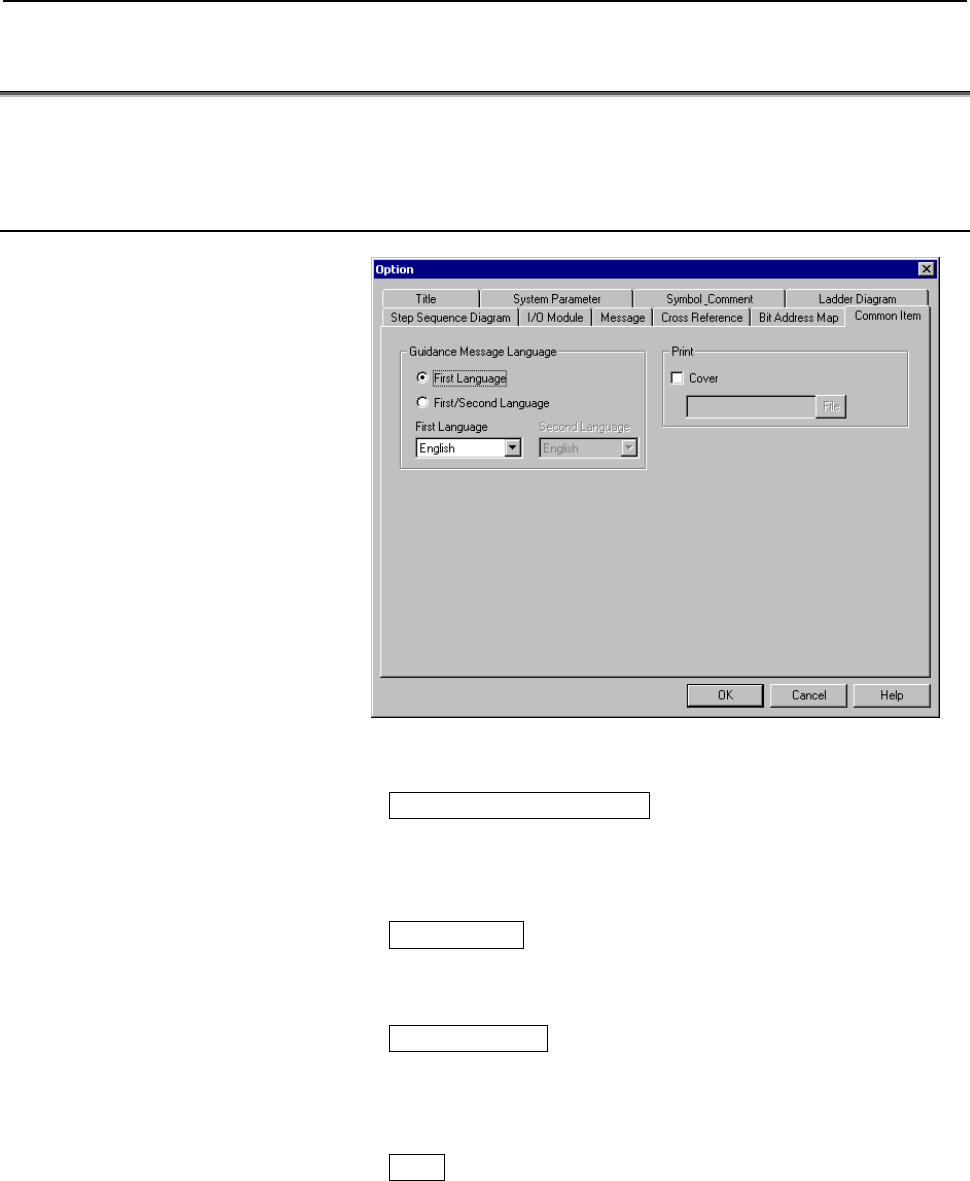

Fig. 4.10.1 (a)

1 Set up the following common options.

Guidance Message Language

Specify the language for guidance messages used when

titles and system parameters are printed.

(The Initially value is <First Language>.)

First Language

Specify a title for bit address map printing (the Initially

value is <English>).

Second Language

This item can be specified if <First/Second Language> is

selected for Guidance Message Language (the Initially

value is <English>).

Cover (Initially not selected.)

If this item is selected (the check mark is on), a meta file

can be specified for the cover.

2 To set up the print options, click the <OK> button.

To cancel the setup of the print options, click the <Cancel>

button.

The [Print] screen appears again.
