FANUC OPEN CNC LADDER EDITING

PACKAGE (Windows) SUPPLEMENTARY

OPERATOR’S MANUAL

01 05/01/14 First issue B-63484EN/05-1

EDIT

DATE

DESIG.

DESCRIPTION

19/60

TITLE

DRAW.NO.

SHEET

CUST.

Difference net count

Displaying the number of different nets when the content of the

subprogram is different.

The blank line is displayed when the subprogram exists in one side.

Displaying "*" when comparing ladder with step sequence.

<Setting...> [Difference Display - Setting] screen appears

Changes comparison condition (LAD file, mode…)

<Cancel> Discontinuing the comparison processing.

<Detail> Switch to the detailed display of the ladder diagram.

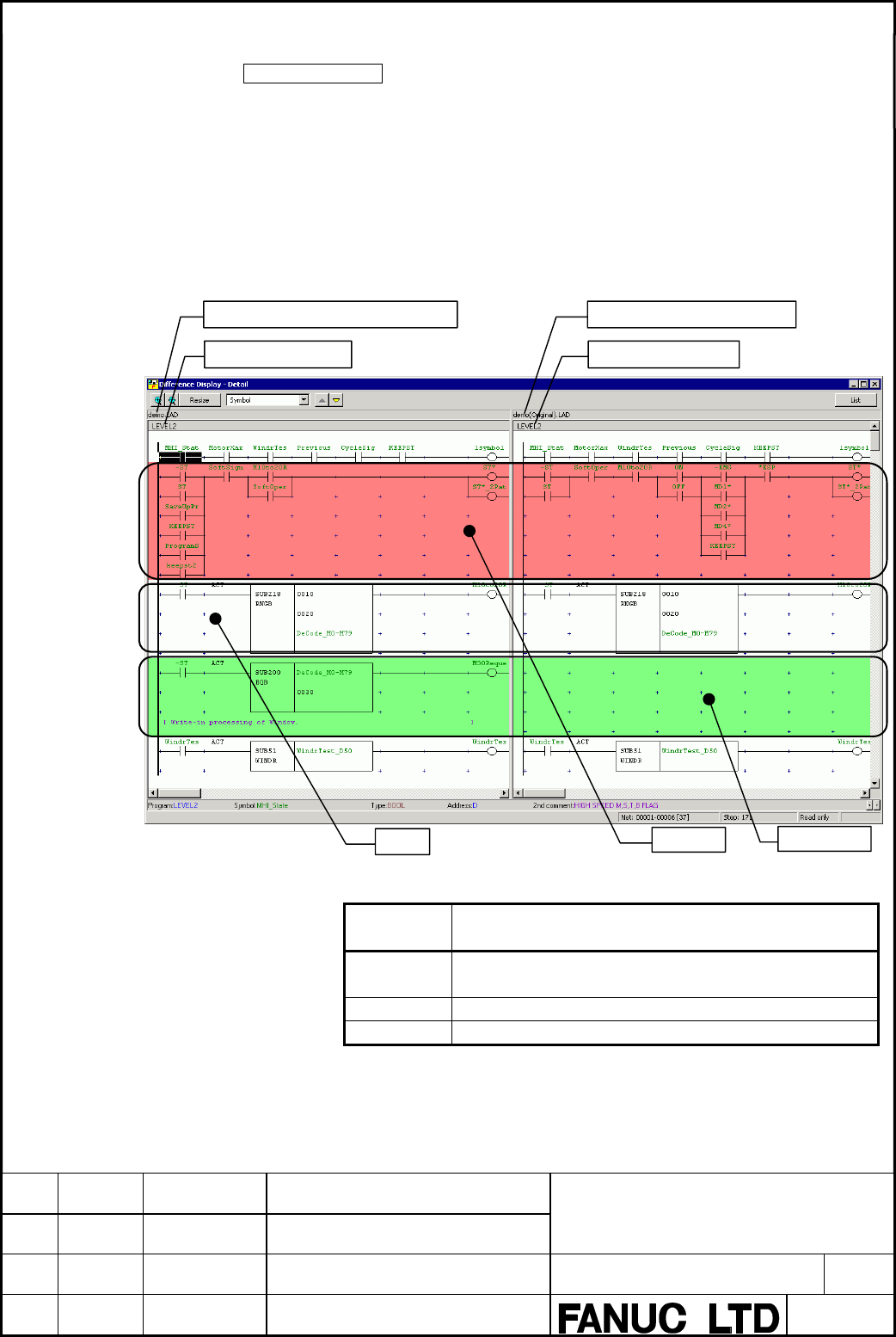

4. The [Difference Display - Detail] screen appears.

Fig. 3.13.1(e)

Display the comparison result in the following background color.

Background

color

Content of difference

White The same net (the same color as "Background" in ladder

diagram)

Light red There is different part in the net.

Light green The net that is added or deleted.

<List>

Switching to the list screen of the subprogram.

Subprogram name

Editing file: Source of comparison

Subprogram name

Destination of comparison

Light red

Light green

White
