Open CNC (Ladder Editing Package, Windows) Operators manual Page 185

Operators manual
B-63484EN/05 3.CREATING AND EDITING SEQUENCE PROGRAMS
- 157 -

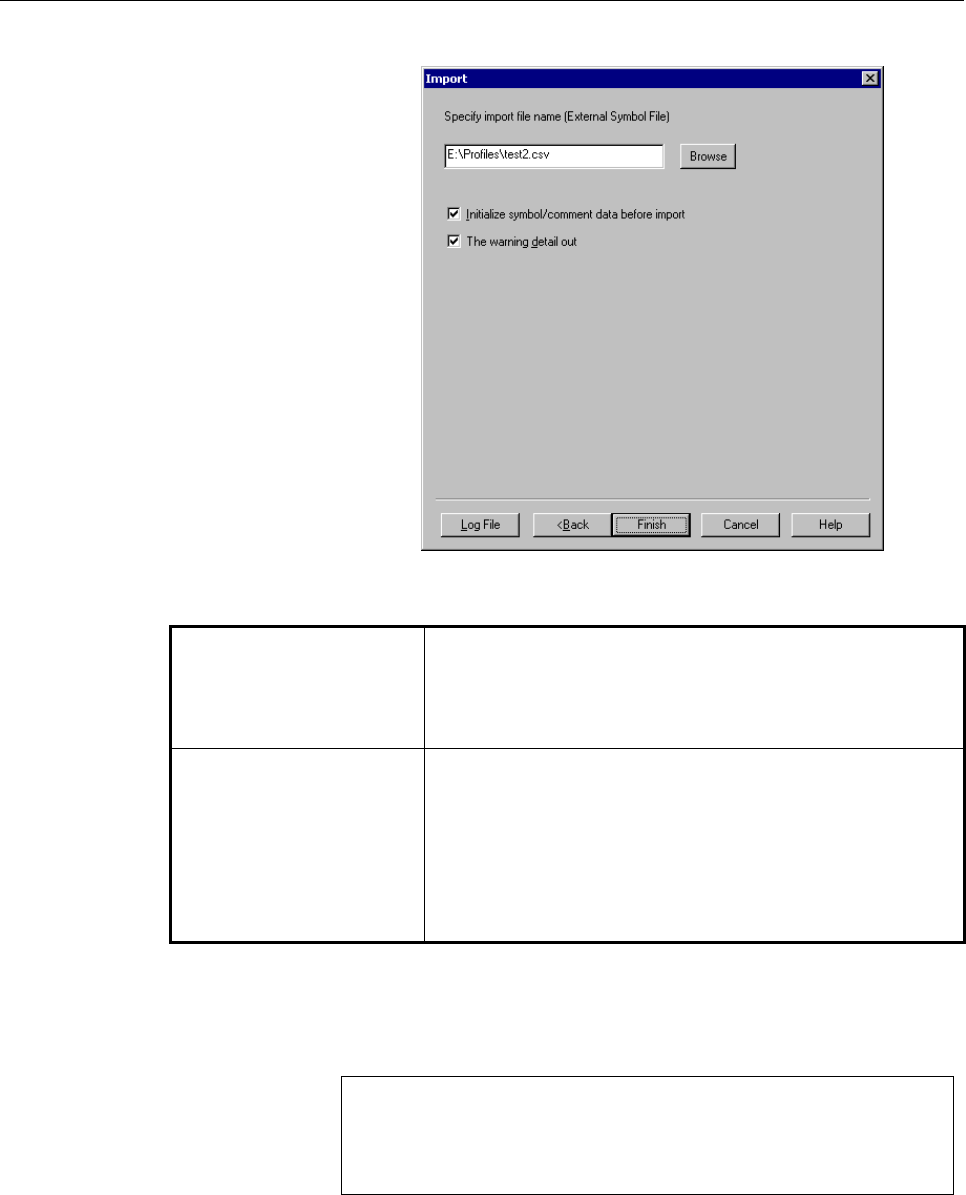

3 Enter the file name to import.
Fig. 3.10.2 (b)
4 Check the following item if necessary.
Initialize symbol/comment
data before import
Checked(Default) : After clearing all symbol comment data, the
symbol comment of the external symbol file
is read.
Not checked : The symbol comment data of the external
symbol file is added.
The warning detail out
Checked(Default) : If warning occurs during the import, the
message of warning will be written to the log
file.
Not checked : If warning occurs during the import, the
message and the count of warning will be
written to the log file.
Target warning numbers:
K:W-4131, K:W-4133, K:W-4138, K:W-4139
5 Push the <Finish> button.
Execution result
Example of Log file.
##### Conversion of External Symbol File #####
Conversion completed Error count = 00000 Warning count = 00000
##### SYMBOL & COMMENT #####
Conversion completed Error count = 00000 Warning count = 00000
Fig. 3.10.2 (c)
