Open CNC (Ladder Editing Package, Windows) Operators manual Page 408

Operators manual
11.CONVERTING SEQUENCE PROGRAMS B-63484EN/05
- 380 -
11.2 CONVERTING TO DOS-VERSION FANUC LADDER-II
This section describes how to convert Windows-version sequence
programs to the DOS version.
11.2.1 Procedure
1 Select [Tool] – [Data Conversion.]
2 On the pull-down menu, select [Data File ← LAD File].

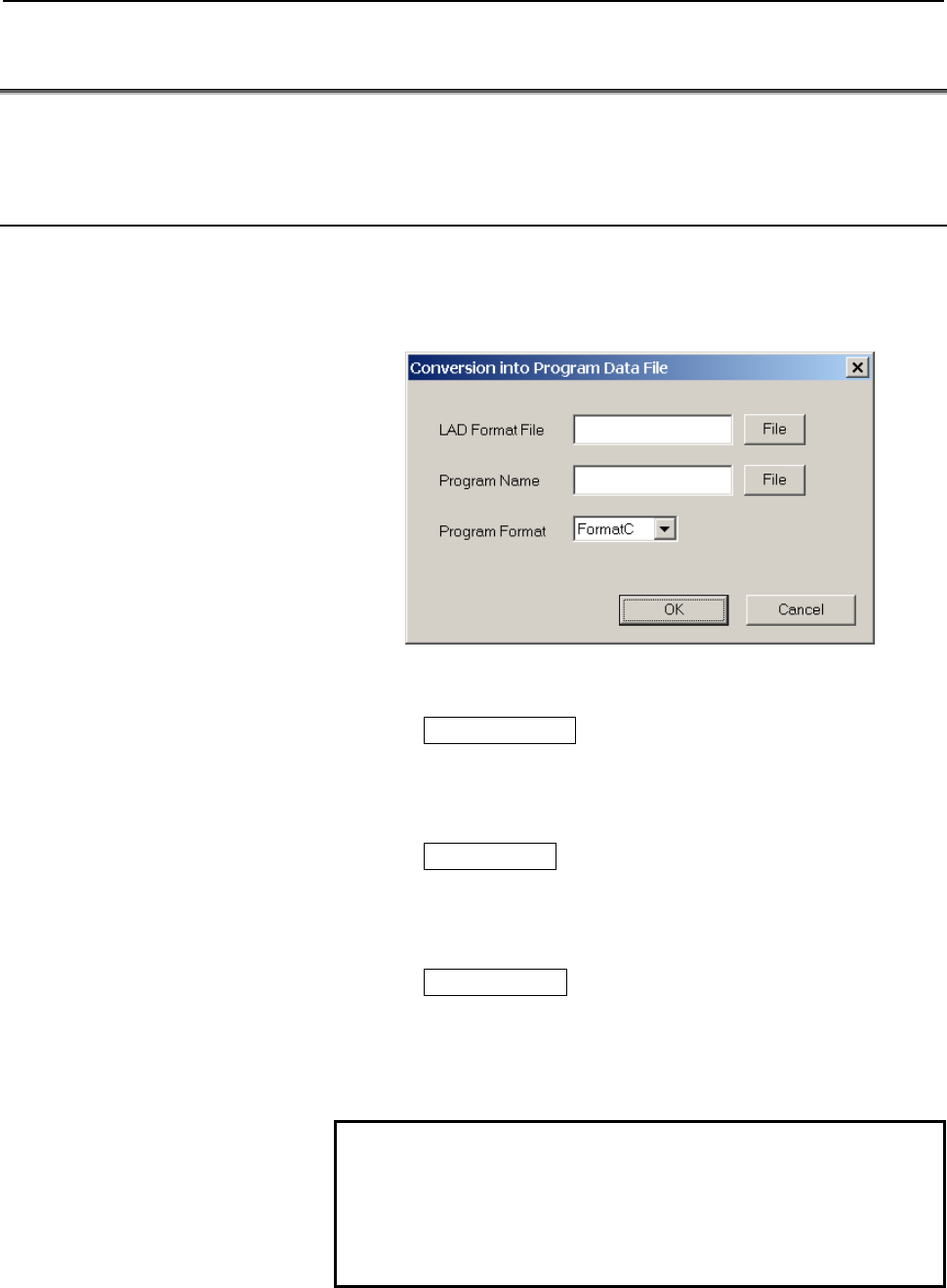

The [Conversion into Program Data File] screen appears.
Fig. 11.2.1
2-1 Input the required data.
LAD Format File
Enter the name of the Windows-version sequence
program you want to convert. Use the extension .LAD.
You can omit the extension, however.
Program Name
Enter the name (folder name) of the DOS-version
sequence program you want to create by the
conversion.
Program Format
Select format A, B, or C.
3 To convert, click the <OK> button.
To abandon the conversion, click the <Cancel> button.
NOTE
1 For conversion to FANUC LADDER-II sequence
programs, select FormatC for Program Format.
2 Any sequence program on the PMC-SB7 cannot be
converted to a sequence program of FANUC
LADDER-II.
