Open CNC (Ladder Editing Package, Windows) Operators manual Page 279

Operators manual
B-63484EN/05 7.INPUT/OUTPUT
- 251 -
7.1.2 Setting Options
The [Option] dialog box can also be used to make communication
settings.
1 Select [Option] on the [Tool] menu.
2 Select the [Setting] tab.

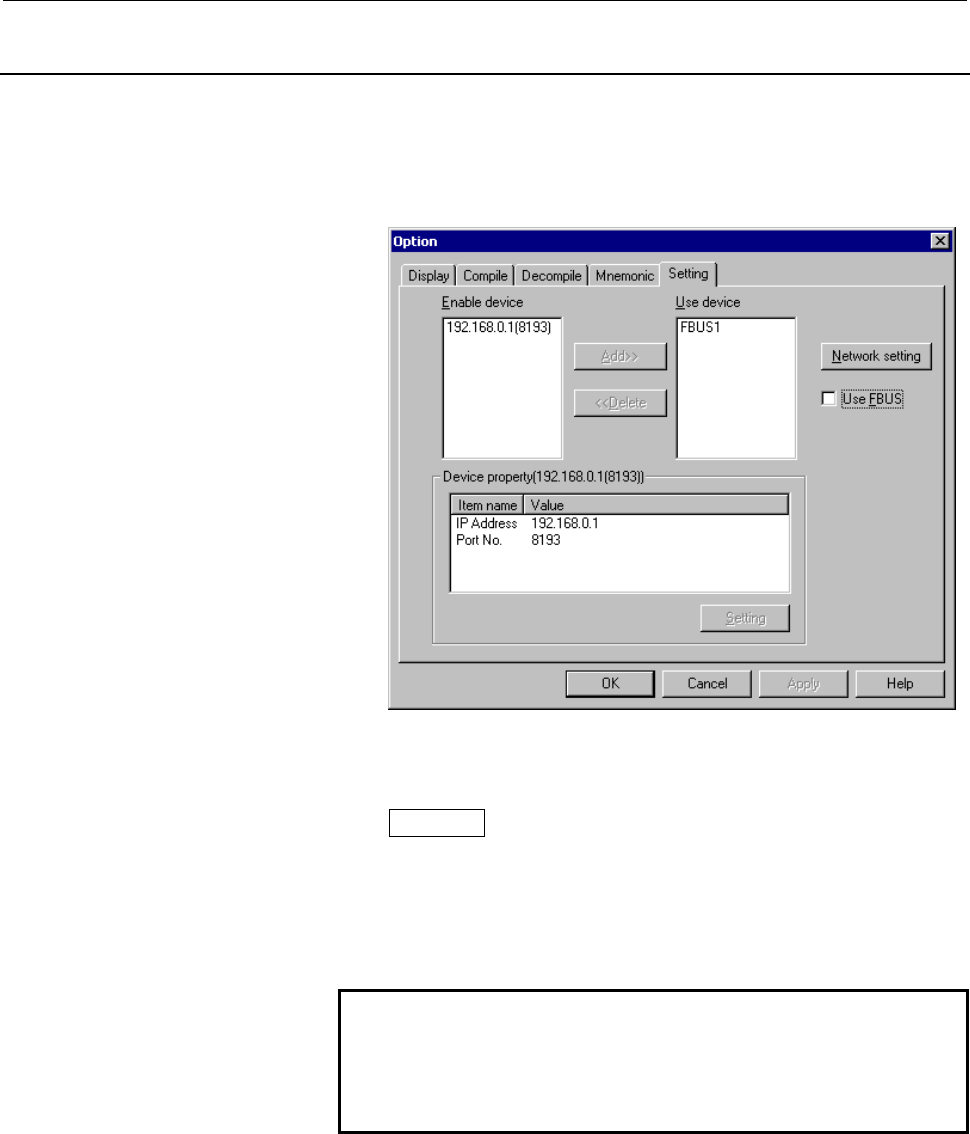

Fig.7.1.2
3 Click the <Network setting> button to make network settings.
Use FBUS
When using the expansion driver/library to communicate
through a high-speed serial bus, check this option. When
using only Ethernet together with Ladder Editing Package
(Windows), uncheck this option. (Initially, this checkbox is
checked.)
NOTE
When the expansion driver/library is not installed, if
the [Use FBUS] checkbox is checked, an error may
occur. For details on the expansion driver/library,
see Section 1.1, "OPERATING ENVIRONMENT."
