3.1.5 Device Selection

Selection of CNC Main and LOADER

When the Loader control board is attached and both the Main side and

the Loader side PMC can communicate, the following dialog is

displayed.

Please specify the connected controller. When current controller is

changed, the communication with PMC is executed again.

Procedure

1 If the loader has been installed, the following dialog box

automatically appears at the start of communication.

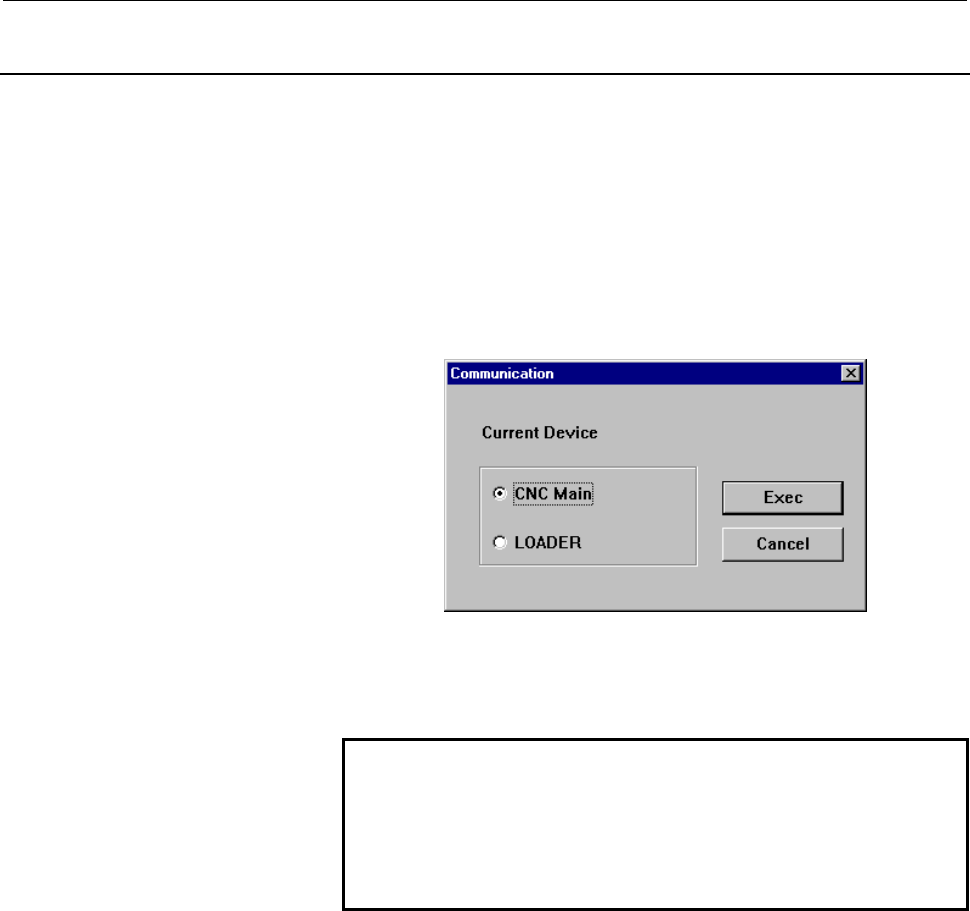

Fig. 3.1.5 (a)

2 Select the device you want to connect using the [↑] and [↓] keys.

3 Click the <Exec> button.

NOTE

Selected connection is effective until the

communication is disconnected. To change

connection, please disconnect the communication

and reestablish the communication from the

communication in tool menu again.
