Transition

A transition represents a condition under which transition occurs from

one step to another.

• There must be only one transition between steps.

• The transition of processing from one step to another is carried

out as described below:

• When a signal becomes on in a transition, its state is held even

after state transition occurs. So, if you do not want to maintain

the state, you must turn off the signal, using another subprogram.

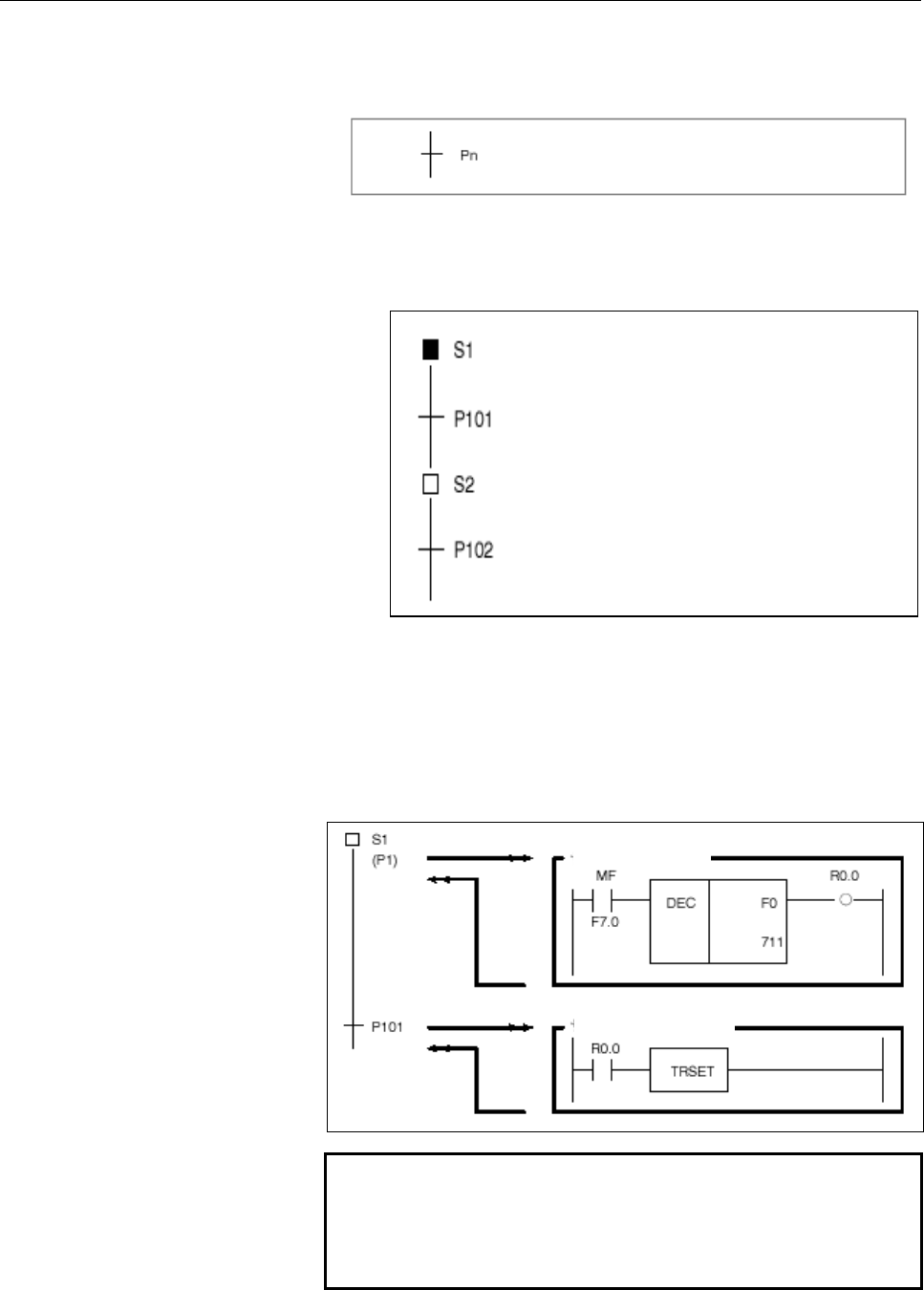

[Example of setting transition conditions]

In this example, after an M7 code is decoded using the DEC

function instruction, control is passed to the next step.

NOTE

The TRSET function instruction is intended to

describe that a transition condition is satisfied. It is

used in a subprogram that is called from the

transition.

When S1 is running, only S1 and P101 are

processed. The other steps or transitions are not

executed. Even if P102 is satisfied, it is invalid

unless S2 is running.

Transition from S1 to S2 can occur if P101 is

satisfied. When P101 is satisfied, S1 ends

regardless of the state of S1, allowing S2 to start.

Subprogram P1

Subprogram P101
