3.CREATING AND EDITING SEQUENCE PROGRAMS B-63484EN/05

- 156 -

NOTE

When you can select from among multiple

compatible PMC types, decompilation may not

terminate normally, depending on the PMC type

you specify. In this case, specify another

compatible PMC type.

3.10.2 Import of the External Symbol File

This function inputs the symbol/comment of external symbol file

format. External symbol files are composed of identification code and

the comma separated text file. You can read symbol information from

the file made by the external application such as Microsoft Excel, Text

editor, and electric CAD system etc.

Supported PMC models

Supported

30i/31i/32i-A Extended function

30i/31i/32i-A

Operation

1. Select [File]-[Import...]. Then, the [Import] dialog appears.

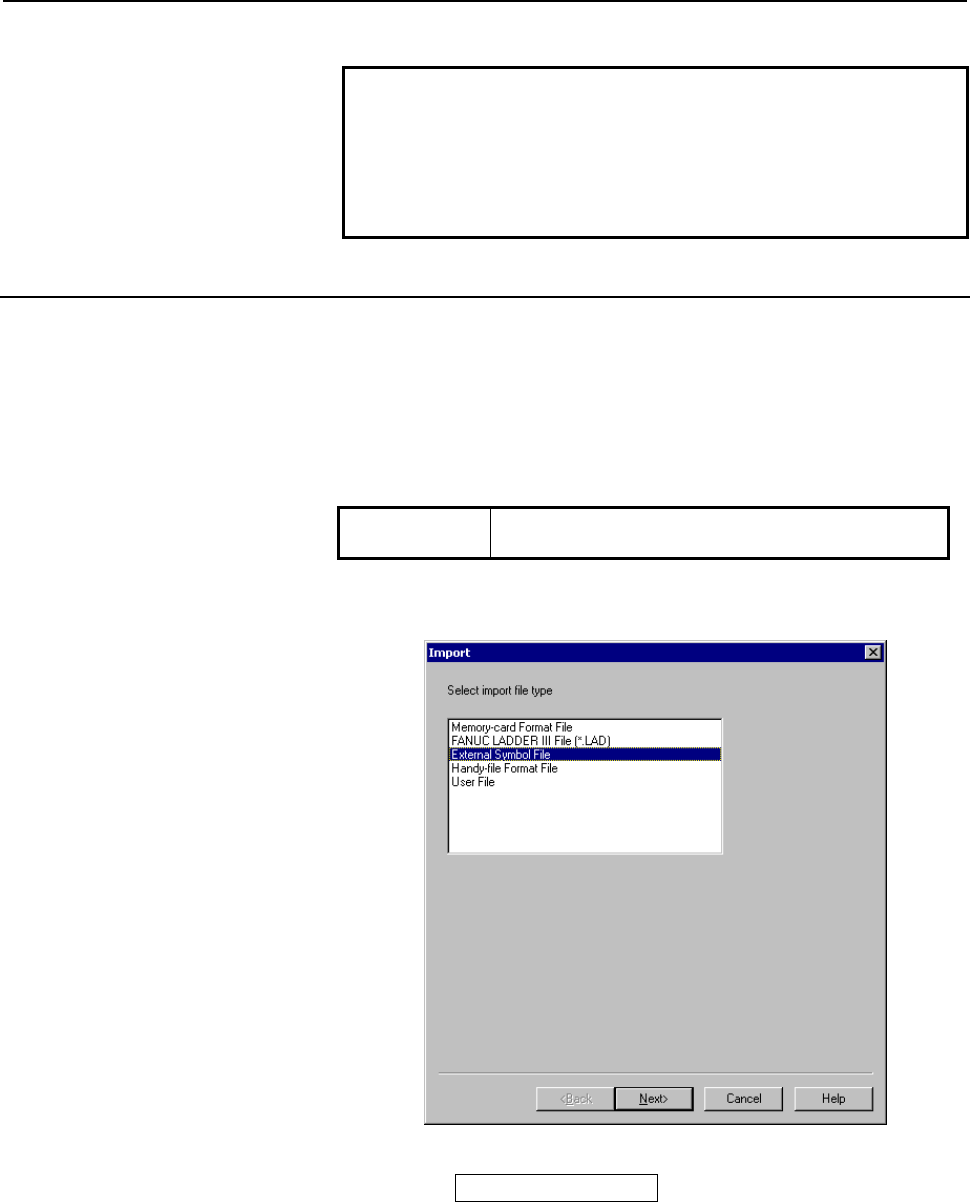

Fig. 3.10.2 (a) Import dialog

2 Select External Symbol File from the list, push the <Next>

button.
