FANUC OPEN CNC LADDER EDITING

PACKAGE (Windows) SUPPLEMENTARY

OPERATOR’S MANUAL

01 05/01/14 First issue B-63484EN/05-1

EDIT

DATE

DESIG.

DESCRIPTION

23/60

TITLE

DRAW.NO.

SHEET

CUST.

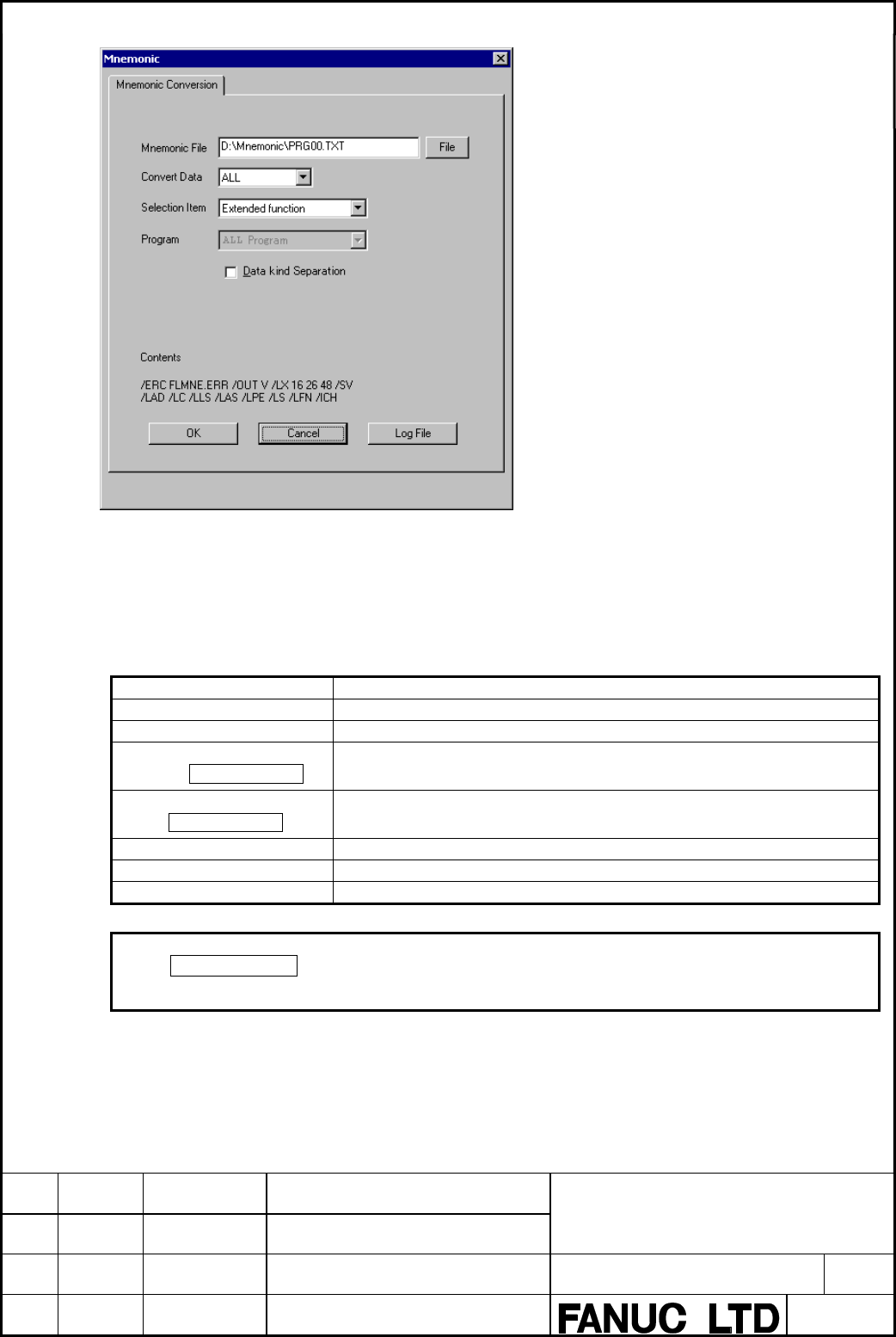

Fig 6.1(a)

2. Enter a mnemonic file name in [Mnemonic File].

3. Select the [Convert Data]. The following items can be selected.

Table 6.1(a)

ALL Converts all data in the source program.

System Parameter Converts only system parameters.

Title Converts only the title data.

Symbol&Comment

No check External Symbol

Converts only the data of symbols and comments into the normal symbol file

format.

Symbol&Comment

Check External Symbol

Converts only the data of symbols and comments into the external symbol file

format.

Ladder Converts only ladder programs.

I/O Module Converts only I/O module data.

Message Converts only message data.

Note

The External Symbol is displayed if the external symbol file output function is supported.
