Open CNC (Ladder Editing Package, Windows) Operators manual Page 283

Operators manual
B-63484EN/05 7.INPUT/OUTPUT
- 255 -
The PMC model of LAD file can be changed, when on-line
connection to the same type is completed.
Table 7.2.1
Compatible PMC
Ladder Type
30
i
-A 31
i
-A 32
i
-A
1st
30
i
-A PMC 31
i
-A PMC 32
i
-A PMC
2nd
30
i
-A PMC(2nd) 31
i
-A PMC(2nd) 32
i
-A PMC(2nd)
3rd
30
i
-A PMC(3rd) 31
i
-A PMC(3rd) 32
i
-A PMC(3rd)
DCS
30
i
-A PMC(DCS) 31
i
-A PMC(DCS) 32
i
-A PMC(DCS)
1st, EXT
30
i
-A PMC(EXT) 31
i
-A PMC(EXT) 32
i
-A PMC(EXT)
2nd, EXT
30
i
-A PMC(2nd,EXT) 31
i
-A PMC(2nd,EXT) 32
i
-A PMC(2nd,EXT)
3rd, EXT
30
i
-A PMC(3rd,EXT) 31
i
-A PMC(3rd,EXT) 32
i
-A PMC(3rd,EXT)
DCS, EXT
30
i
-A PMC(DCS,EXT) 31
i
-A PMC(DCS,EXT) 32
i
-A PMC(DCS,EXT)
: Compatible memory card form file
Model
1 Open the ladder program.
2 Select [Tool]-[Communication...]. Then, the [Communication]
dialog appears.
3 Confirm the setting and click the <Connect> button.
4 Click the <Close> button if the connection is completed.

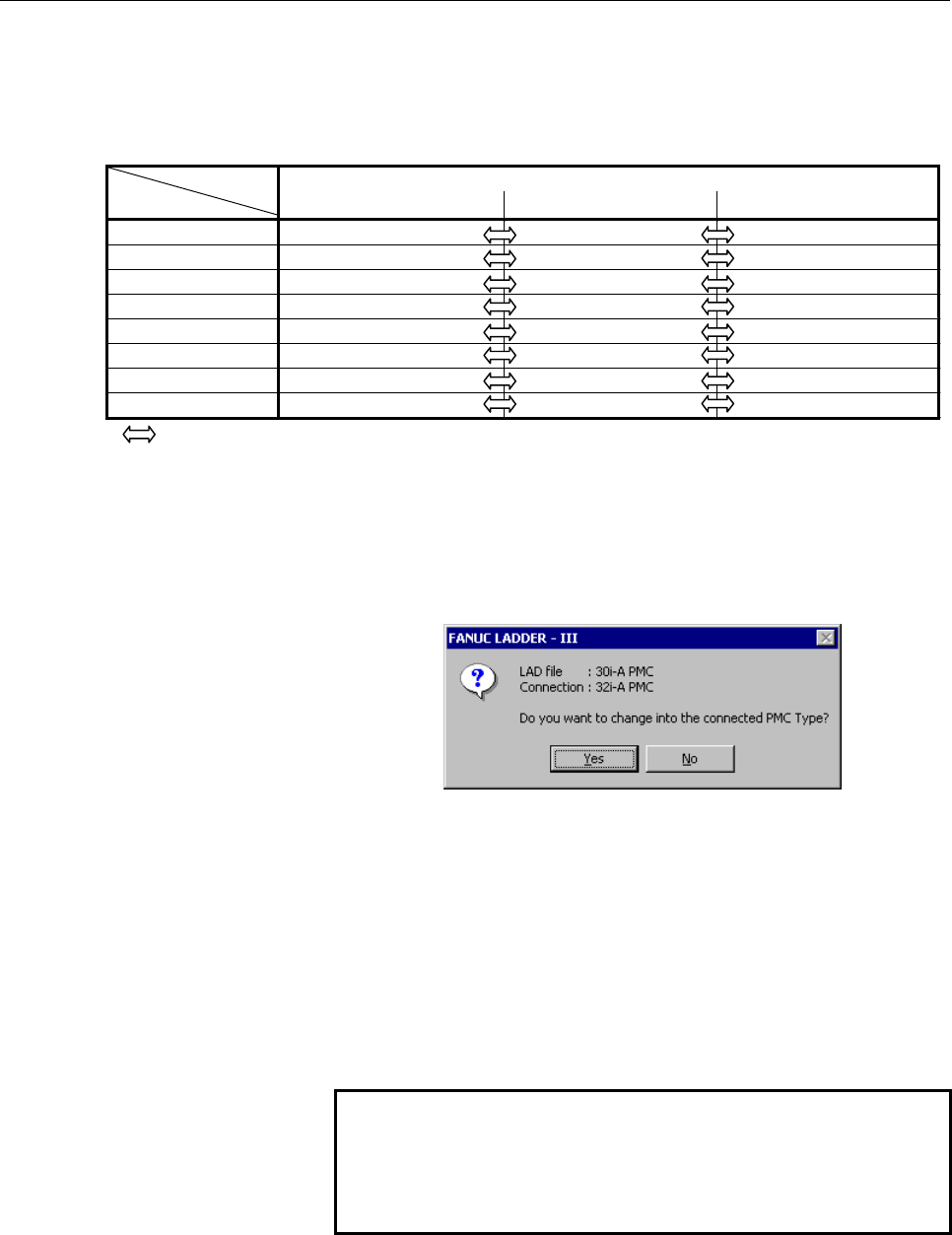

Compatible PMC displays the following screen.
Fig. 7.2.1 (g)
If the <Yes> button is clicked, the model of LAD file is changed.
In the case of the above-mentioned example, the LAD file is
changed into 32i-A.
If the <No> button is clicked, the model of LAD file is not
changed.
If the PMC model is not changed, you cannot operate the
on-line ladder edit after connection. Switch programmer
mode to on-line and off-line to operate on-line ladder edit.
Then, change the model of LAD file.
NOTE
The sequence program for Series 30i-A can be
executed in Series 31i/32i-A without conversion.
But, do not execute the PMC sequence program in
other CNC without debugging.
