15. PMC CONTROL FUNCTION
B–64113EN–1/01
1064
NOTE
1 For the small keyboard, 0EDH is assigned to .
For the standard keyboard, 0EDH is assigned to .
0EEH is assigned to .
2 Handling of the soft keys
[F0] to [F9], [FR], and [FL] in the key code table are the key
codes for the soft keys. They are associated with the MDI
keys as shown below.

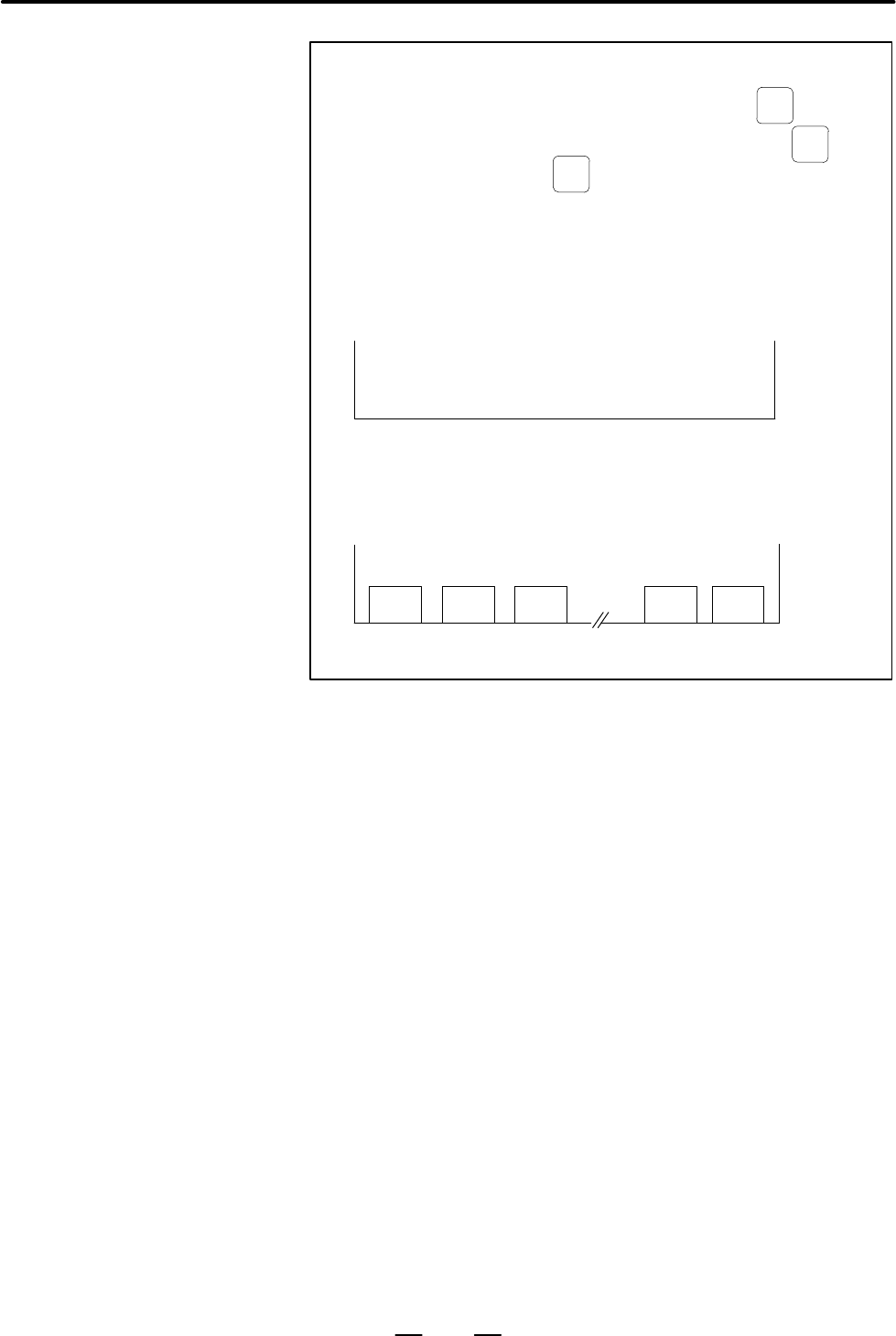

Key configuration for 7–soft key type LCD, or etc. : 5 keys
+ 2 keys ([F0] to [F4] and [FR], [FL])
[FL] [F4] [F3] [F2] [F1] [F0] [FR]
Key configuration for 12–soft key type LCD, or etc.: 10 keys
+ 2 keys ([F0] to [F9] and [FR], [FL])
[FL] [F9] [F8] [F7] ⋅⋅⋅ [F1] [F0] [FR]
[ ][][][][]
GRAPH
GRAPH
CUSTOM
CUSTOM
