S Input ”–1” for both YES and NO in case of the end of a diagnosis.
(d)Notes
It is possible to write some notes here.
S [Check] button
When [Check] button is pushed, a range of number, a number of
characters and invalid character codes are checked.
If the result is OK, a string of the cell under the button is changed from
”Unchecked” to ”OK”. If the result is NG, the string is changed to
”NG”. And the cell color becomes green. And a comment, which can
display the cause of error, is added to the cell.

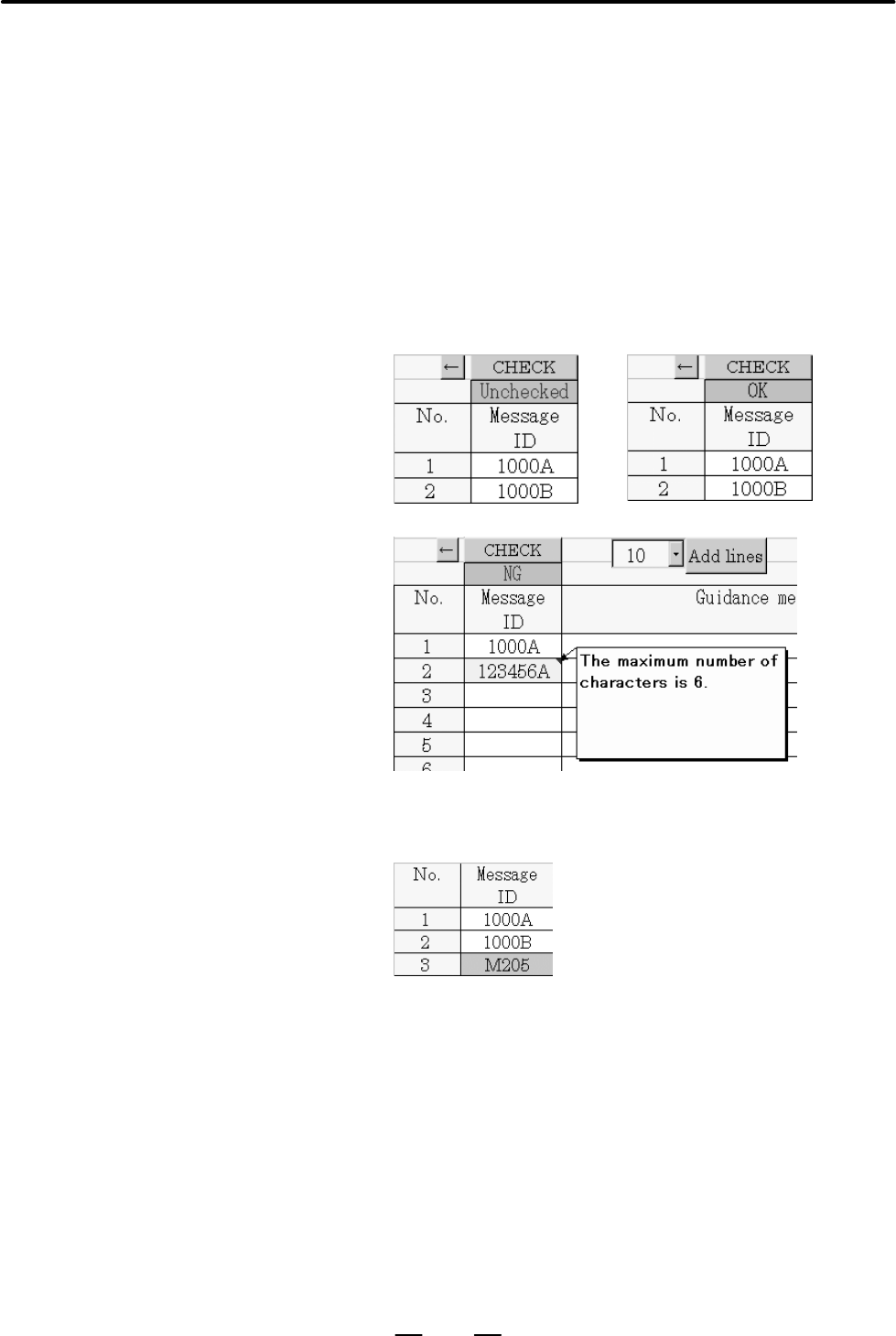

Ex.)
And when a message ID starting with ”M” is found the cell color
becomes sky blue.
Ex.)
S [Add lines] button
Please push [Add lines] button in order to increase the number of the
guidance messages.
The number is specified in a cell on the left side of the button.
S [<] button
When [<] button is pushed, the guidance table (1) is displayed.
Operation of buttons
